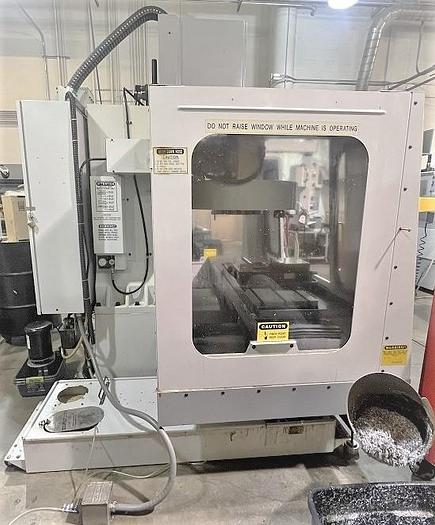

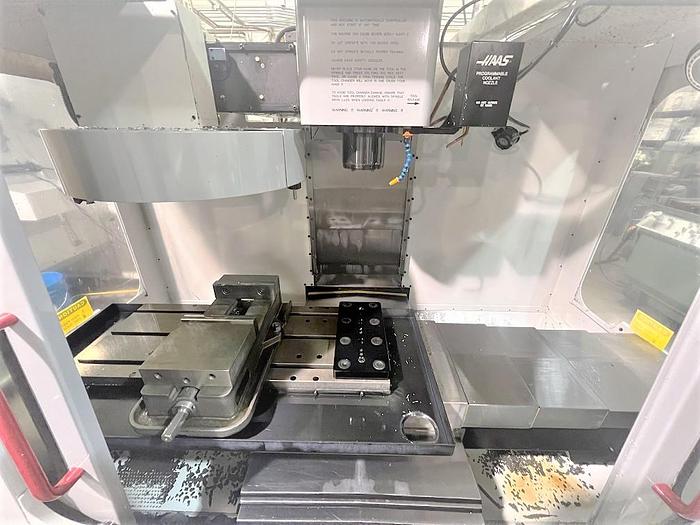

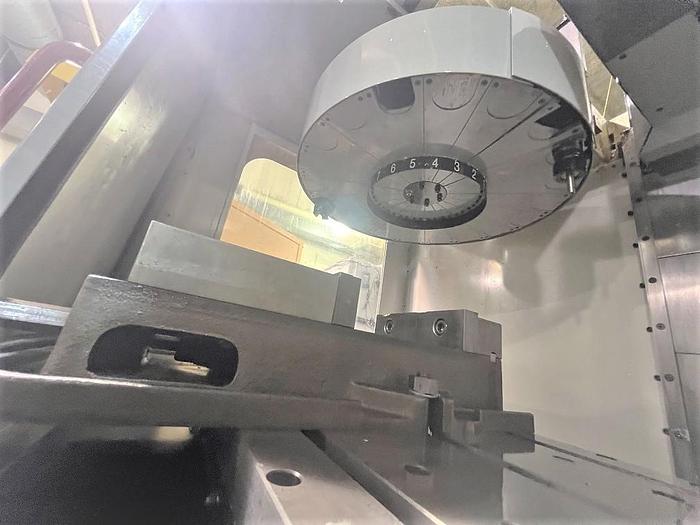

1999 Haas VF-2B
1999 Haas VF-2B
Contact us for price
Washington, DC
orCall (863) 439-6066
Description
Prewired for a 4th Axis - Brush Type
Haas Renishaw Probing System
Auger Style Chip Conveyor
Programmable Coolant Nozzle
1 MB Program Memory
Visual Quick Code Programming
Spindle Orientation
Coordinate Rotation & Scaling
2 Speed Gearbox
RS232 Port Interface
Flood Coolant
Coolant Tank with Pump
All Available Manuals
**Coming out of a tech school, very little use, very nice condition**

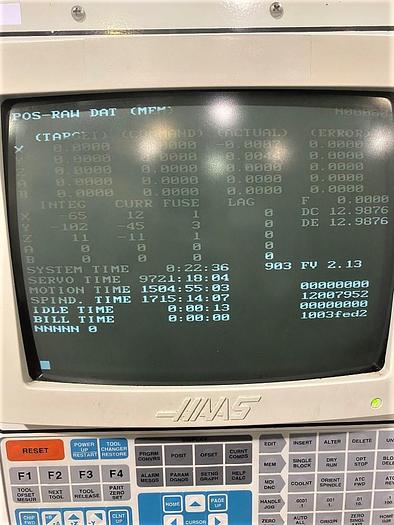

**Servo On Hours 9,721**
**Axis Motion Hours 1,504**
**Spindle Run Hours 1,715**
Specifications
| Manufacturer | Haas |
| Model | VF-2B |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118749 |
| Table Size | 36" x 14" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 RPM - 2 Speed Gearbox |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
