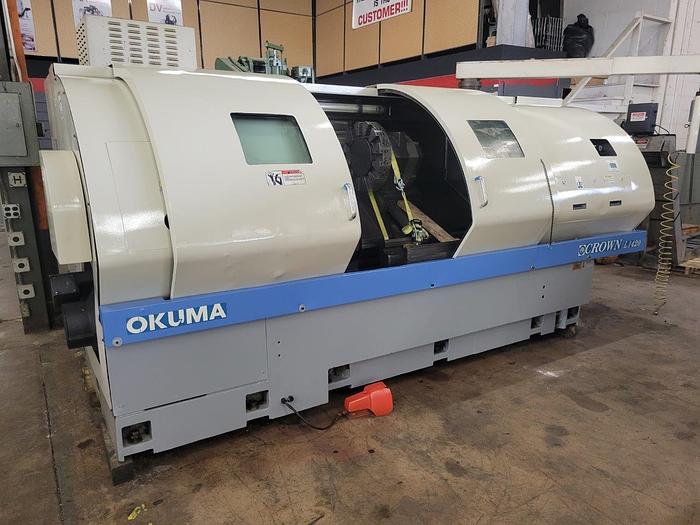

2001 Okuma Crown L1420/1250
2001 Okuma Crown L1420/1250
$12,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Big Bore Spindle Option

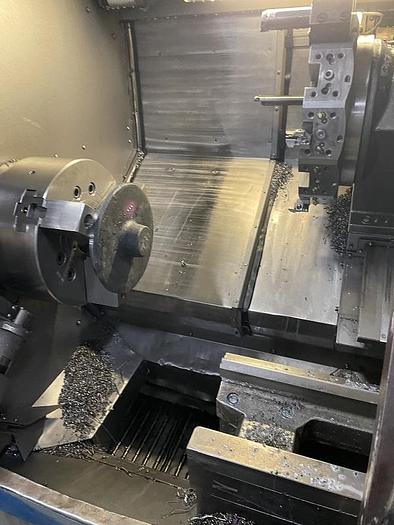

15″ 3-Jaw Hydraulic Chuck
Chip Conveyor
Tool Presetter
Tailstock-Simple Tow Along Type
High Pressure Coolant
MacMan
User Task II
LAP 4
Animation
160M Buffer
Hi G Control
Turret Position Compensation
NC Torque Limiter
Cycle Time Calculation
Nose-R 2B
Exp. Auto Chamfer
DNC-A
Status Lights
Coolant System with Tank & Pump
Boxed Ways Design
Leveling Pads
Chuck Foot Pedal
All Available Manuals
All Available Tooling (3) Boring Bar Holders
Transformer
Wired 220V - 480V Electrics
**Needs Spindle Bearings**

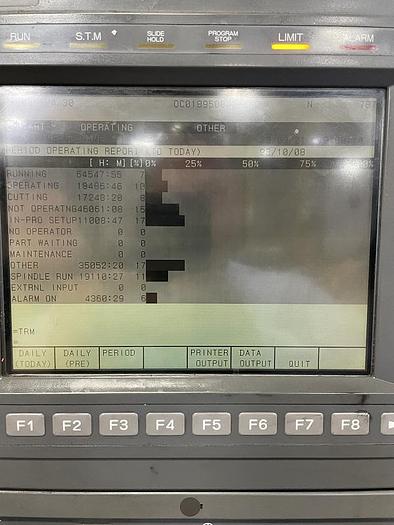

64,547 Power On Hours
3,612 Operating Hours
3,414 Cutting Hours
3,709 Spindle Hours
Specifications
| Manufacturer | Okuma |
| Model | Crown L1420/1250 |
| Year | 2001 |
| Condition | Used |
| Stock Number | 118744 |

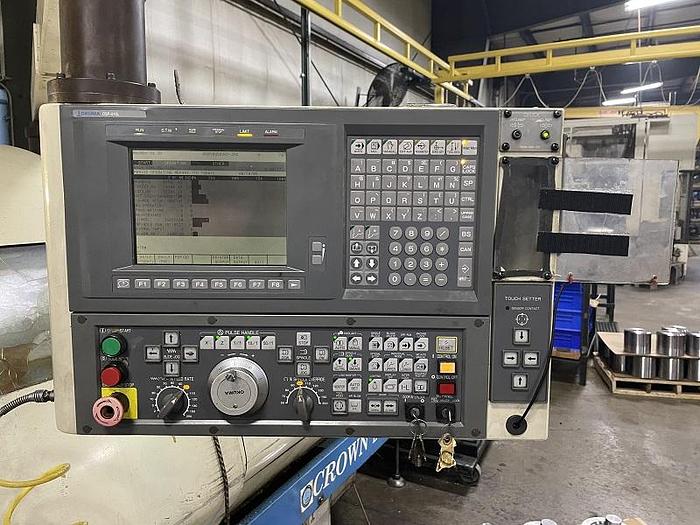

| Machine Control | OSP-U10L Control |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 22.83" |
| Maximum Turning Diameter | 14.17" |
| Maximum Machining Length | 50.1" |
| X-Axis Travel | 9.05" |
| Z-Axis Travel | 50.1" |
| Spindle Nose / Bore / Bar Capacity | A1-11" / 4.62" / 3.75" |
| Spindle Speeds | 65 - 3,500 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 472 IPM / 591 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 4.72" / MT #5 |
| Machine Dimensions LxWxH | 140" x 76" x 80" |
| Machine Weight | 15,000 lbs. |
