2013 Okuma LT3000-EX-2T2M
No longer available
2013 Okuma LT3000-EX-2T2M
Location:Ontario, Canada
Description
Twin Spindle Design

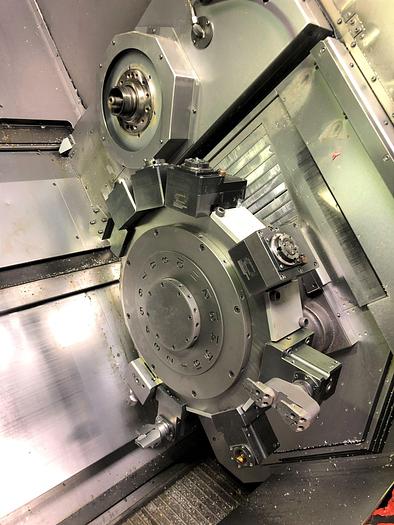

Twin Turret Design with Upper/Lower Turrets
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis on Both Turrets
Side Discharge Chip Conveyor
High Pressure MP Coolant System
Tool Presetter
Auto Doors
Tool Wear Compensation
Tool Life Management
Turret Position Compensation
ARC Thread Cut

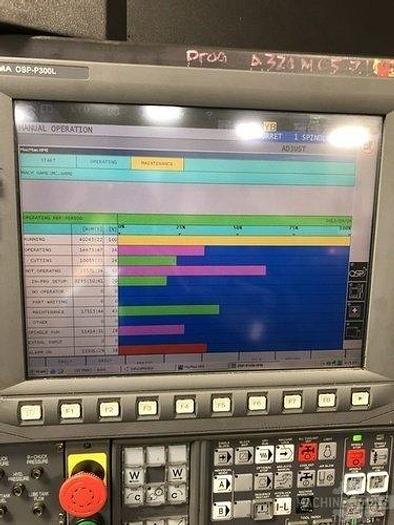

3D Animation Color Graphics
Specifications
| Manufacturer | Okuma |
| Model | LT3000-EX-2T2M |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118743 |

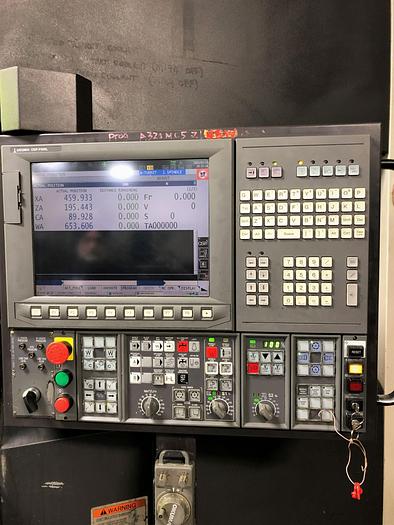

| Machine Control | Okuma OSP-P300LA |
| Chuck Size | 12" |
| Maximum Swing Over Cross Slide | 21.65" |
| Maximum Turning Diameter | 16.14" |
| X-Axis Travel | 8.07" |
| Y-Axis Travel | 3.74" |
| Z-Axis Travel | 27.56" |
| W-Axis Travel | 28.74" |
| C-Axis Rotation | .001 Degrees |
| Spindle Nose / Bore / Bar Capacity | AS-6 / 3.94" / 3.2" |
| Spindle Motor | 40 hp |
| Spindle Speed | 5,000 rpm Both Spindles |
| Number of Turrets | 2 |
| Number of Turret Positions | 12 each |
| Milling Spindle Speed | 6,000 rpm |
| Milling Spindle Motor | 7.5 hp |
| Floor Space | 147"x97" |
| Machine Height | 92.52" |
