2018 Hwacheon Hi-Tech 230BL YSMC
No longer available
2018 Hwacheon Hi-Tech 230BL YSMC
$154,950 (USD)
New Jersey
Description
Y Axis Capability (Off Center)
Subspindle
Full C Axis Spindle Rotation Both Spindles
Live Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck on Main Spindle
6" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye

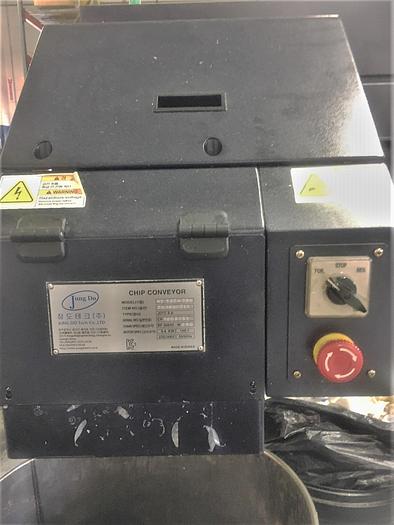

Chip Conveyor
Parts Catcher

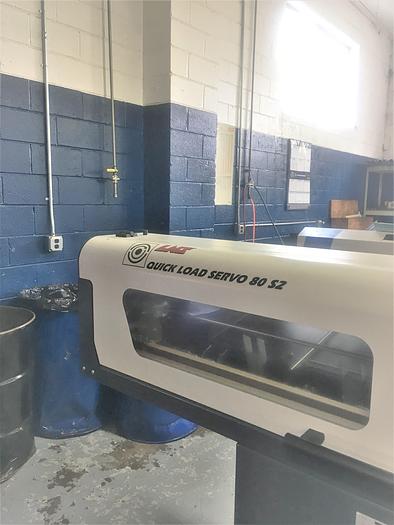

LNS Quick Load Servo 80 S2 Bar Feed System
Rigid Boxed Way Design
USB Port Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
All Available Manuals
All Available Static/Live Holders
**Price New at Over $230,000 as Equipped**
Specifications
| Manufacturer | Hwacheon |
| Model | Hi-Tech 230BL YSMC |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118739 |

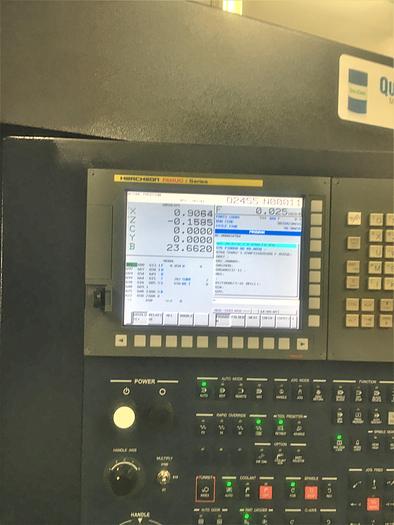

| Control | Fanuc i Series Control |
| Chuck Sizes | 10" Hydraulic Chuck on Main Spindle/6" Hyd on Subspindle |
| Maximum Swing/Over Carriage | 29.55" / 15.76" |
| Maximum Cutting Diameter | 15.76" |
| Maximum Cutting Length | 22.06" |
| X-Axis Travel | 9.456" |
| Y-Axis Travel | 4.728" |
| Z-Axis Travel | 27.58" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| B-Axis Travel (Subspindle) | 25.216" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3.58" / 3.19" |
| Spindle Speed / Sub Spindle Speed | 3,500 RPM / 5,000 RPM |
| Spindle Motor / Sub Spindle Motor | 25 HP / 10 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 7.4 HP |
| Number of Turret Positions | 12 Sided / 24 Stations |
| Rapid Traverse Rates X, B / Z | 1182 IPM, 945 IPM / 1182 IPM |
| Machine Dimensions | 116" x 74" x 73" approx. |
| Machine Weight | 12,500 lbs. approx. |
