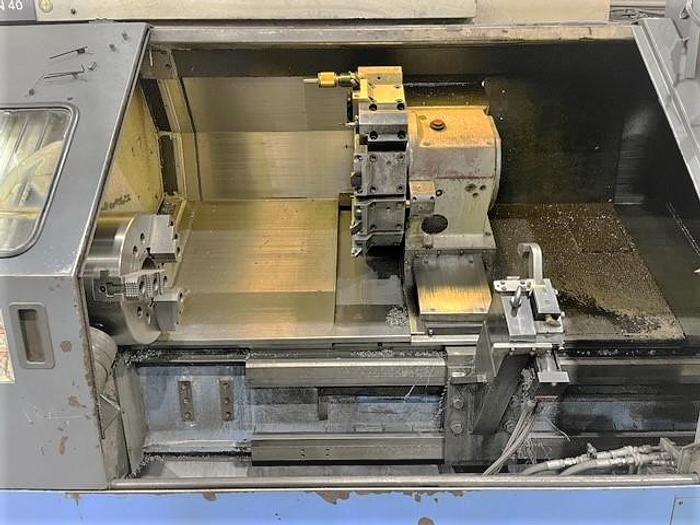

1998 Mazak QT40/1500 Big Bore

No longer available

1998 Mazak QT40/1500 Big Bore

$37,950 (USD)

Louisiana

Description

4.09" Big Bore Option 15" Hydraulic 3-Jaw Chuck Chip Conveyor Automatic Tool Eye Tailstock

Hydraulic Steady Rest Coolant System with Tank & Pump RS 232 Port Interface All Available Tool Blocks All Available Manuals

Specifications

ManufacturerMazak
ModelQT40/1500 Big Bore
Year1998
ConditionUsed
Stock Number118738
ControlMazatrol T-Plus Color
Chuck Size15" Hydraulic Chuck
Maximum Swing20"
Maximum Cutting Diameter15.75"
Maximum Cutting Length59.3"
Maximum Bar Capacity3.5"
X-Axis Travel11"
Z-Axis Travel61.3"
Spindle Nose / Spindle BoreA2-11" / 4.09"
Spindle Speed2,500 RPM
Spindle Motor40 HP
Number of Turret Positions12 Sided/24 Positions
Rapid Traverse Rates X/Z412 IPM / 709 IPM
Tailstock Center / DiameterMT #5 / 3.94"
Tailstock Body Travel / Quill Travel54.5" / 5.1"
Machine Dimensions165.5" x 74.2" x 81"
Machine Weight16,280 lbs.
