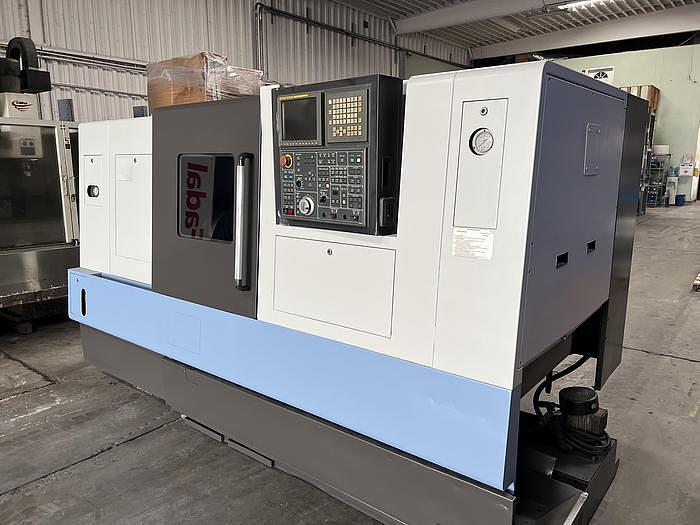

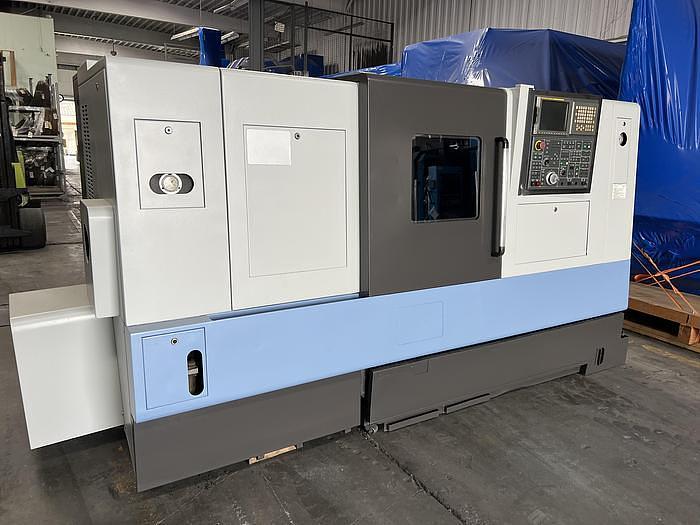

2007 Doosan Puma 300C
2007 Doosan Puma 300C
Contact us for price
California
orCall (863) 439-6066
Description

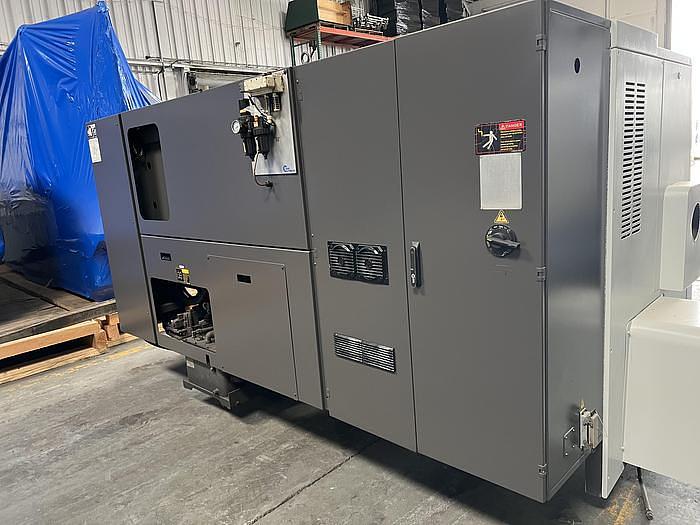

15" 3 Jaw Air Chuck Programmable Tailstock Chip Conveyor
Tool Presetter
2 Speed Gearbox Coolant Tank with Pump 3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Boxed Ways All Available Tooling All Available Manuals

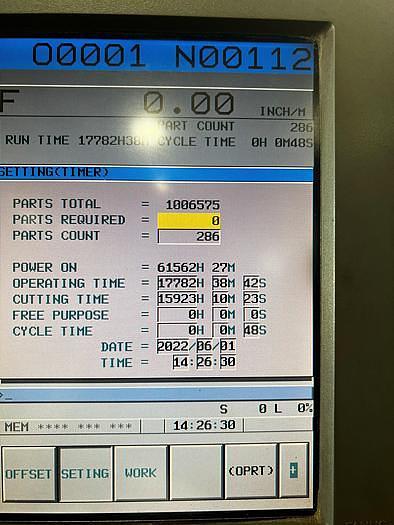

Machine Operation Hours - 17,782
Machine Cutting Hours - 15,923
Specifications
| Manufacturer | Doosan |
| Model | Puma 300C |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118737 |
| Control | Fanuc 21i-TB |

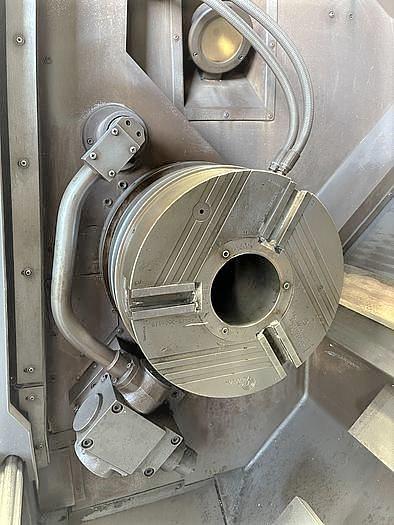

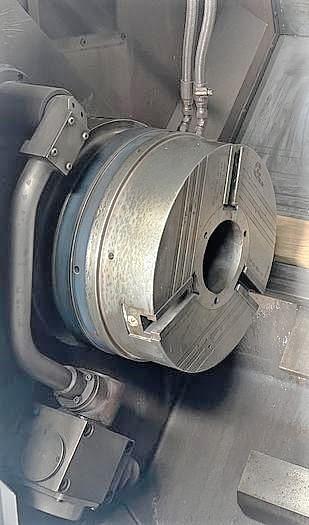

| Chuck Size | 15" 3 Jaw Air Chuck |
| Maximum Swing over Bed | 23.2" |
| Maximum Turning Diameter | 15.7" |
| Maximum Turning Length | 24.8" |
| Maximum Bar Capacity | 4.53" |
| X-Axis Travel | 11.1" |
| Z-Axis Travel | 26.8" |
| Spindle Nose / Spindle Bore | A2-11" / 4.53" |
| Spindle Speeds | 28 - 2,800 RPM |
| Spindle Motor | 35 HP |
| Transmission | 2 Speed Gearbox |

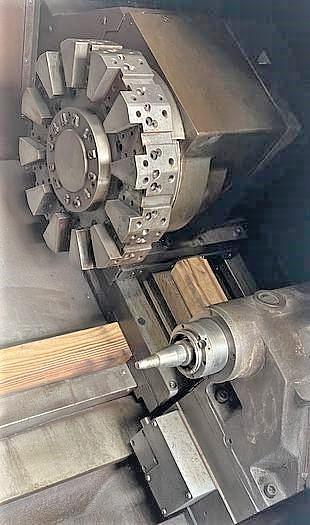

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |
| Tailstock Quill Diameter / Travel | 3.94" / 3.94" |
| Machine Dimensions | 135" x 77" x 80" |
| Machine Weight | 13,892 lbs. |
