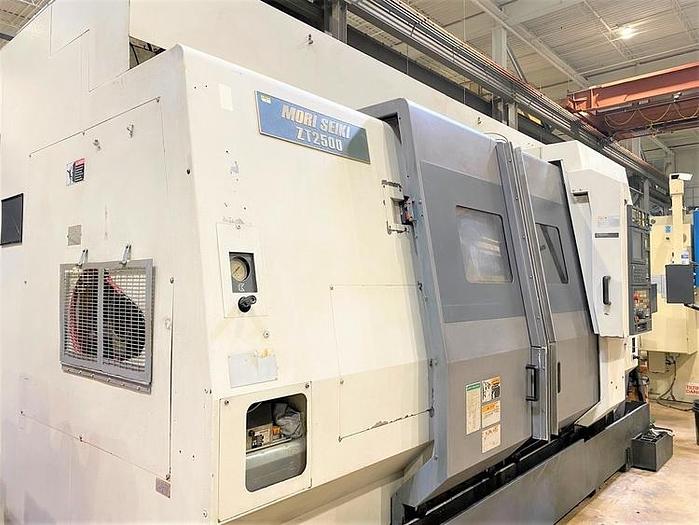

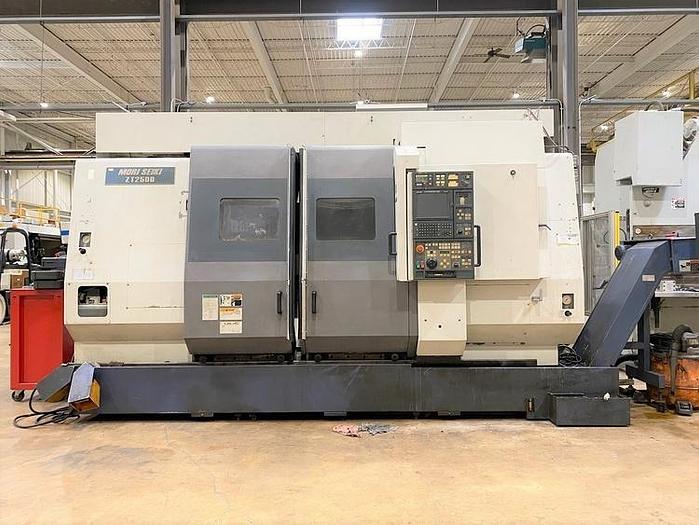

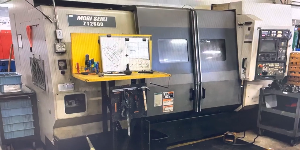

2001 Mori Seiki ZT2500Y
No longer available

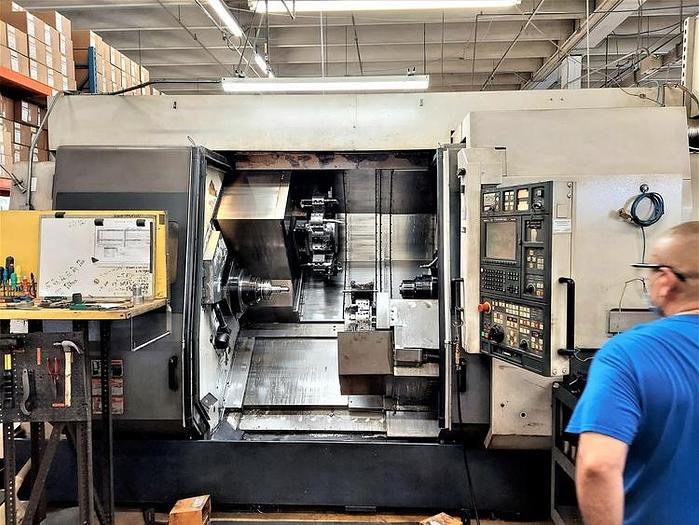

2001 Mori Seiki ZT2500Y
Location:Ohio
Description

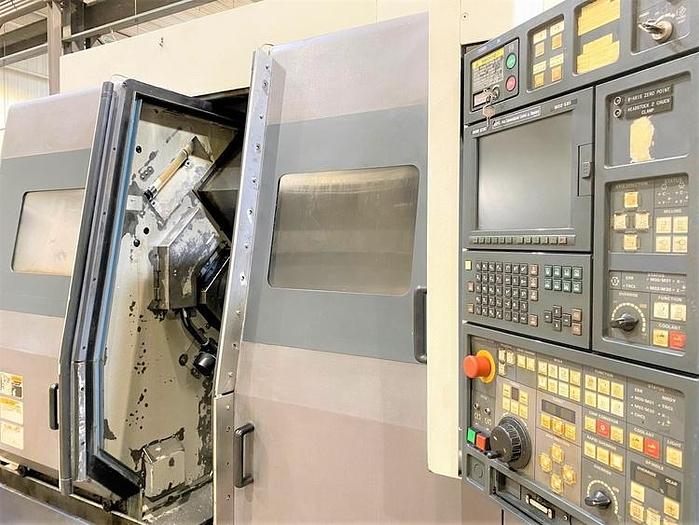

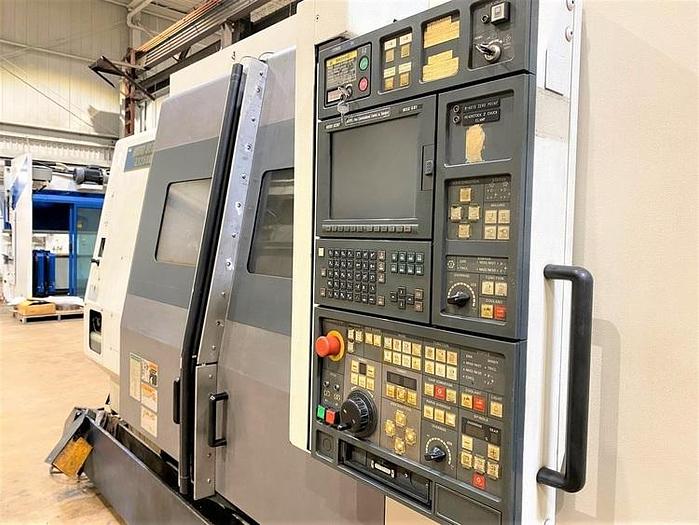

MSC 501 MAPPS Conversational Control
Tool Presetter
Chip Conveyor
Live Milling on all 12 Stations both Turrets
Approx 10 Live Tool Holders
Miscellaneous Static Tool Holders
Specifications
| Manufacturer | Mori Seiki |
| Model | ZT2500Y |
| Year | 2001 |
| Condition | Used |
| Stock Number | 118736 |
| Machine Control | MSC 501 MAPPS Conversational |
| Chuck Sizes | Collet Chuck / Collet Chuck |
| Maximum Swing | 14.96" |
| Distance Between Spindles | 51.18" |
| Maximum Turning Diameter | X1 14.96", X2 14.17" |
| Maximum Turning Length | 13.78" |
| X-axis travel | X1-11.02" / X2-7.87" |
| Y-Axis Travel | +/- 2.76" |
| Z-Axis Travel | 38.78" |
| B-Axis Travel (Subspindle) | 38.78" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.58" / 3.07" |
| Spindle Speeds | 40-4,000 rpm |
| Number of Turrets | 2 |
| Number of Turret Positions | 12 |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 6 hp |
| Rapid Traverse Rates | 944 ipm |
| Machine Dimensions LxWxH | 165"x109"x109.33" |
| Machine Weight | 28,600 lbs |
