2008 Okuma Macturn 550W Big Bore
2008 Okuma Macturn 550W Big Bore
Contact us for price
Ohio
orCall (863) 439-6066
Description

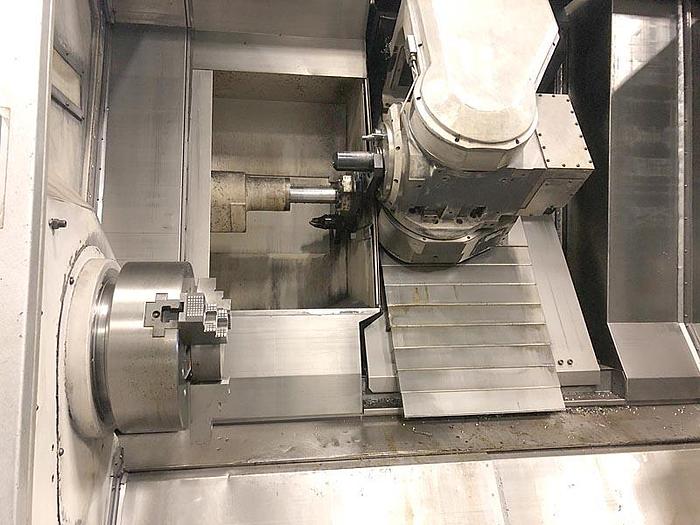

Full Contouring B-Axis Universal Head
Kitagawa B-15 15" 3-Jaw Power Chuck

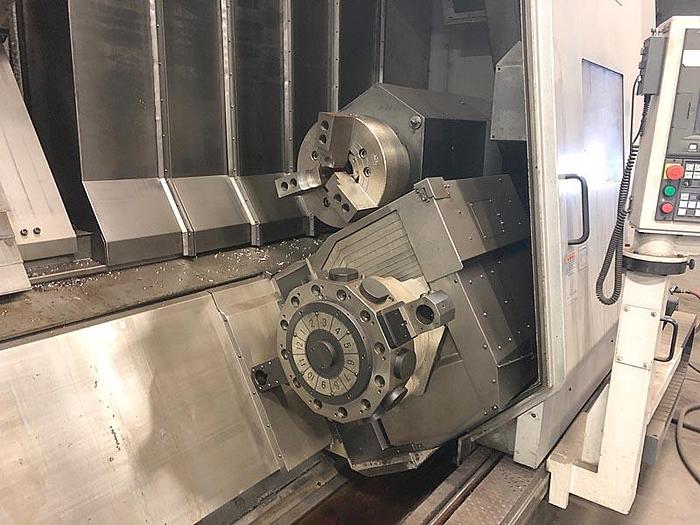

12 Position Lower Turret Lathe Tool Indexing
Programmable Torque Limit
50 Station Automatic Tool Changer
Heavy Duty Sub-Spindle with 15" Chuck
88" Between Spindles
Full C-Axis Spindle Rotation
BT-50 Spindle Taper
3D Animation
Servo Link Spindle
Tool Life Management
Tool Wear Comp
Tool Setting Probe
Helical Cutting
Synchronous Tapping
Oil Chiller
Chip Conveyor & Coolant System.
Specifications
| Manufacturer | Okuma |
| Model | Macturn 550W Big Bore |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118735 |

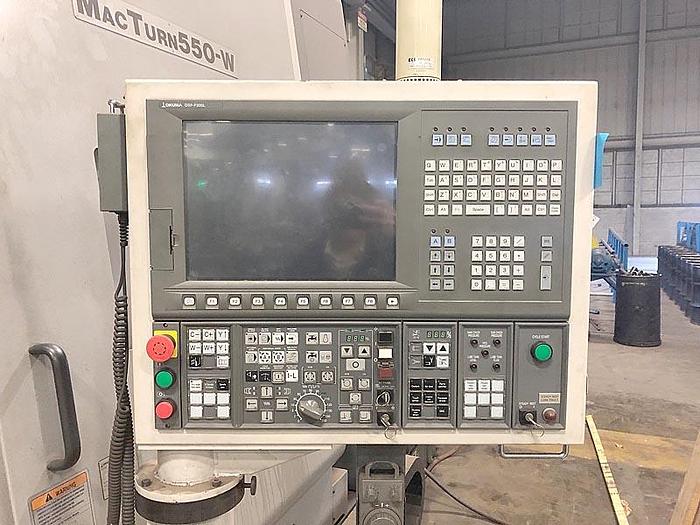

| Machine Control | Okuma OSP P200LA |
| Maximum Swing | 28.34" |
| Maximum Turning Diameter | 28.34" |
| Chuck Size | 15" |
| X-axis travel | 25.98" |
| Z-Axis Travel | 87.2" |
| Y-Axis Travel | 9.84" |
| B-Axis Rotation | 210 Degrees |
| X2-Axis Travel | Lower Turret 9.05" |
| Z2-Axis Travel | Lower Turret 82.67" |
| Spindle Nose / Bore / Bar Capacity | A2-11 / 5.12" / 4.8" |
| Main Motor | 40 hp |
| Spindle Speed | 3,800 rpm |
| Milling Spindle Speed | 5,000 rpm |
| Milling Spindle Motor | 15 hp |
| Tool Magazine Capacity | 50 atc |
| Machine Dimensions LxWxH | 281"x122"x123" |
| Machine Weight | 62,000 lbs |
