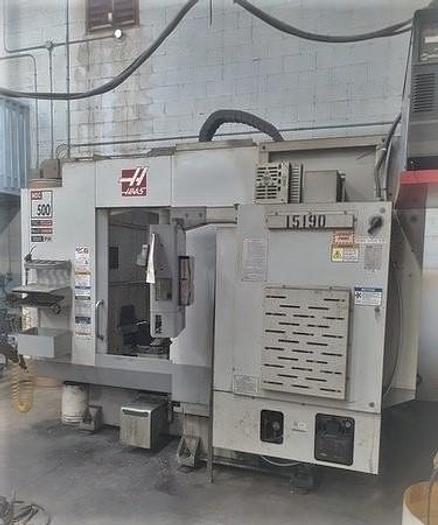

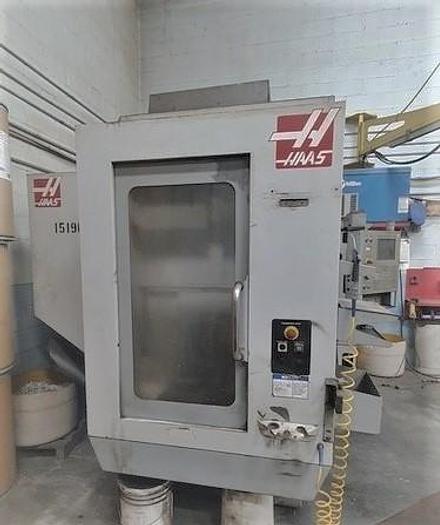

2005 Haas MDC-500 Mill Drill Center
No longer available
2005 Haas MDC-500 Mill Drill Center
$19,950 (USD)
Location:Ontario, Canada
Description

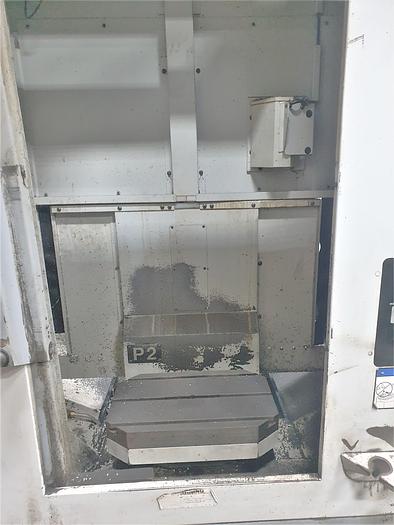

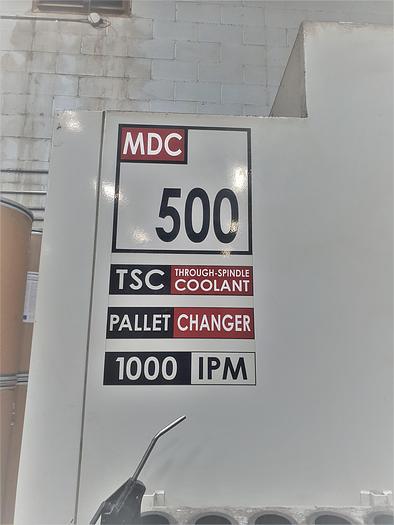

2 Pallet Factory Pallet Changer (180 Degree Type)

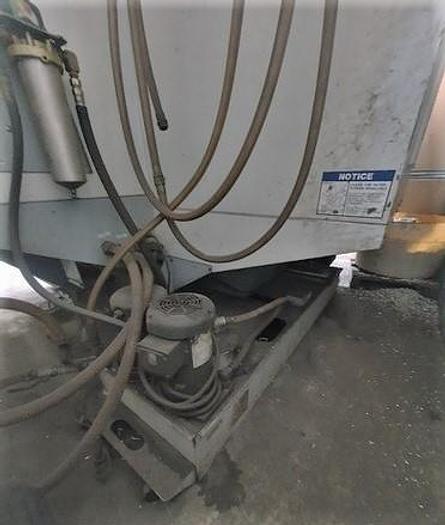

Coolant Thru the Spindle - 300 PSI
Programmable Coolant Nozzle Rigid Tapping Chip Conveyor 24 Station Side-Mount Tool Changer 15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface Brushless Servos on All Axes All Available Manuals
Wired 220V Electrics

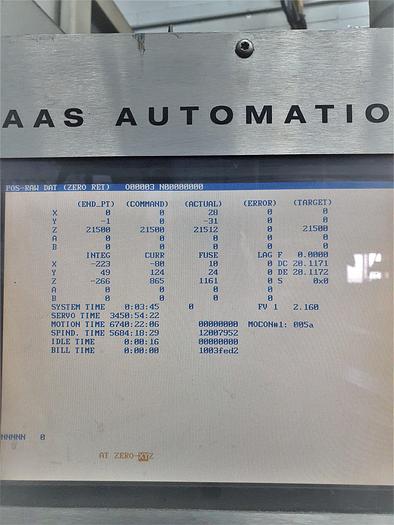

**Machine Motion Hours 6,740**
**Spindle Run Hours 5,684**
Specifications
| Manufacturer | Haas |
| Model | MDC-500 Mill Drill Center |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118733 |
| Control | Haas CNC Control |
| Table Size | 20" x 12.75" (2) Pallets |
| Maximum Table Load | 700 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 14" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 20 HP |
| Spindle Torque | 75 ft lb @ 1,400 rpm |
| Tool Magazine Capacity | 24+1 Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 3 "/ NA / 12 lbs |
| Tool Change Time Chip to Chip | 4.8 Seconds |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions LxWxH | 143"x134"x113" |
| Machine Weight | 14,000 lbs |
