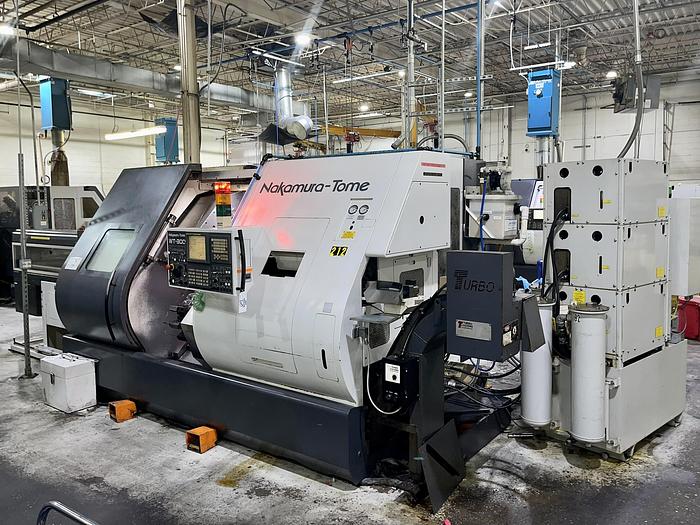

2007 Nakamura Tome WT-300

No longer available

2007 Nakamura Tome WT-300

Pennsylvania

Description

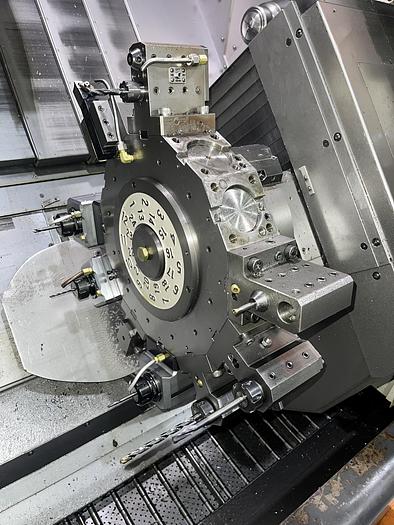

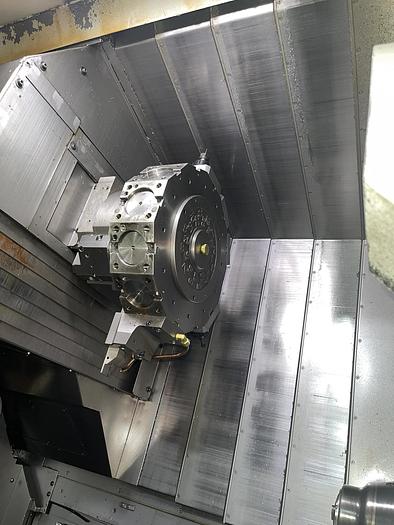

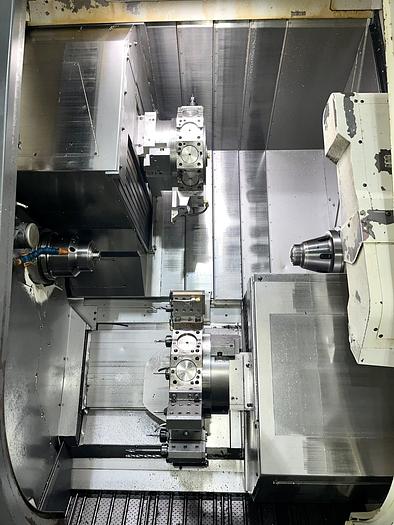

(2) 12-Station Turrets

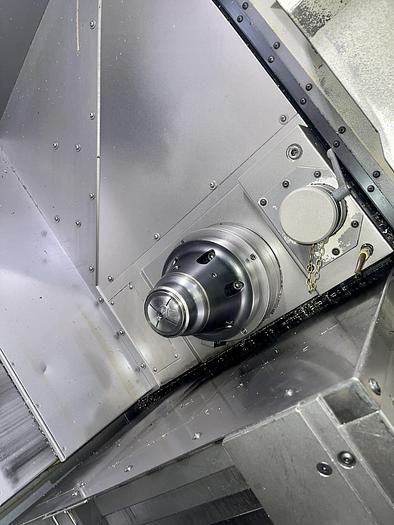

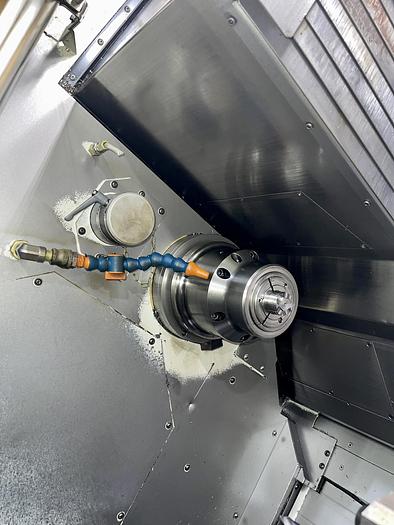

C-Axis Both Spindles

2.5" Bar Capacity Both Spindles

Y-Axis Upper Turret

Chip Blaster

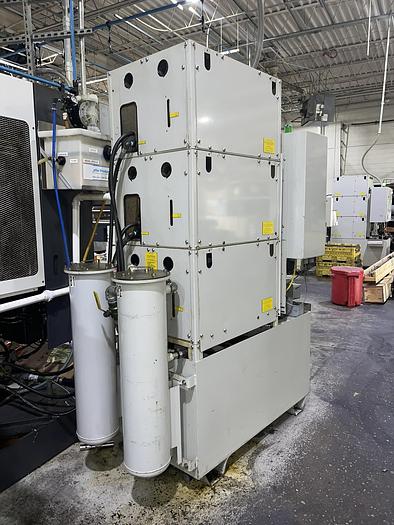

High Pressure Coolant

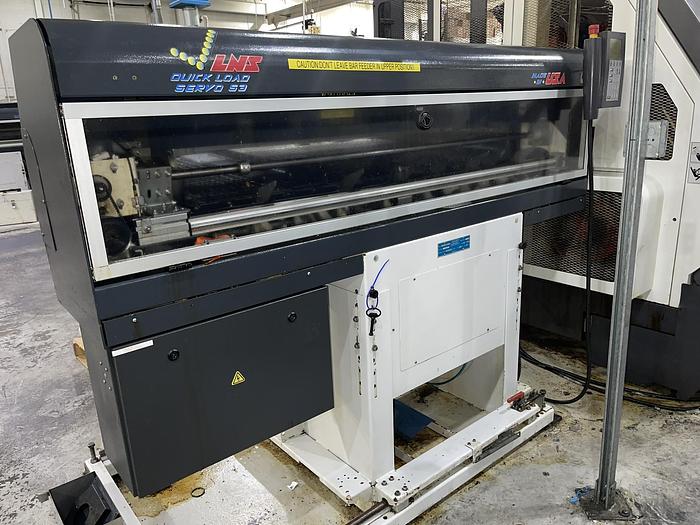

LNS QL Servo S3 Barfeed

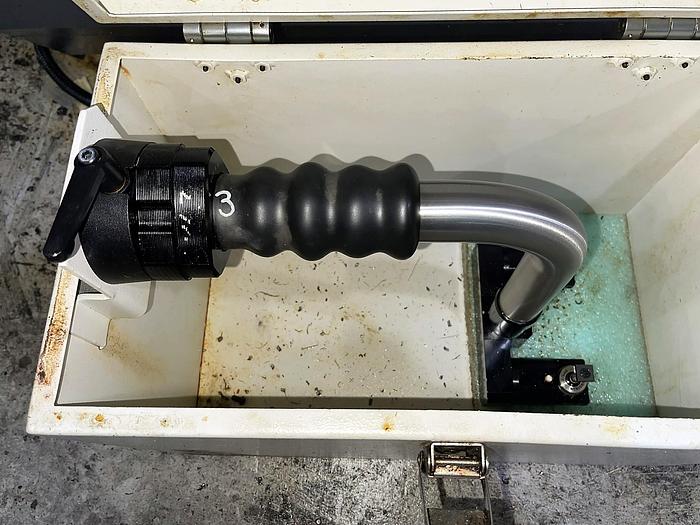

Tool Presetter

Parts Catcher

Parts Conveyor

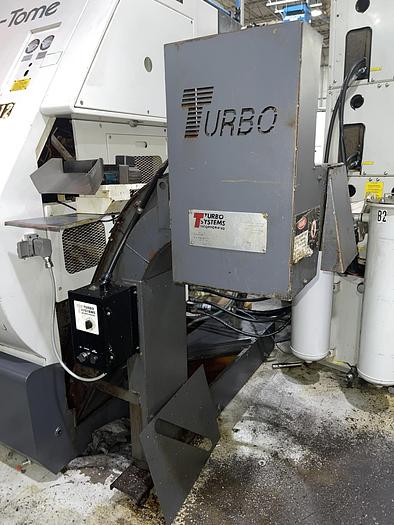

LNS Chip Conveyor

200/220 Volts

Specifications

ManufacturerNakamura Tome
ModelWT-300
Year2007
ConditionUsed
Stock Number118725

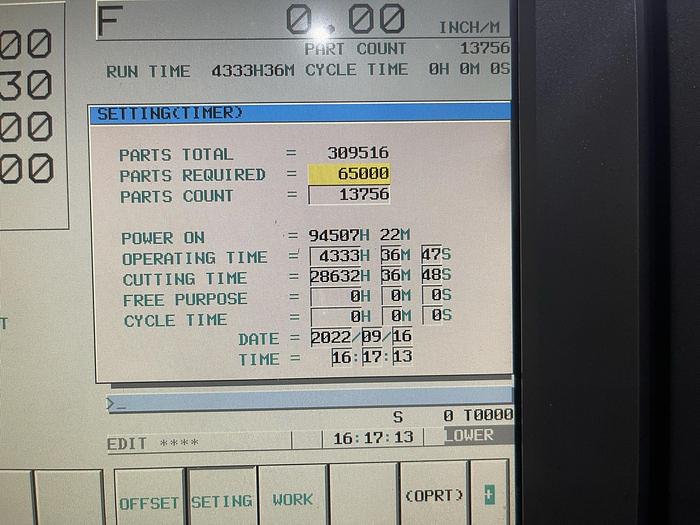

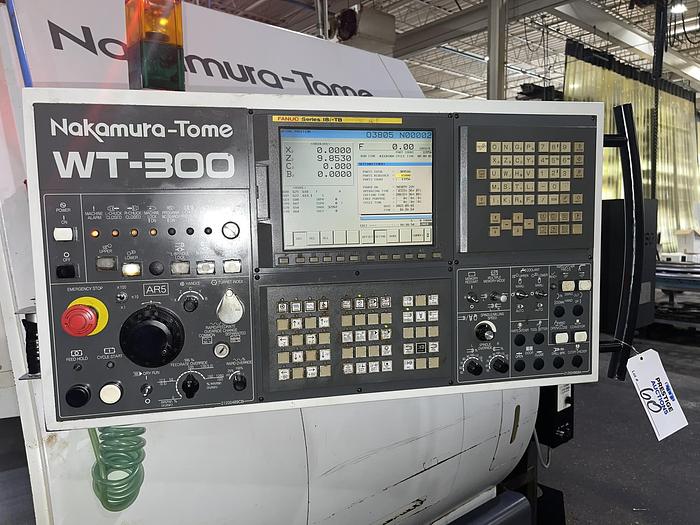

Machine ControlFanuc 18i-TB
Maximum Swing9.84"
Maximum Turning Diameter10.62"
Maximum Turning Length30.71"
Maximum Distance Between Centers43.3"
Main & Subspindle Speeds45-4,500 rpm
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation.001 Degree / .001 Degree
Main Spindle Motor25 hp
Subspindle Motor25 hp
Spindle Nose / Spindle Bore / Bar CapacityA2-6 / 3.15" / 2.5"
Subspindle Nose / Spindle Bore / Bar CapcityA2-6 / 3.15" /2.5"
Number of Turrets(2) 12-positions each
Rotary Tool Speed / Rotary Motor3,600 rpm / 7.5 hp
X1/X2 Travel7.68"
Z1/Z2 Travel30.71"
Y-Axis TravelUpper turret only 2.36"
Machine Dimensions LxWxH190"x99"x90"
Machine Weight26,400 lbs
