2015 Haas Super Mini Mill 2
2015 Haas Super Mini Mill 2
Contact us for price
Michigan
orCall (863) 439-6066
Description
Auger Style Chip Conveyor
Rigid Tapping
15" Color LCD Monitor
Memory Key Lock Switch
Coolant Tank with Pump
USB Port Interface
RS 232 Port Interface
All Available Manuals

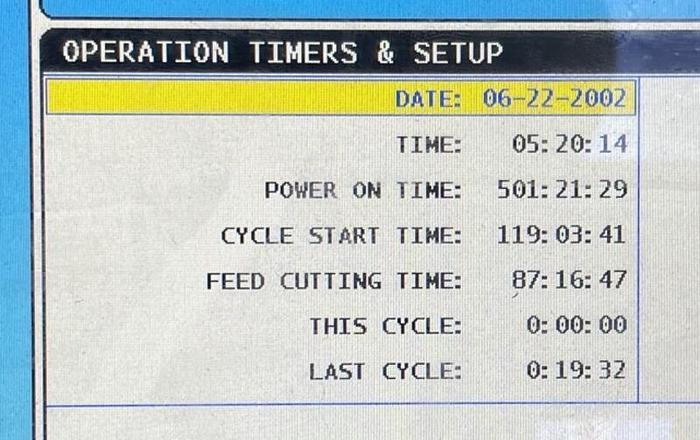

**Just over 500 Power On Hours**
**Less than 100 Feed Cut Hours**
**Price New as Equipped at just under $60,000**
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill 2 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118719 |
| Machine Control | Haas CNC Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 10 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
