2020 Haas ST-30

2020 Haas ST-30
$79,950 (USD)
North Carolina
orCall (863) 439-6066
Description
Chip Conveyor
Programmable Tailstock
10" 3 Jaw Hydraulic Chuck
Parts Catcher
Tool Presetter
High Pressure Coolant - 300 psi
High Intensity Lighting
User Definable Macros
Haas Visual Part Programming System
Auxiliary Coolant Filter
Automatic Coolant Refill System
Spindle Orientation
Low Voltage Transformer
Rigid Tapping
Early Power Failure Detection System
Complete Coolant System with Tank & Pump
1 GB Program Storage
Ethernet Interface
Haas Connect Option
Wifi Connection for Haas Control
USB Port Interface
RS 232 Port Interface
All Available Tool Blocks

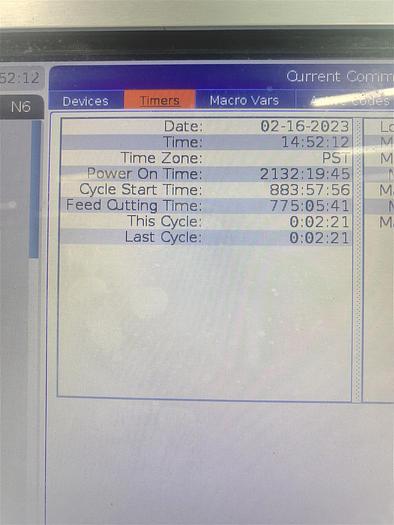

**Power On Time 2,132 hrs**
**Cycle Start Time 883 hrs**
**Feed Cutting Time 775 hrs**
**Price new as equipped at just under $99,000**
**Out of a job shop environment**
Specifications
Manufacturer | Haas |
Model | ST-30 |
Year | 2020 |
Condition | Used |
Stock Number | 118710 |
Machine Control | Haas CNC Control |
Chuck Size | 10" 3-Jaw Hydraulic Chuck |
Maximum Swing | 31.75" |
Maximum Turning Diameter | 21" |
Maximum Machining Length | 26" |
Maximum Bar Capacity | 3" |
X-Axis Travel | 12.75" |
Z-Axis Travel | 26" |
Spindle Nose / Spindle Bore | A2-6" / 3.5" |
Spindle Speeds | 3,400 RPM |
Spindle Motor | 30 HP |
Number of Turret Positions | 12 Station Bolt on Type |
Rapid Traverse Rates | 945 IPM |
Tailstock Taper | MT #4 |
Machine Dimensions | 175" x 77" x 83" |
Machine Weight | 13,200 lbs. |
