2007 Haas VF3B YT/40
No longer available
2007 Haas VF3B YT/40
$69,500 (USD)
Location:Ohio
Description
Extended Y Axis Travel

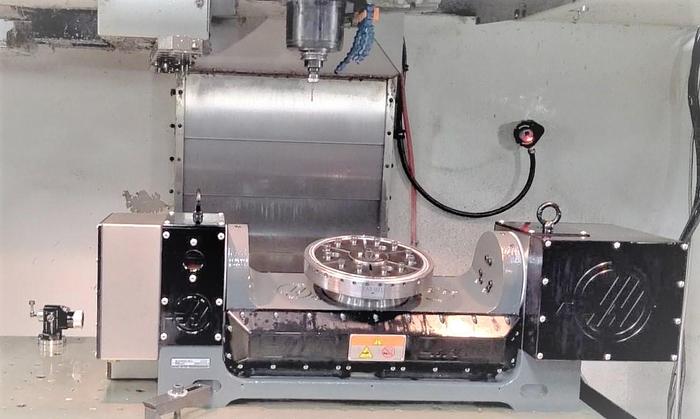

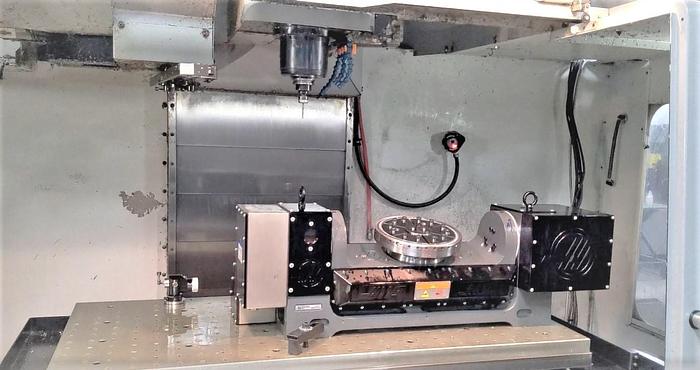

Haas TR-160 Trunnion Style 4th/5th Axis Table

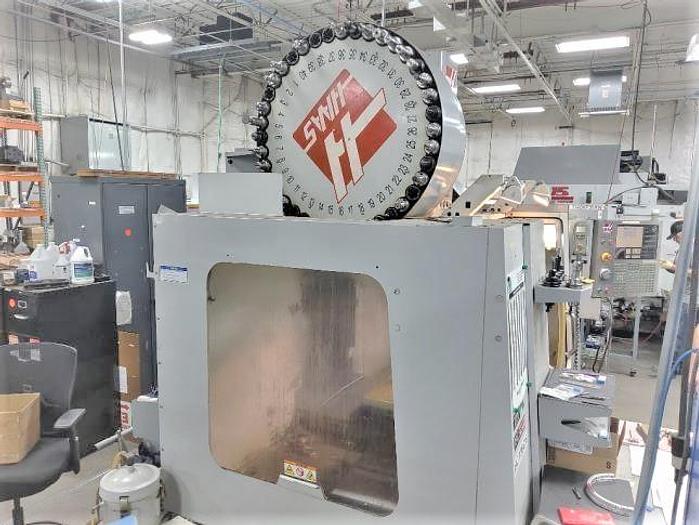

40+1 Position Side Mounted Tool Changer
Coolant Through the Spindle
Renishaw Probing Package
10,000 RPM Spindle
Auger Style Chip Conveyor
2 Speed Gearbox
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Remote Jog Handle
High Intensity Lighting
Coolant Tank with Pump
Tool Shelves
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF3B YT/40 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118708 |
| Table size | 54" x 24" |
| Max table load | 3,500 lbs. |
| X axis travel | 40" |
| Y axis travel | 26" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 10,000 RPM - 2 Speed Geared Head |
| Spindle motor | 30 HP |
| Spindle nose to table top | 4.5" - 29.5" |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Rapid Traverse Rates | 1400 IPM |
| Cutting Feedrates | 833 IPM |
| Machine Dimensions | 156" x 102" x 109" |
| Machine Weight | 13,000 lbs. |
