2012 Haas VF2TR with 30k RPM Spindle and TR160 Trunnion Table

2012 Haas VF2TR with 30k RPM Spindle and TR160 Trunnion Table
$54,950 (USD)
New York, NY
Description
24 Station Side Mounted Tool Changer
30,000 RPM Spindle Option
BT30 Taper Spindle - requires balanced tooling
Haas TR160 Trunnion Style Table - Removable
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Haas Wireless Probing Package - Both Tool & Part
Table Mounted Tool Probe Extension
Chip Auger - (see below, was removed due to not needing, but is available to go with)
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
High Speed Machining
Remote Jog Handle
High Intensity Lighting
Haas Low Maintenance Coolant
Ethernet Interface/Hard Drive
USB Port Interface
RS 232 Port Interface
Wired 195V/260V Electrics
Complete Coolant System with Tank & Pump
**Manufactured New in December of 2012**
**Compare with pricing today of $163,341 as equipped**
**Machine has been used to only cut acrylic and plastic. It does not use coolant**
**Both chip auger and coolant tank with pump are available to go with machine, currently not in use and in storage**
**Hours were reset when batteries were replaced. Hours below are based off sister machine that is 7 months older**
**Approximate Servo On Hours are 7,000**
**Approximate Motion Hours 1000**
**Approximate Spindle Hours 700**
Specifications
Manufacturer | Haas |
Model | VF2TR with 30k RPM Spindle and TR160 Trunnion Table |
Year | 2012 |
Condition | Used |
Stock Number | 118707 |

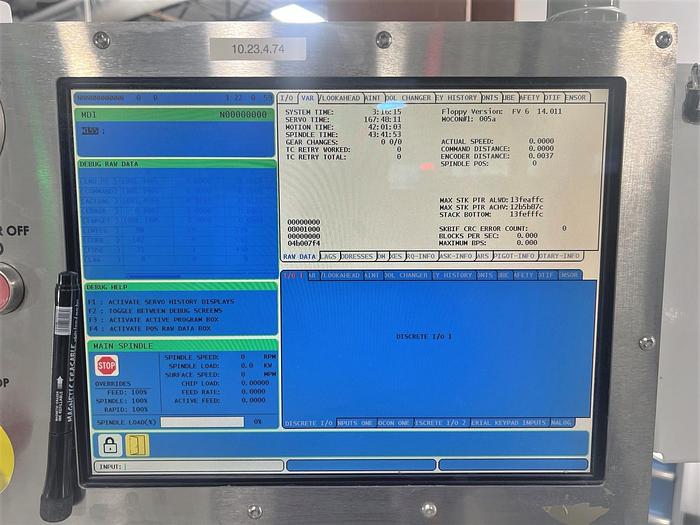

Control | Haas CNC Control |
Table Size | 36" x 14" |
Maximum Table Load | 1,000 lbs |
X-Axis Travel | 30" |
Y-Axis Travel | 16" |
Z-Axis Travel | 20" |
Spindle Speed | 30,000 RPM |
Spindle Taper | BT 30 Taper |
Spindle Motor | 20 HP |
Tool Magazine Capacity | 24 Station Side Mounted ATC |
Rapid Traverse Rates | 1,000 IPM |
Distance Spindle Nose to Table Top | 4" - 24" |
Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
Machine Dimensions LxWxH | 88"x92.5"x104" |
Machine Weight | 8,000 lbs |
