2006 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool
No longer available
2006 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool
$69,950 (USD)
Location:New Jersey
Description

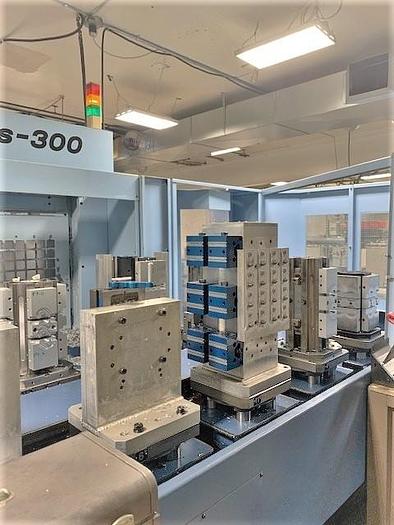

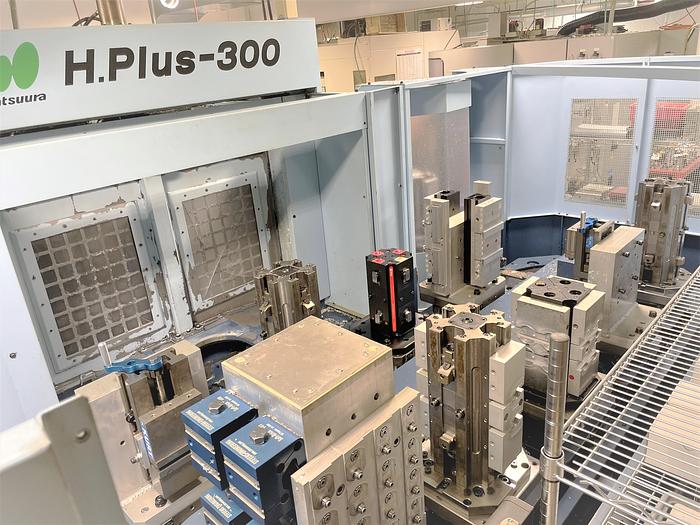

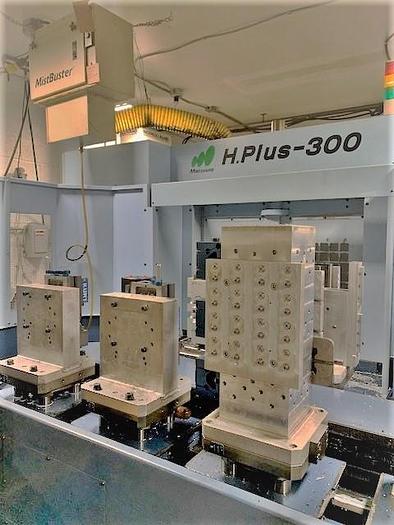

11 Pallet Rotary Type Changer System
1 Degree Pallet Indexing

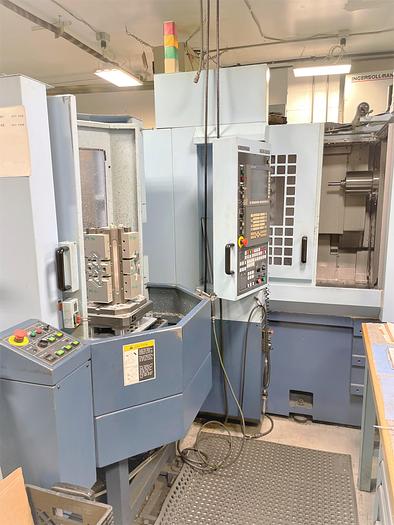

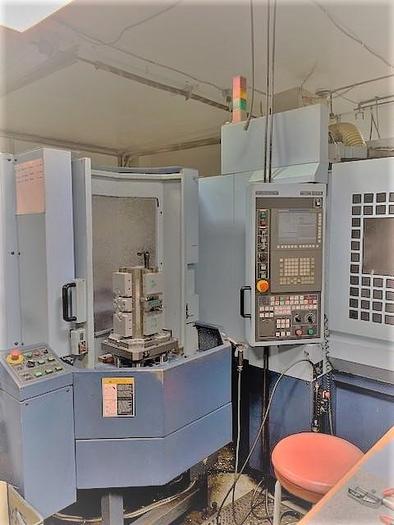

Single Loading Station

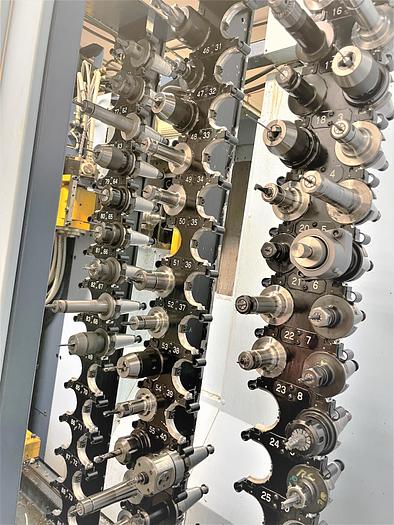

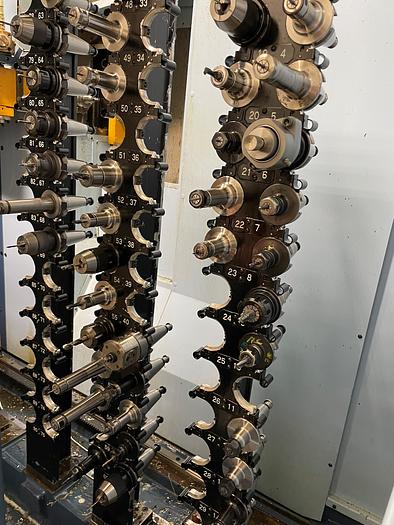

90 Station Tool Magazine (expandable to 240 stations)
Tool Setter Probe - Renishaw NC4 Laser
1000 PSI High Pressure Coolant Through the Spindle
Chip Conveyor
Rigid Tapping Remote Jog Handle
Spindle Oil Chiller
3 Color Machine Status Condition Lights
Ethernet Interface
USB Port Interface
PCMCIA Card Interface
RS-232C Port for DNC Interface
Coolant System with Tank & Pump
Miscellaneous Tool Holders and Fixturing
**IN PLANT UNDER POWER, AVAILABLE IMMEDIATELY**

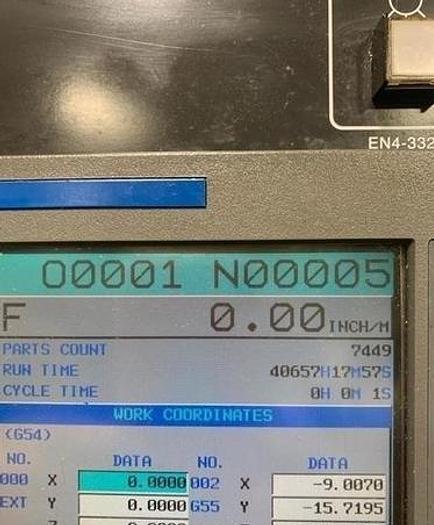

**Total Machine Power On Time 40,657, spindle hours tend to be about 30-35% of power on time**
Specifications
| Manufacturer | Matsuura |
| Model | 2006 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118705 |
| Control | Matsuura G-Tech 30i |
| Pallet Size / Number of Pallets | 11.81" x 11.81" / 11 Pallet Pool |
| Table Indexing | 1 Degree Indexing of table |
| Maximum Table Load | 550 lbs. |
| Maximum Workpiece Diameter / Height | 20.86" x 29.92" |
| X-Axis Travel | 19.68" |
| Y-Axis Travel | 22.04" |
| Z-Axis Travel | 19.68" |
| Spindle Taper | BT #40 |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 20 HP |
| Pallet Center to Spindle Face | 3.15" - 22.83" |
| Pallet Surface to Spindle Center | 4.72" - 24.41" |
| Number of Tool Positions | 90 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.9" / 11.81" / 17.6 lbs. |
| Rapid Traverse Rates | 2362 IPM |
| Machine Dimensions | 146" x 85" x 102" |
| Machine Weight | 20,500 lbs. |
