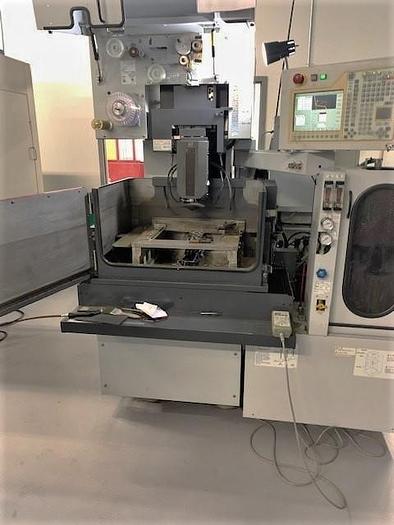

2010 Mitsubishi MD+Pro II Wire EDM
Sold
2010 Mitsubishi MD+Pro II Wire EDM
$39,950 (USD)
Location:Florida
Description

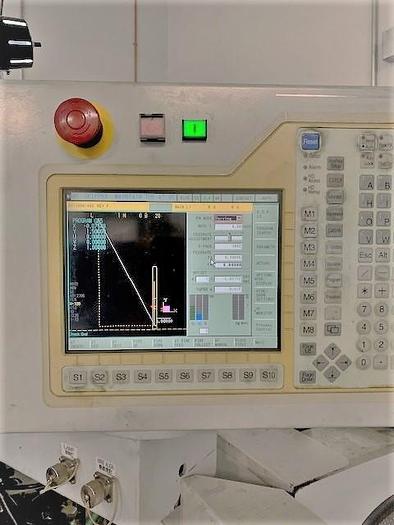

Mitsubishi V350-II Multi Tasking Control
Submerged Machining

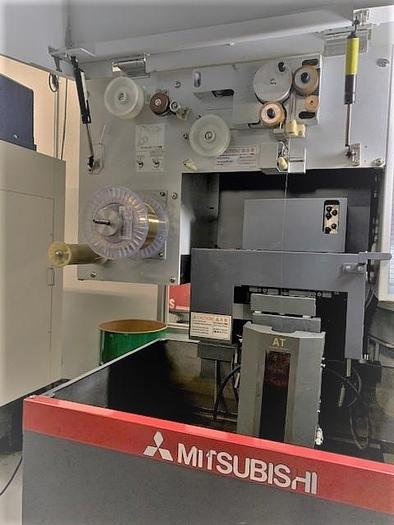

Auto Threading
Plug In Wire Alignment Setting Tool
AC Servo Drives

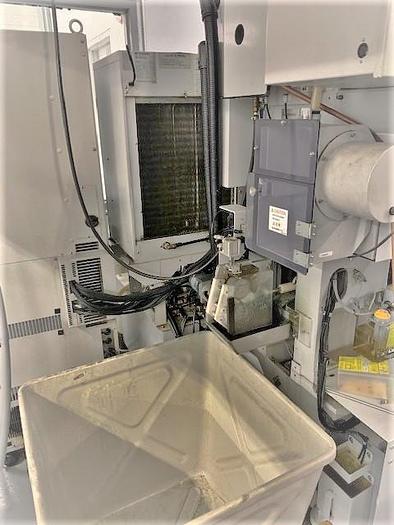

Electric Chiller Unit
U/V Axis 5 Axis Positioning within Program
Graphic User Interface (GUI) Makes the BA8 Easy to Operate
E.S.P.E.R Expert System
Easy Simple to Program by Expert AE System Combined with the 64-BIT CNC Control
Conversational Programming
10 Seconds Wire Threading
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Ethernet Interface
All Available Manuals
Excellent Condition
**AVAILABLE IMMEDIATELY**
Specifications
| Manufacturer | Mitsubishi |
| Model | MD+Pro II Wire EDM |
| Year | 2010 |
| Condition | Used |
| Stock Number | 118703 |
| Machine Control | Mitsubishi W30BV-2 |
| Number of Axes | 5 |
| Table size | 21.3"x16.9" |
| Maximum Submerged Workpiece Dimensions | 27.5" x 23.2" x 8.4" |
| Maximum Table Load | 1,100 lbs |
| X-Axis Travel | 12.6" |
| Y-Axis Travel | 9.8" |
| Z-Axis Travel | 8.7" |
| U/V-Axis Travel | 1.3" |
| Taper Capacity | 153.9 Degrees |
| Minimum Wire Diameter | .004" |
| Maximum Wire Diameter | .008" |
| Dielectric Tank Capacity | 116 Gallons |
| Machine Dimensions LxWxH | 72"x94"x84" |
| Machine Weight | 8,500 lbs. |
