2008 Haas VF4SS APC
No longer available
2008 Haas VF4SS APC
Location:Texas
Description

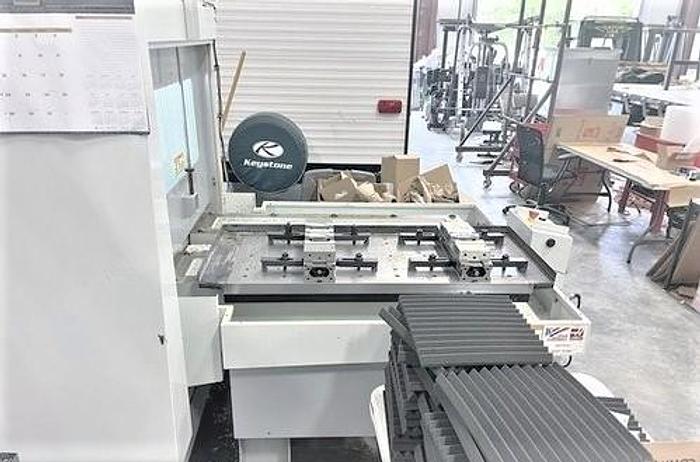

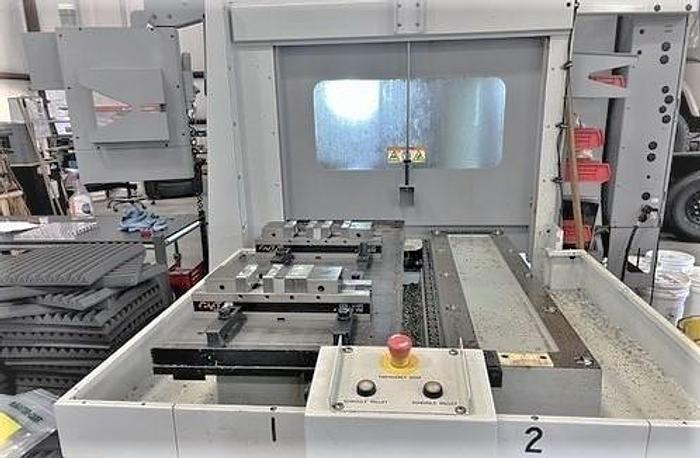

Haas Factory 2 Pallet Changer System

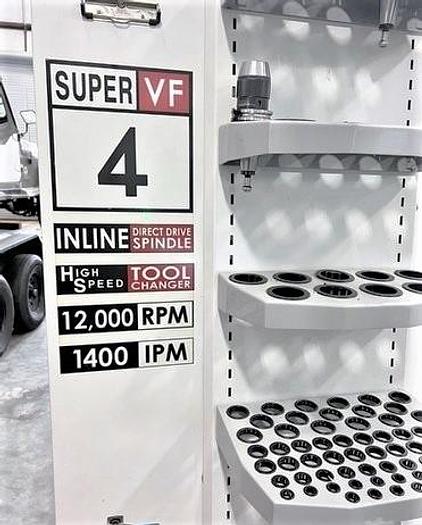

40 Station Side Mounted Tool Changer
High Speed Machining
Auger Style Chip Conveyor User Definable Macros
Remote Jog Handle
Rigid Tapping Vector Drive Spindle

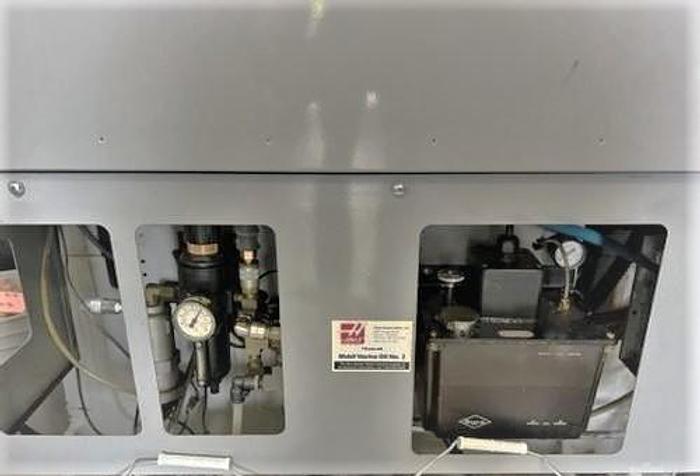

USB Port Interface RS 232 Port Interface Coolant System with Tank and Pump

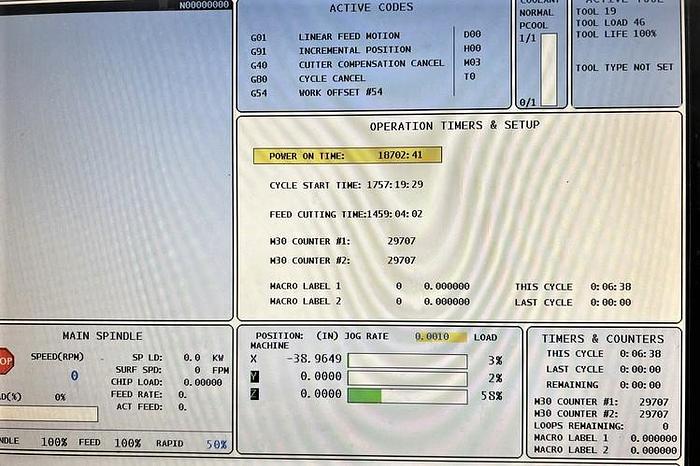

**Cycle Start Hours 1,757**
**Feed Cutting Hours 1,459**
**Used Primarily on Aluminum**
**Compare at replacement value of $155,000**

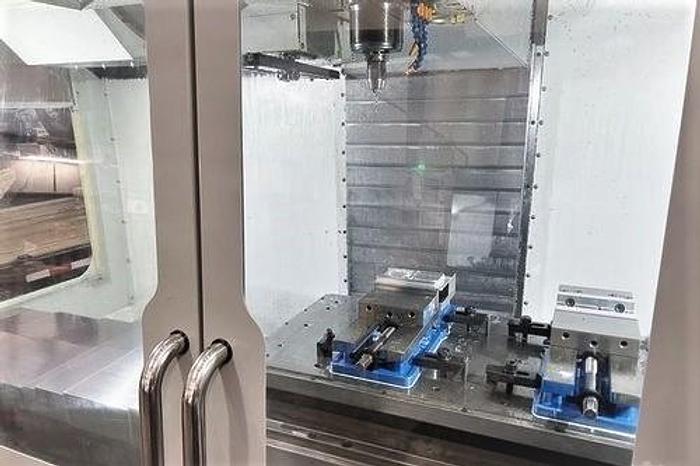

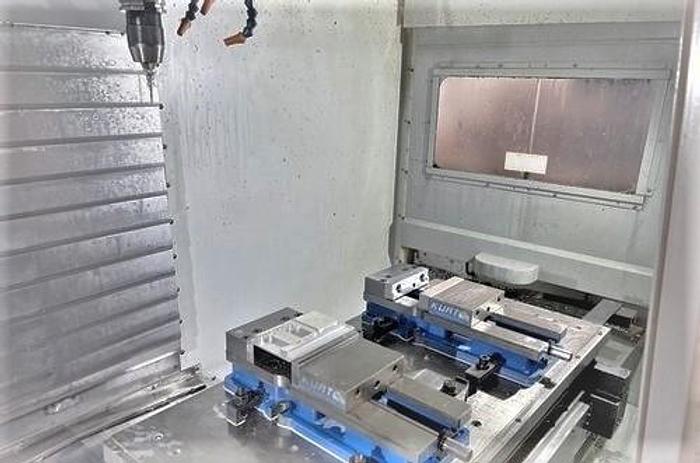

**Vices in photos are NOT included with machine**
Specifications
| Manufacturer | Haas |
| Model | VF4SS APC |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118701 |
| Control | Haas CNC Control |
| Table Size | 52" x 18" / 2 Pallets |
| Maximum Weight on Table | 3,500 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 30 HP Vector Direct Drive |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Rapid Traverse Rates | 1,400 IPM |
| Machine Dimensions | 131" x 92" x 101" |
| Machine Weight | 13,800 lbs. |
