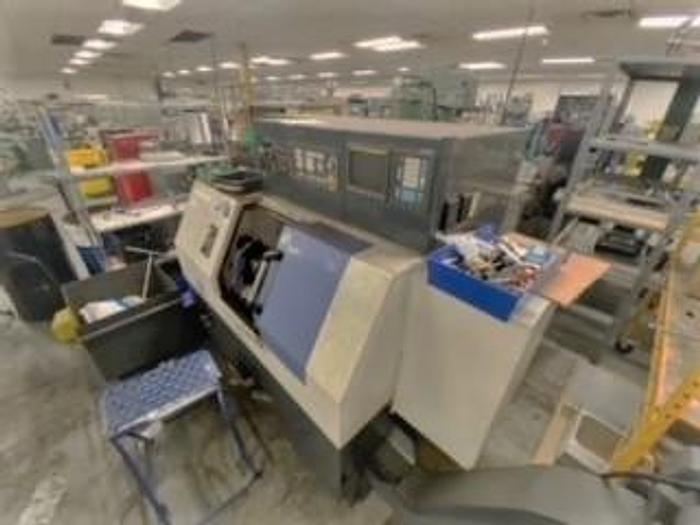

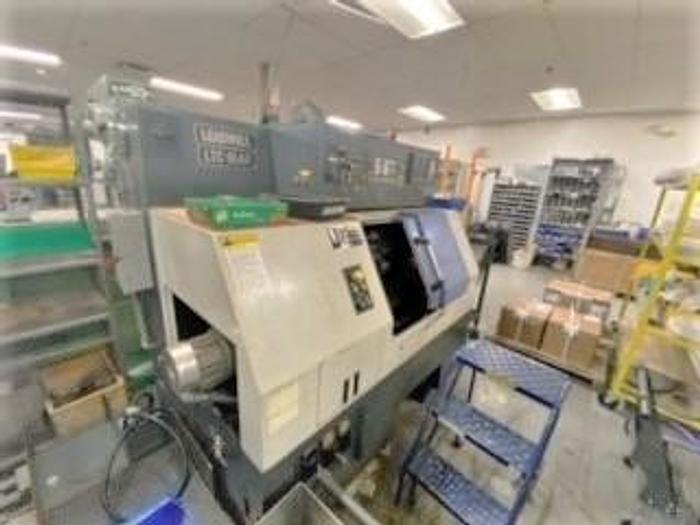

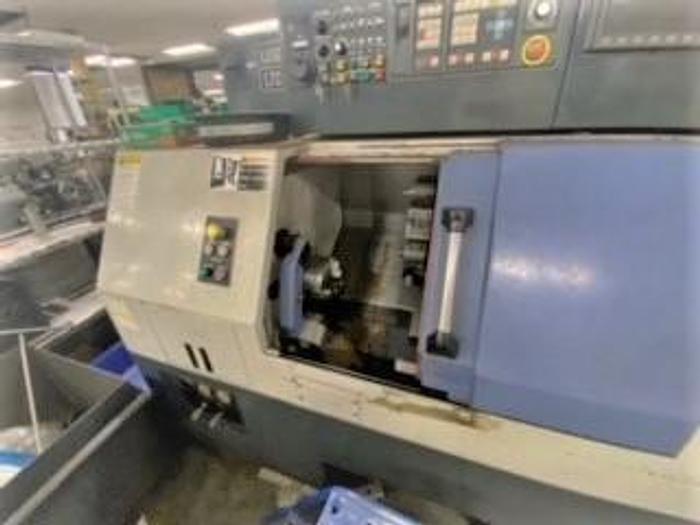

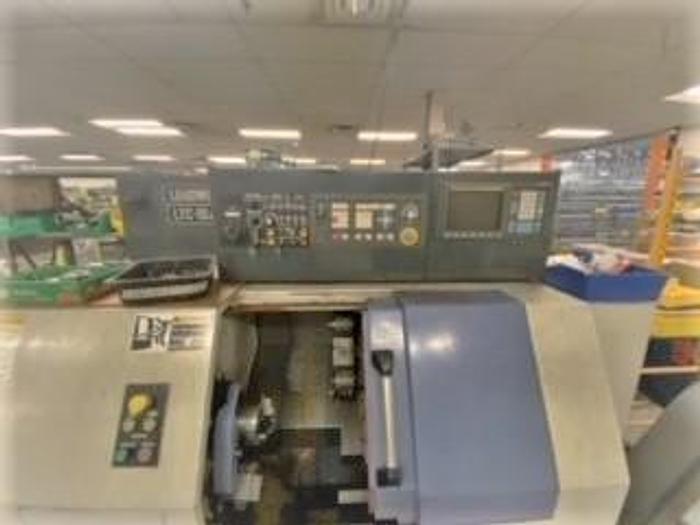

1996 Leadwell LTC-10AP
No longer available
1996 Leadwell LTC-10AP
$9,500 (USD)
New York, NY
Description
6" 3 Jaw Hydraulic Chuck
Tailstock

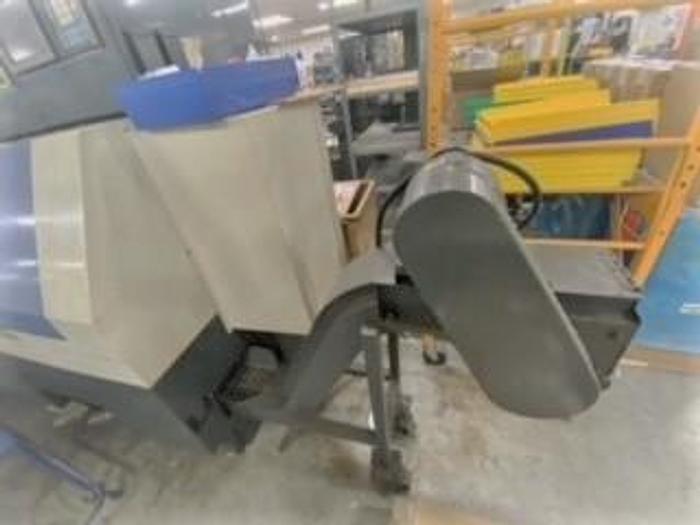

Chip Conveyor
Tool Presetter
Coolant System
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Leadwell |
| Model | LTC-10AP |
| Year | 1996 |
| Condition | Used |
| Stock Number | 118699 |
| Machine Control | Fanuc 0T |
| Chuck Size | 6" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 14.76" |
| Maximum Turning Diameter | 7.87" |
| Maximum Turning Length | 13.7" |
| X-axis travel | 4.5" |
| Z-Axis Travel | 13.7" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 1.75" / 1.3" |
| Spindle Motor | 7.5 HP |
| Spindle Speed | 45 - 4,500 RPM |
| Number of Tool Positions | 12 Position Turret |
| Tailstock Quill Travel | 3" |
| Machine Dimensions LxWxH | 92" x 70" x 74" |
| Machine Weight | 6,300 lbs. |
