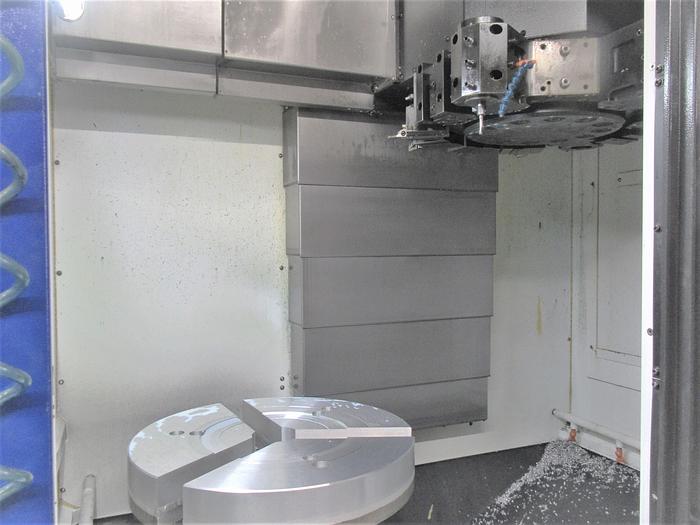

2019 Hyundai Wia LV800R
No longer available
2019 Hyundai Wia LV800R
$174,950 (USD)
Location:California
Description
18" 3 Jaw Hydraulic Chuck Chip Conveyor
Inch/Metric Conversion Coolant System with Tank & Pump Telescopic Way Guards
USB Port Interface
RS 232 Port Interface All Available Manuals All Available Tooling
Specifications
| Manufacturer | Hyundai Wia |
| Model | LV800R |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118694 |

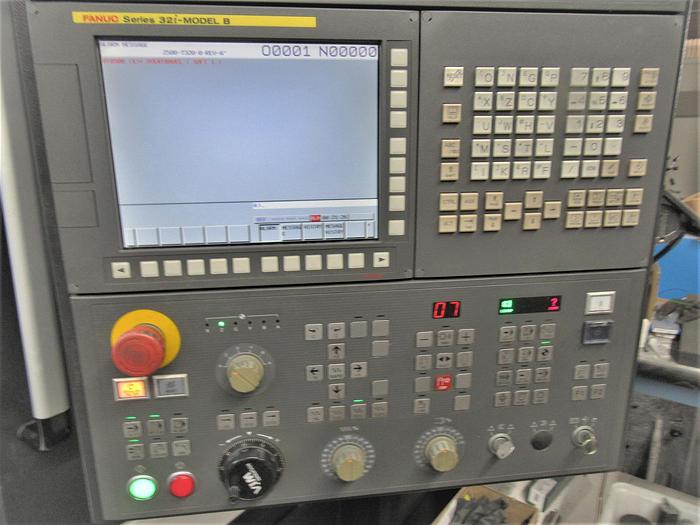

| Control | Fanuc 32i-B |
| Table Diameter | 18" Hydraulic Chuck |
| Maximum Swing | 35" |
| Maximum Turning Diameter | 31.5" |
| Maximum Turning Length | 31.5" |
| Spindle Nose | A2-11" |
| Table Speed | 2,000 RPM |
| Table Motor | 50 HP |
| Number of Turret Positions | 12 Station Turret |
| Machine Dimensions | 78" x 112" x 132" |
| Machine Weight | 24,251 lbs. |
