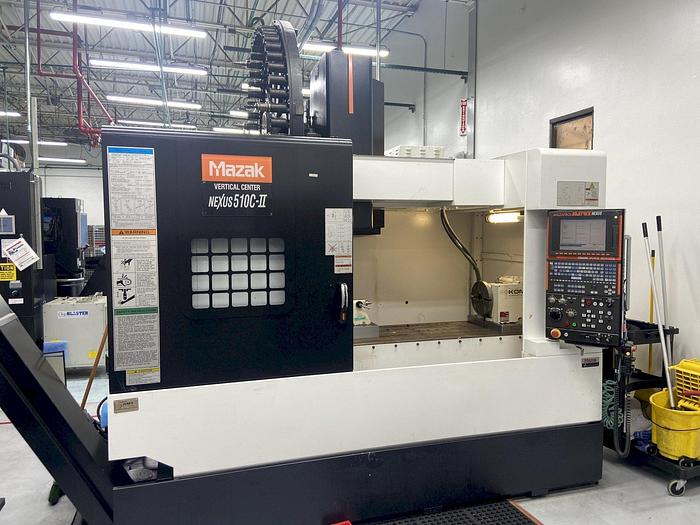

2011 Mazak Nexus VCN 510C II
No longer available
2011 Mazak Nexus VCN 510C II
$74,500 (USD)
Location:Michigan
Description

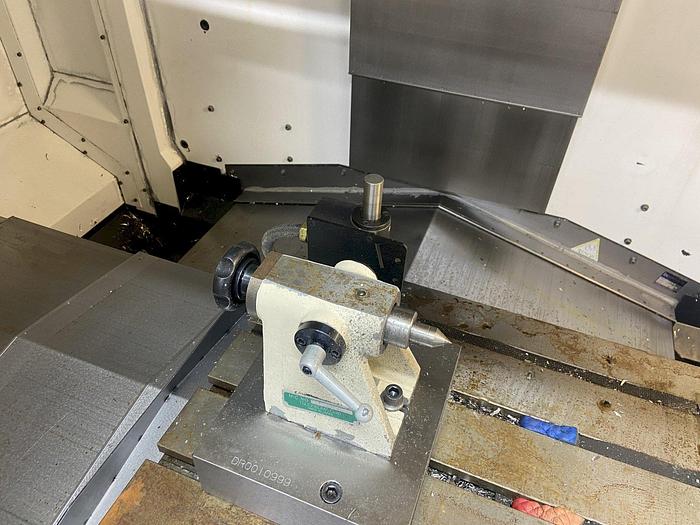

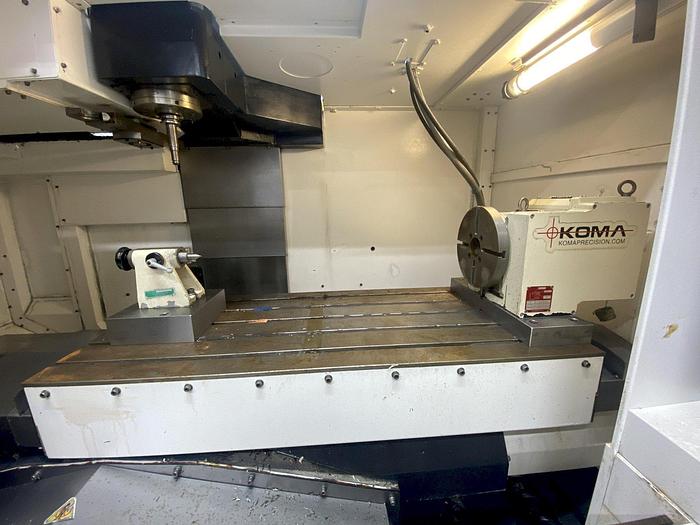

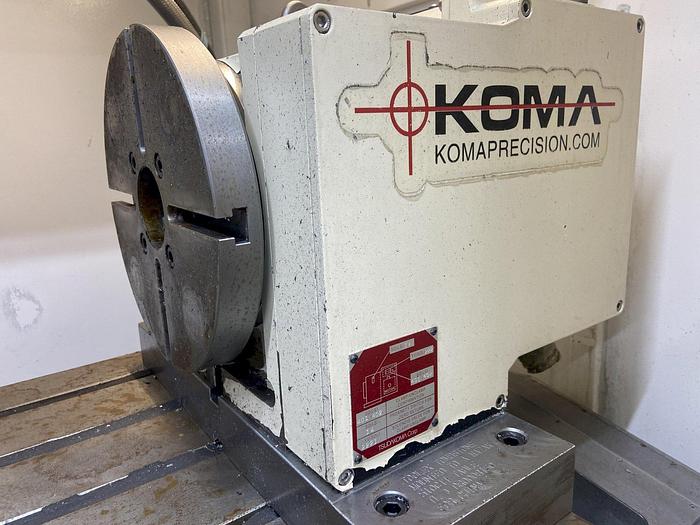

Koma 4th Axis Rotary Table with Tailstock
4th Axis Ready
Automatic Tool Length Measurement Probe

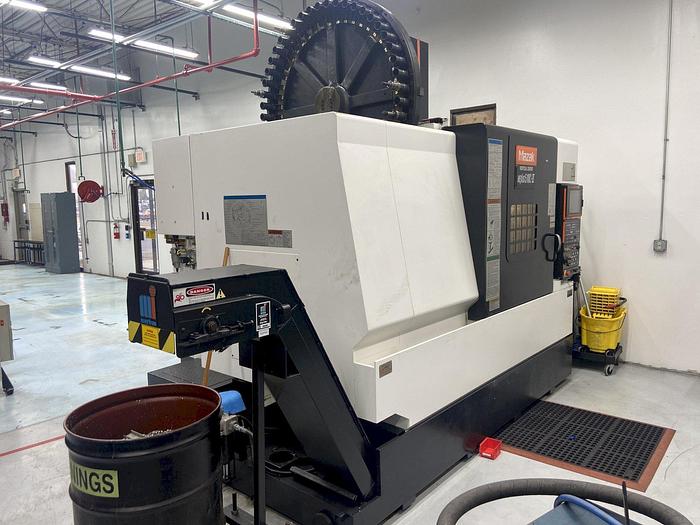

Chip Conveyor
48 Station Side Mounted Tool Changer Remote Hand Held MPG
Coordinate Rotation & Scaling Rigid Tapping
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Tilted Work Plane
Threading
Shape Compensation
Spiral Interpolation
G54.1 (Second Home Position) G-00 Slope Constant Mazzac2D Software G-61.1 PCMCIA Interface 2 Slots USB Port Interface 3.5" Floppy Disk Drive Interface RS-232 Port Interface Multi Tap Transformer
Coolant Tank with Pump
Specifications
| Manufacturer | Mazak |
| Model | Nexus VCN 510C II |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118692 |

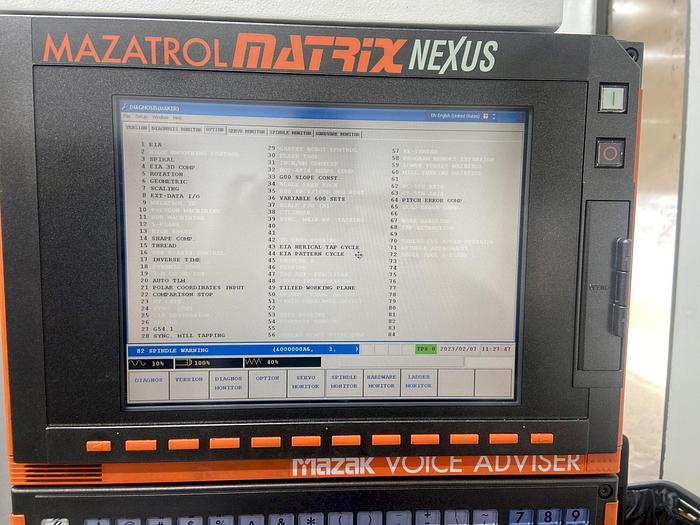

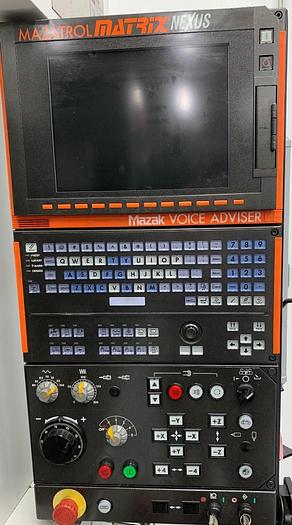

| Control | Mazatrol Matrix Nexus |
| Table Size | 51.18" x 21.65" |
| Maximum Table Load | 2,646 lbs. |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Distance Spindle Nose to Table Top | 5.9" - 25.98" |
| Number of Tool Positions | 48 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.8" / 17 lbs. |
| Tool Change Time Tool to Tool | 1.3 seconds |
| Rapid Traverse Rates | 1,417 IPM |
| Machine Dimensions | 113" x 111" x 113" |
| Machine Weight | 17,180 lbs. |
