2008 Mighty Viper VT-33BL
No longer available
2008 Mighty Viper VT-33BL
$35,000 (USD)
Location:Texas
Description
15" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tailstock
Machine Status Condition Lights
Card Interface
RS232 Port Interface
Coolant Tank with Pump
Chuck Pedal
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mighty |
| Model | Viper VT-33BL |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118683 |

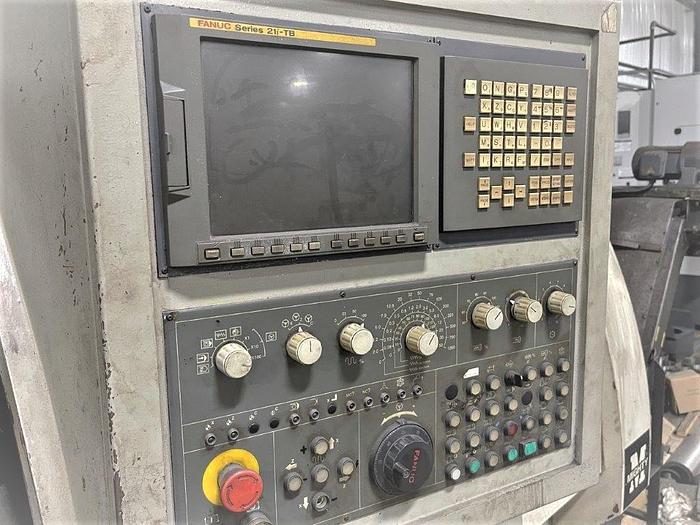

| Control | Fanuc 21i-TB |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 26.8" |
| Maximum Cutting Diameter | 18.9" |
| Maximum Machining Length | 41.3" |
| Distance Between Centers | 43" |
| X-Axis Travel | 12.63" |
| Z-Axis Travel | 42.9" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 5.15" / 4.52" |
| Spindle Speeds | 2,400 RPM |
| Spindle Motor | 50 HP - Geared |
| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 787 IPM / 944 IPM |
| Tailstock Body Travel / Quill Travel | 35.4" / 3.9" |
| Tailstock Center | MT #5 |
| Machine Dimensions LxWxH | Not Available |
| Machine Weight | 17,850 lbs. |
