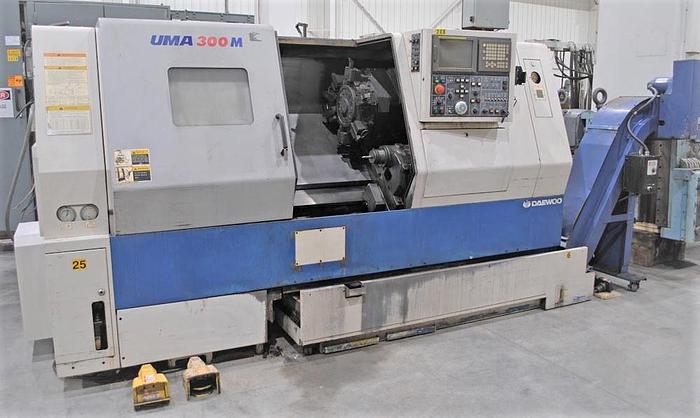

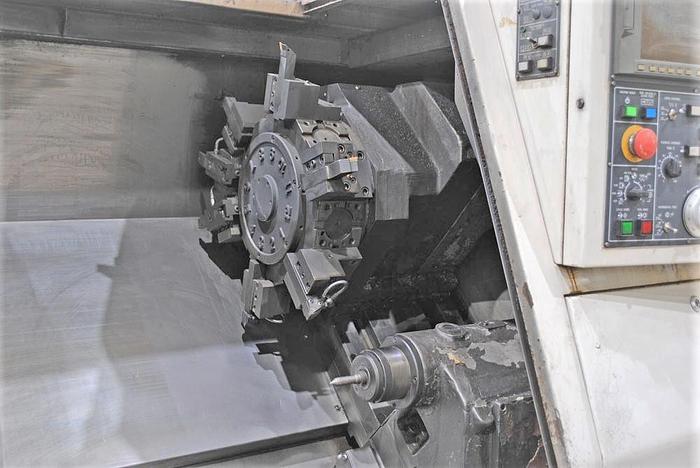

2000 Daewoo Puma 300MB
No longer available
2000 Daewoo Puma 300MB
$26,500 (USD)
Location:Michigan
Description

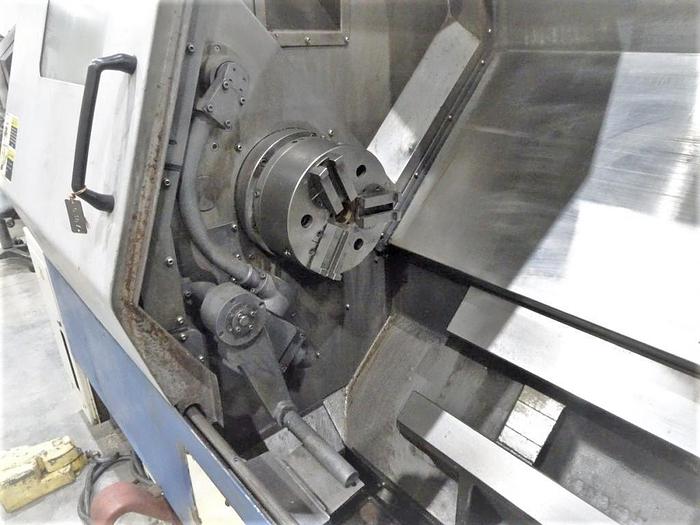

10" 3 Jaw Hydraulic Chuck Programmable Tailstock

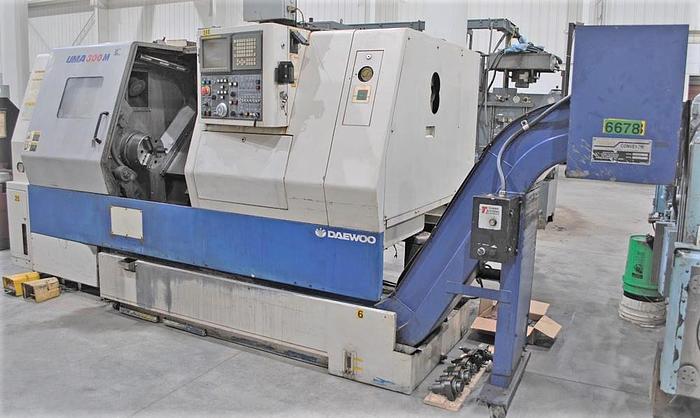

Tool Presetter Chip Conveyor
Parts Catcher Coolant System with Tank & Pump

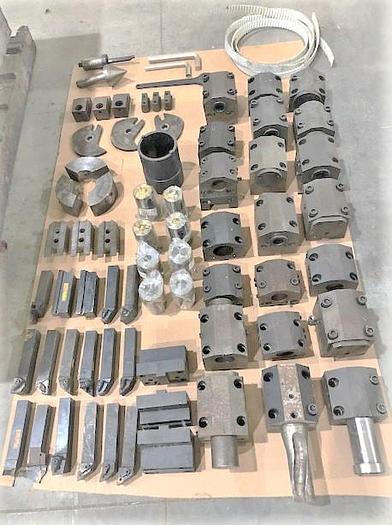

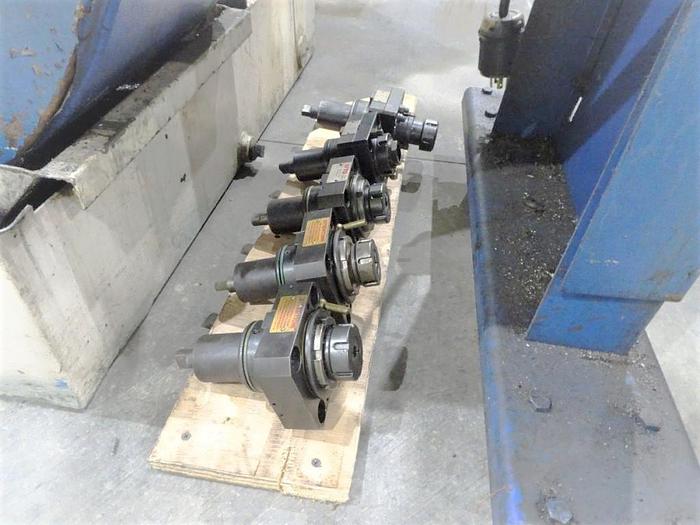

Hard Disk Interface RS 232 Port Interface All Available Tooling includes (5) Live Holders All Available Manuals

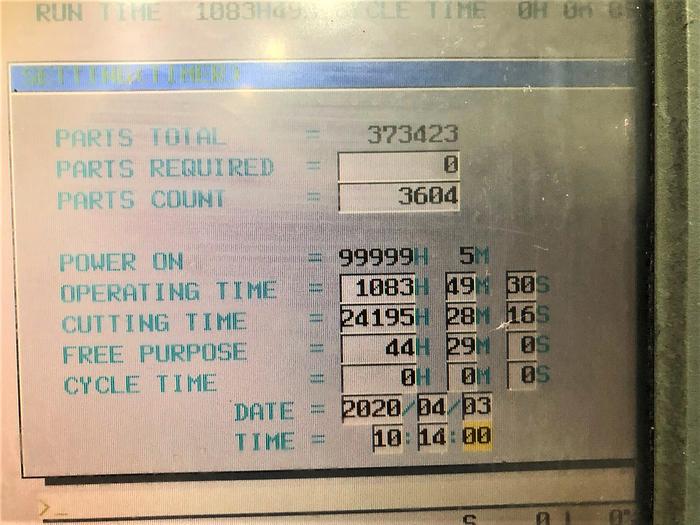

**Cutting Time 24,195 Hrs.**
Specifications
| Manufacturer | Daewoo |
| Model | Puma 300MB |
| Year | 2000 |
| Condition | Used |
| Stock Number | 118678 |
| Control | Fanuc 18i-T |
| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing over Bed | 23.23" |
| Maximum Swing Over Cross Slide | 17.72" |
| Maximum Turning Length | 22.95" |
| Maximum Bar Capacity | 3.03" |
| X-Axis Travel | 9.84" |
| Z-Axis Travel | 25.77" |
| Spindle Nose / Spindle Bore | A2-11" / 3.54" |
| Spindle Speeds | 35 - 3,500 RPM |
| Spindle Motor | 25 HP |
| Transmission | 2 Speed Gearbox |
| Rotary Tool Speeds | 40 - 4,000 RPM |

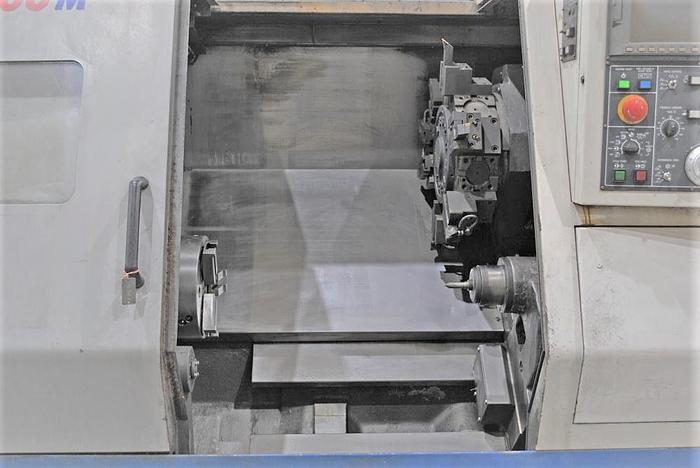

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |
| Tailstock Quill Travel / Taper | 3.94" / MT #5 |
| Machine Dimensions | 135" x 71" x 72" |
| Machine Weight | 13,000 lbs. |
