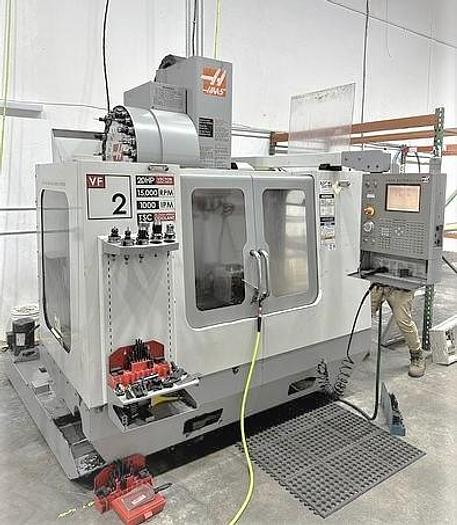

2006 Haas VF-2D with 15,000 RPM Spindle
No longer available
2006 Haas VF-2D with 15,000 RPM Spindle
$39,500 (USD)
Location:Massachusetts
Description

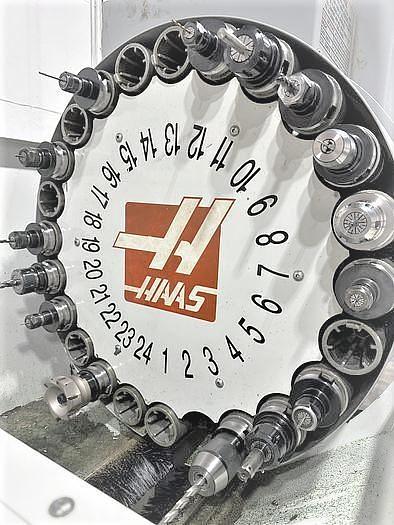

24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring

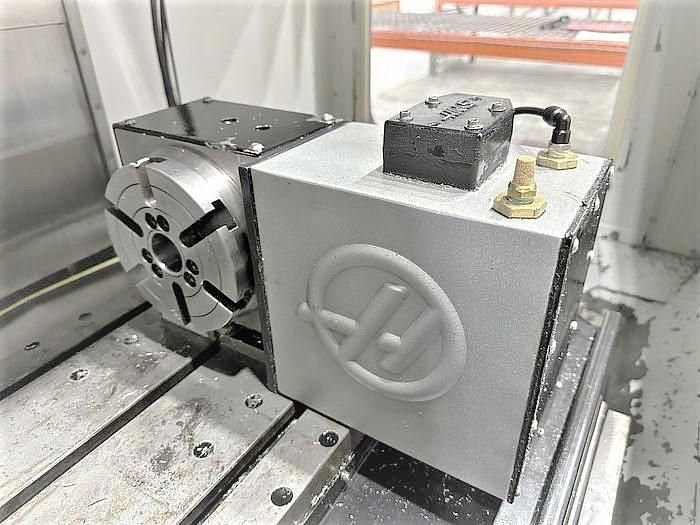

Haas HRT-210 4th Axis Rotary Table
15,000 RPM Spindle
Coolant Through the Spindle (300 PSI)
Spindle Orientation
Coordinate Rotation & Scaling
High Speed Machining
Rigid Tapping
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Brushless Servo Motors
Direct Drive Spindle
**Note, this machine has a BT40 taper spindle**

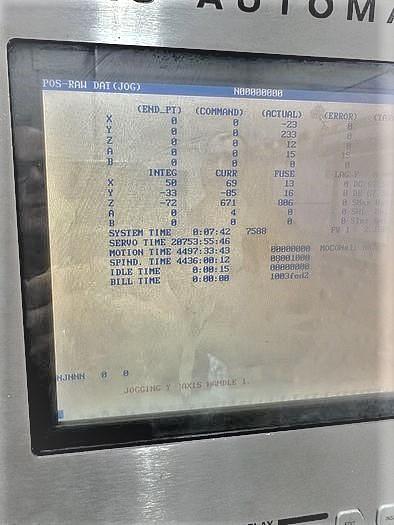

**Motion Hours 4,497**
**Spindle Hours 4,436**
Specifications
| Manufacturer | Haas |
| Model | VF-2D with 15,000 RPM Spindle |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118677 |
| Table Size | 36" x 14" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Spindle Taper | BT 40 |
| Spindle Speed | 15,000 RPM - Direct Drive |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 24 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions LxWxH | 88" x 92.5" x 100" |
| Machine Weight | 9,500 lbs |
