2013 Haas ST-40L with Milling Capability

No longer available

2013 Haas ST-40L with Milling Capability



Full C Axis Spindle Rotation

High Torque Live Milling/Drilling Capability

Extended Tool Pocket

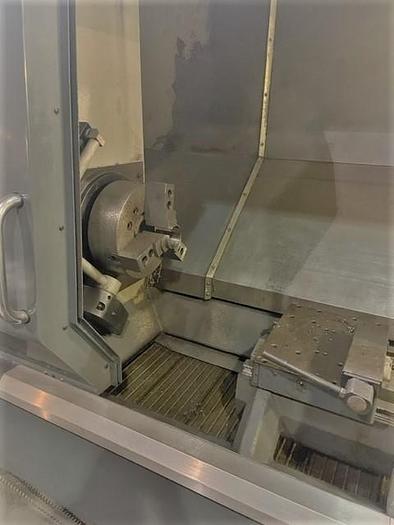

15" 3 Jaw Hydraulic Chuck

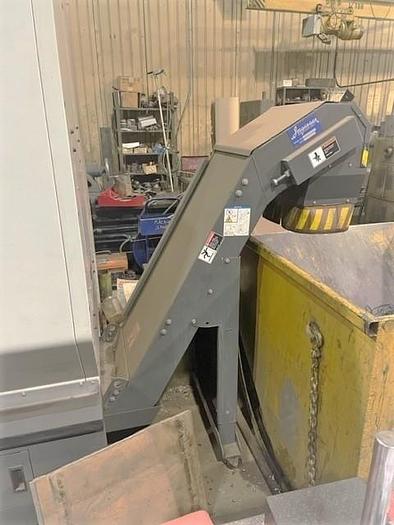

Chip Conveyor - Belt Style

Tool Presetter

Remote Jog Handle w/ Color LCD

55 HP Extra Performance Package

Programmable Tailstock

Steady Rest Provision

High Pressure Coolant System

Haas Intuitive Programming System

12 Station Hybrid BOT Turret 2 Speed Geared Headstock

Ethernet Interface

USB Port Interface RS 232 Port Interface Rigid Tapping 15" Color LCD Monitor

All Available Static & Live Holders

Wired 195-260V Electrics

**1,318 Run Hours**

**1,439 Cutting Hours**


ModelST-40L with Milling Capability
Stock Number118671

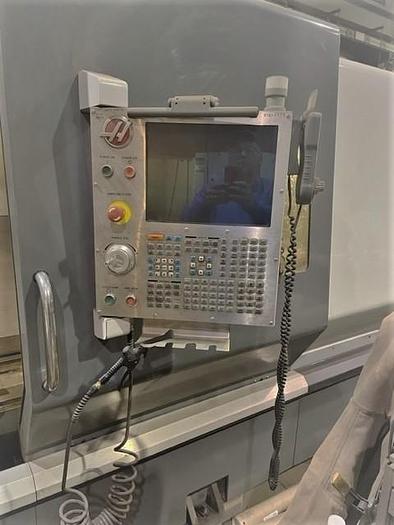

ControlHaas 32 BIT
Chuck Size15" 3-Jaw
Maximum Swing34.5"
Maximum Swing Over Cross Slide25.5"
Distance Between Centers80"
X-Axis Travel17"
Z-Axis Travel80"
Spindle Nose / Spindle Bore / Bar CapacityA2-8" / 4.62" / 4.02"
Spindle Speed2,400 RPM
Spindle Motor55 HP
Milling Spindle Speed6,000 RPM
Number of Turret Positions12 Position BOT Turret
Rapid Traverse Rates710 IPM
Tailstock Center#5 MT
Machine Dimensions LxWxH217" x 94" x 105"
Machine Weight27,000 lbs
