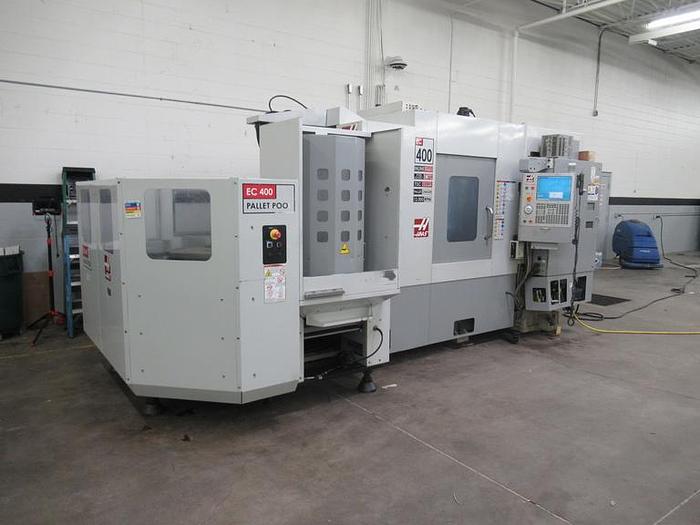

2008 Haas EC-400 6-Pallet Pool
2008 Haas EC-400 6-Pallet Pool
Contact us for price
Minnesota
orCall (863) 439-6066
Description

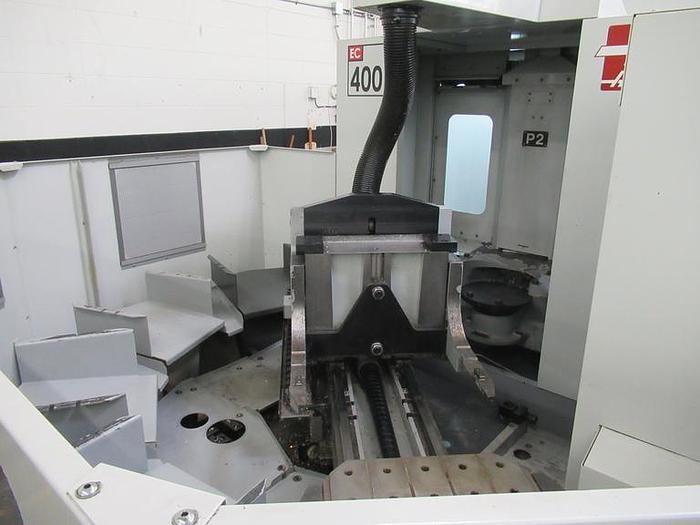

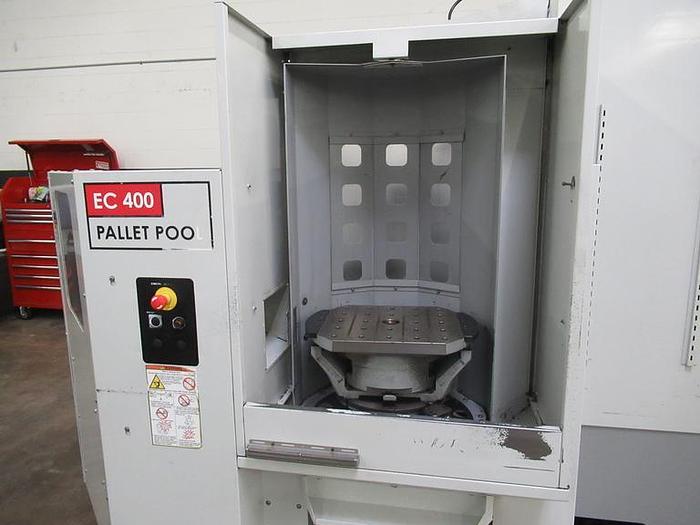

6 Pallet Pool Configuration with 6 Drilled and Tapped Pallets

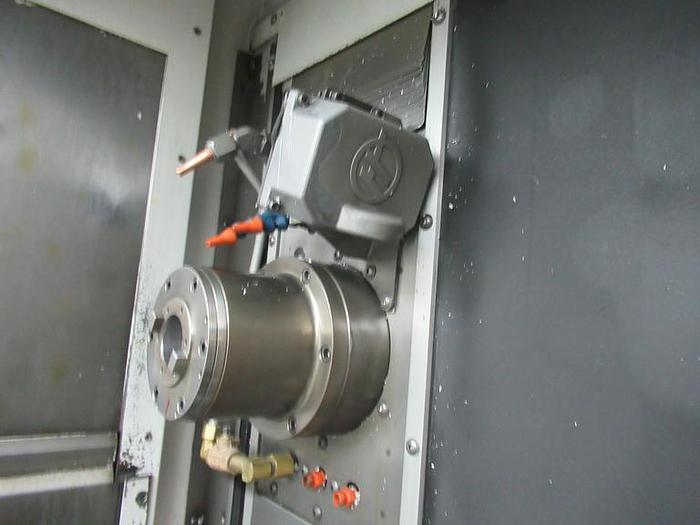

Inline Spindle

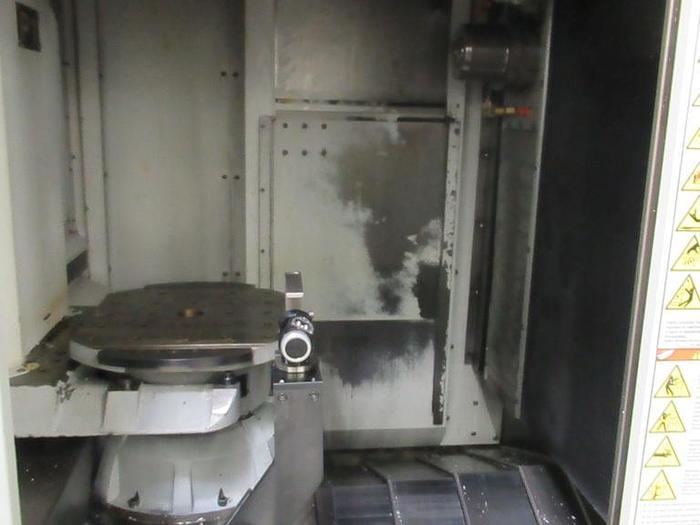

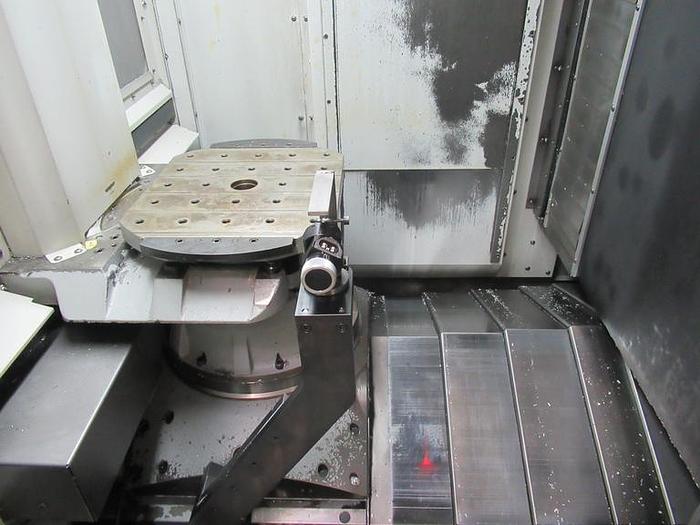

Full 4th Axis Rotary Table
70 Station Tool Changer
Coolant Thru the Spindle - 300 PSI

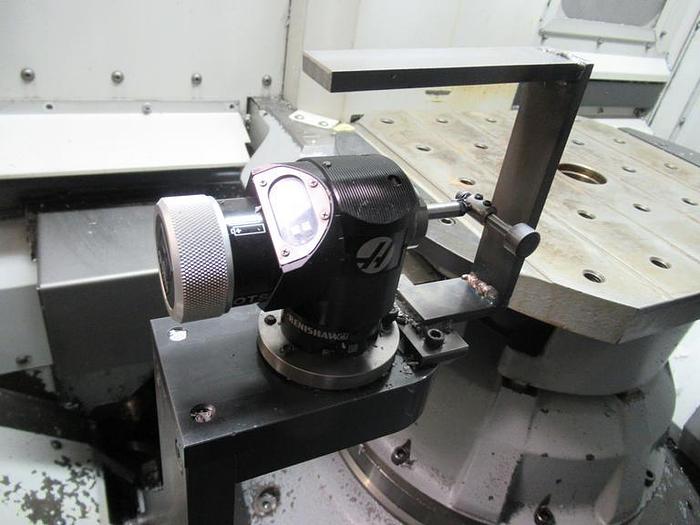

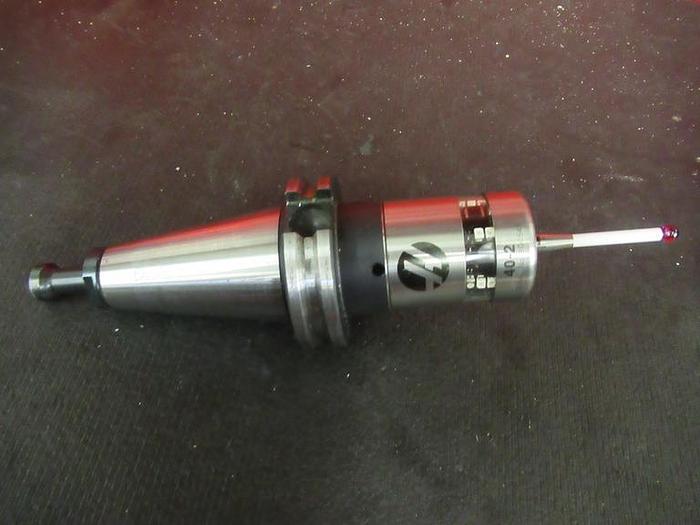

Renishaw Tool and Part Probe
High Speed Machining
Programmable Coolant Nozzle
Remote Jog Handle w/LCD Screen
Second Home Position
Through the Tool Air Blast
16 mb Expanded Programming Memory
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Part Program Storage

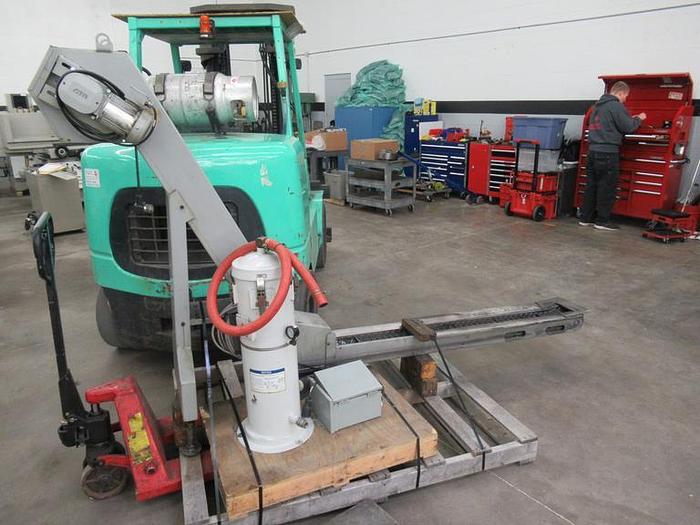

Chip Conveyor
Ethernet Port
USB Port Interface
195/260 Volts 3-Phase
All Available Manuals
*Price new as equipped at $331,355
Mfg Date 12/2008
Specifications
| Manufacturer | Haas |
| Model | EC-400 6-Pallet Pool |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118671 |

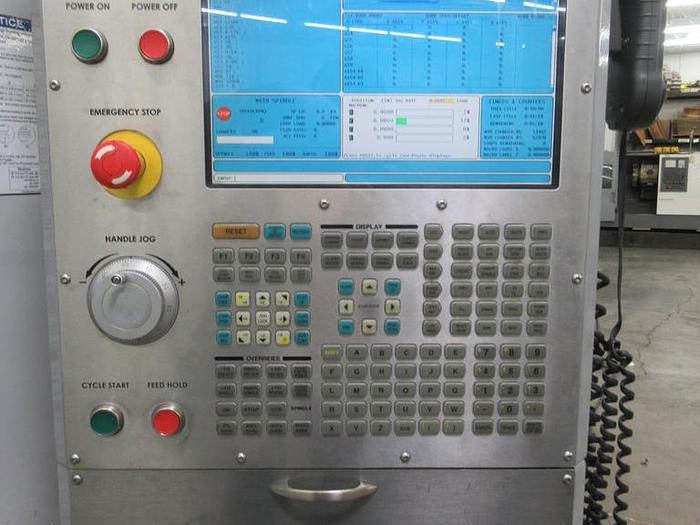

| Machine Control | Haas w/Coldfire Processor |
| Table Size / Number of Pallets | 15.75" x 15.75" / 6 Pallet Changer |
| Maximum Table Load | 880 lbs |
| Pallet Indexing | .001 Degrees Full 4th |
| Pallet Change Time | 8 Seconds |
| X-Axis Travel | 22" |
| Y-Axis Travel | 25" |
| Z-Axis Travel | 22" |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 30 HP Vector Direct Drive |
| Tool Magazine Capacity | 70 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs |
| Tool Change Time Tool to Tool | 1.6 Sec |
| Rapid Traverse Rates | 1,000 IPM |
| Cutting Feedrates | 833 IPM |

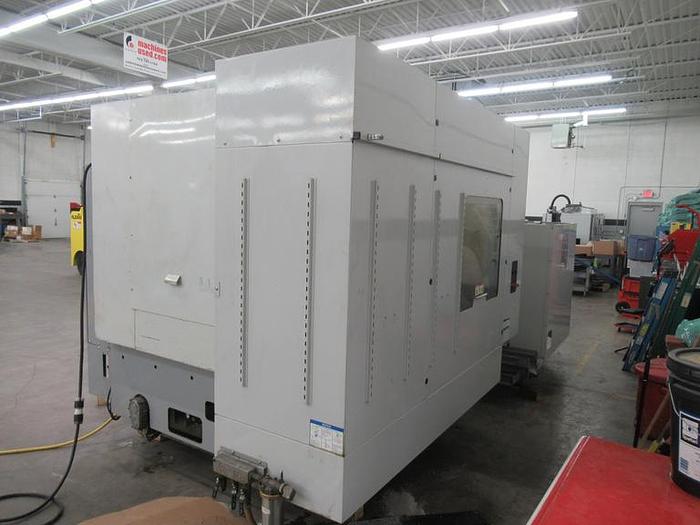

| Machine Dimensions LxWxH | 202" x 102" x 113" |
| Pallet Pool Dimensions | 127" x 91" x 85" |
| Machine Weight | 31,200 lbs all together |
