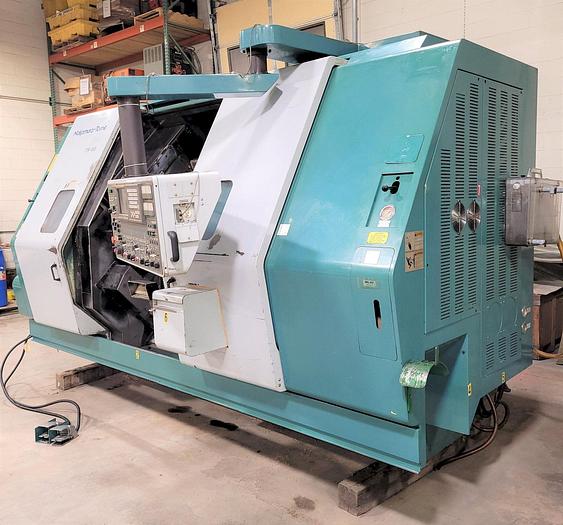

1996 Nakamura Tome TW-30MM
No longer available
1996 Nakamura Tome TW-30MM
$42,500 (USD)
Location:Illinois
Description
Twin Facing Spindle Design Live Milling / Drilling Capability on Both Turrets Collet Chucks - Both Spindles Barfeed Interface FMB Turbo 8-80/4200 Bar Feed Unit (new in 2007)
Chip Converyor
Parts Catcher Coolant Tank with Pumps RS232 Port Interface Collection of both static and live tool holders All Available Manuals
Specifications
| Manufacturer | Nakamura Tome |
| Model | TW-30MM |
| Year | 1996 |
| Condition | Used |
| Stock Number | 118668 |

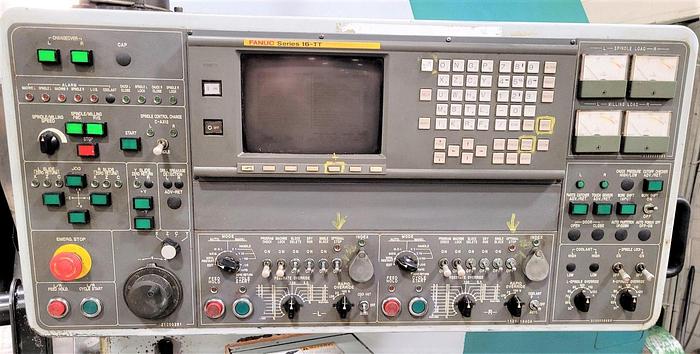

| Control | Fanuc 16TTA Control |

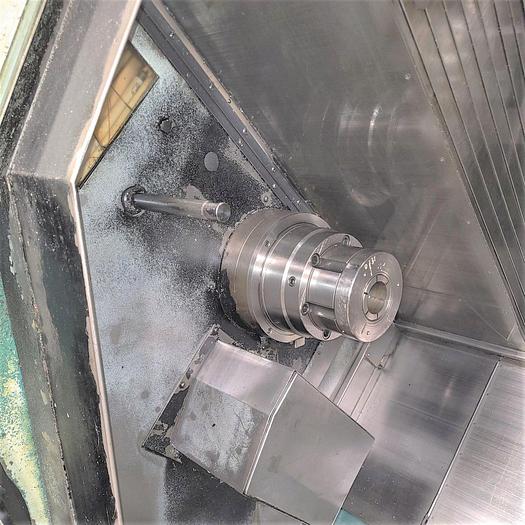

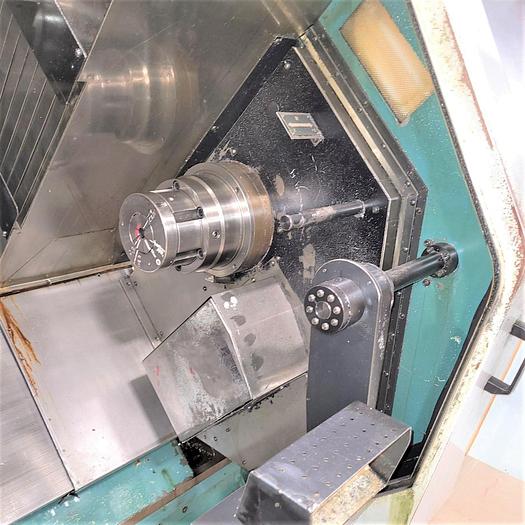

| Chuck Type Left / Right Spindle | Collet Chuck / Collet Chuck |
| Maximum Turning Diameter | 11.02" |
| Maximum Turning Length | 11.81" |
| Maximum Bar Capacity Left Side / Right Side | 2.52" / 2.52" |
| X-Axis Travel (Both Sides) | 9.06" |
| Z-Axis Travel (Left / Right) | 13.78" / 36.61" |
| C Axis Spindle Rotation - Both | Positioning |
| Spindle Nose / Spindle Bore Left / Right | A1-8" / 3.15" / 3.15" |
| Spindle Speed Left / Right | 3,500 RPM / 3,500 RPM |
| Spindle Motor - Both 30 minutes/continuous | 25 HP / 20 HP |
| Rotary Tool Speed / Rotary Motor | 3,600 RPM / 5 HP |

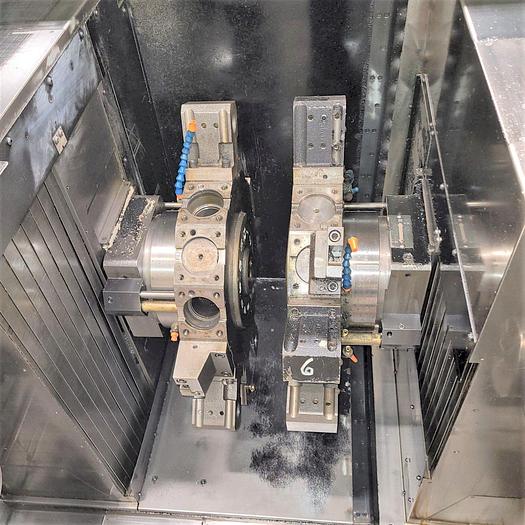

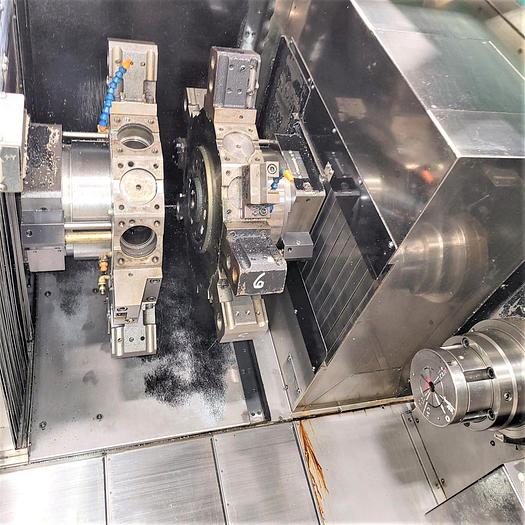

| Number of Turret Positions - Both | 12 Station each |
| Rapid Traverse Rates X / Z | 472 IPM / 945 IPM |
| Machine Dimensions | 144" x 79" x 78" |
| Machine weight | 20,000 lbs. |
