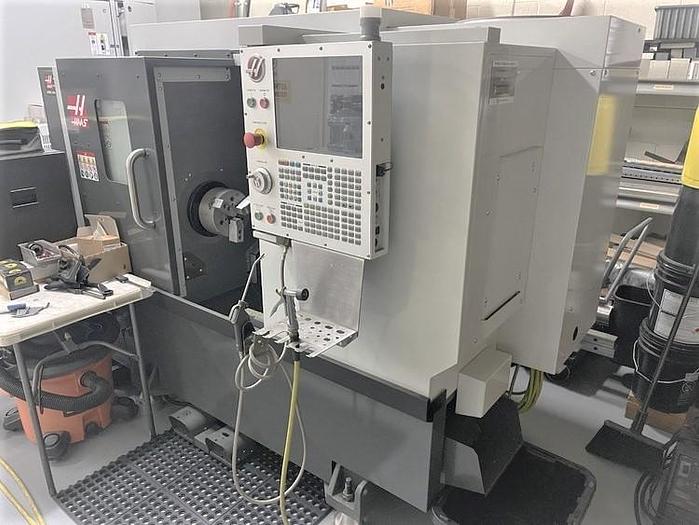

2018 Haas ST-15
No longer available
2018 Haas ST-15
Location:Arizona
Description
8.3" 3 Jaw Hydraulic Chuck
Tailstock
Rigid Tapping
Coolant System with Tank & Pump
1 GB Program Memory
Early Power Failure Detection Module
Memory Lock Key Switch
Ethernet Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Haas |
| Model | ST-15 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118666 |

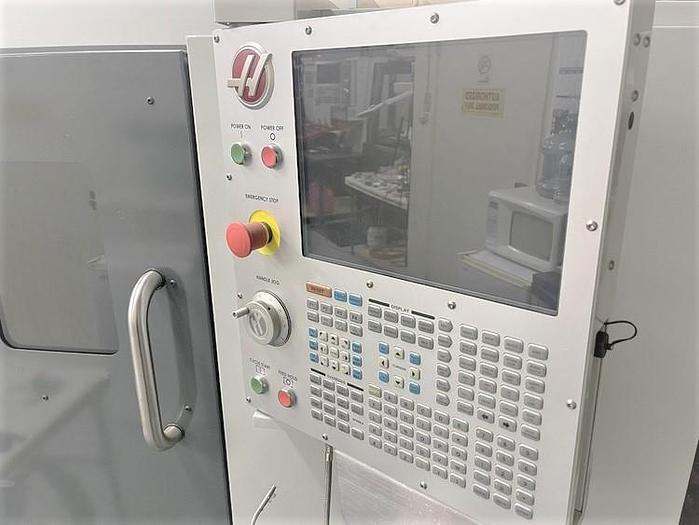

| Machine Control | Haas NexGen Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 25.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 16" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 16" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Maximum Spindle Torque | 150 ft./lbs. @ 500 RPM |

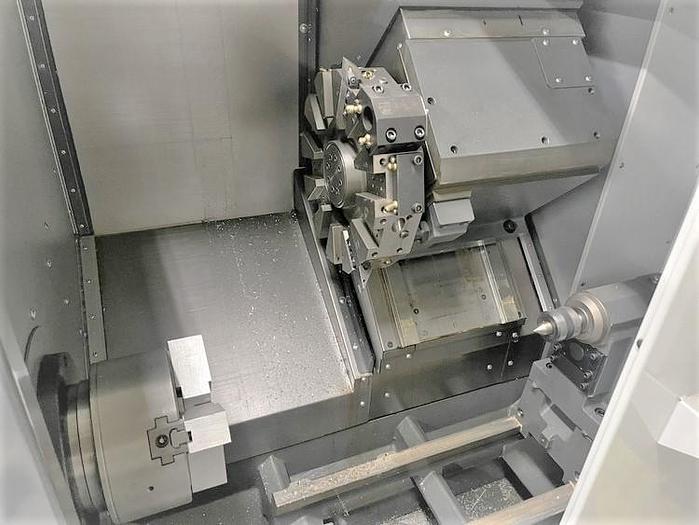

| Number of Turret Positions | 12 Bolt on Style |
| Tailstock | Yes |
| Rapid Traverse Rates | 1200 IPM |
| Machine Dimensions LxWxH | 123" x 73" x 80" |
| Machine Weight | 7,900 lbs. |
