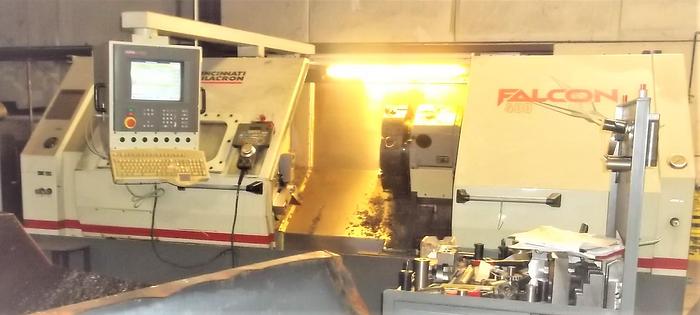

1997 Cincinnati Falcon 400
No longer available
1997 Cincinnati Falcon 400
$9,750 (USD)
Location:Tennessee
Description
Out of a Government Facility
Tool Eye
Chip Conveyor

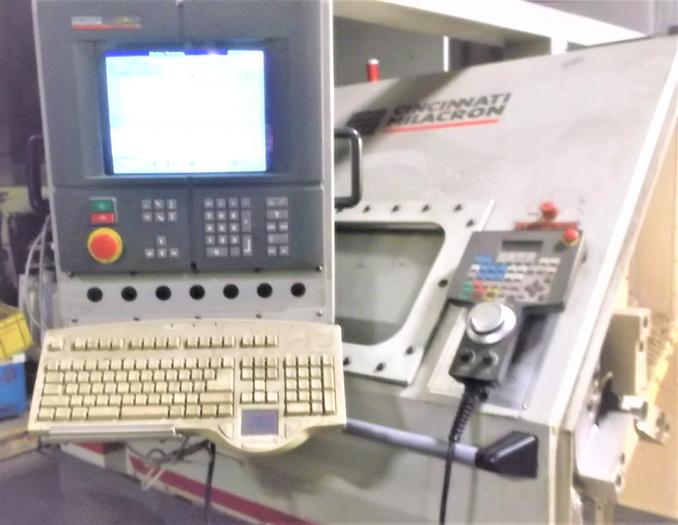

Remote Jog Handle
Tailstock
Coolant System
All Available Manuals
Specifications
| Manufacturer | Cincinnati |
| Model | Falcon 400 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 118651 |

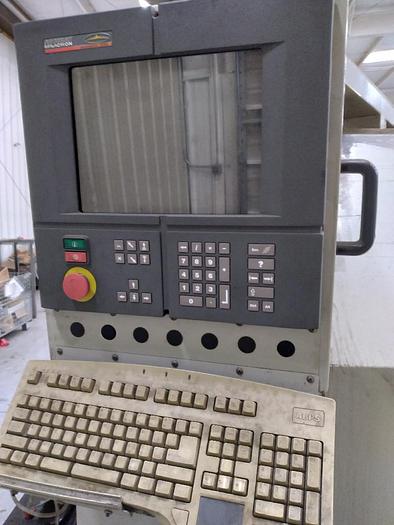

| Machine Control | Siemens 2100 |
| Chuck Size | 15" 3-Jaw |
| Maximum Swing | 25.59" |
| Maximum Machining Diameter | 19.2" |
| Center Distance | 48" |
| X-Axis Travel | 10.6" |
| Z-Axis Travel | 40.1" |
| Spindle Nose / Bore / Bar Capacity | A2-11 / 5" / 4.5" |
| Spindle Speeds | 23-2,250 RPM |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 8 Positions |
| Rapid Traverse Rates | 600 IPM |
| Machine Dimensions LxWxH | 163"x83"x77.8" |
| Machine Weight | 15,000 lbs |
