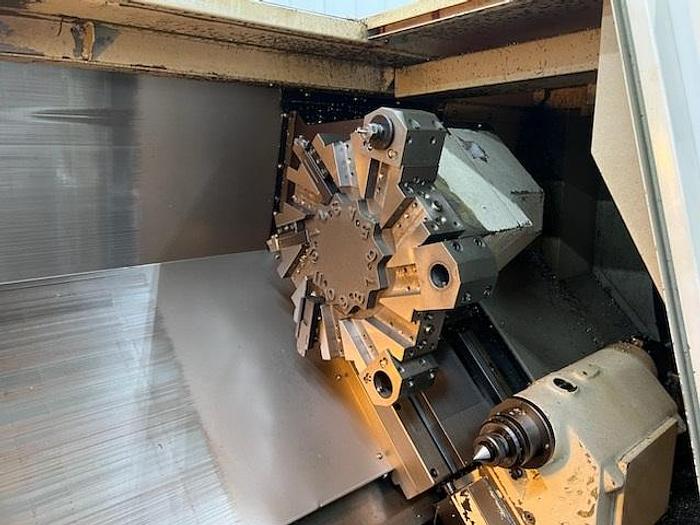

2000 Doosan/Daewoo Puma 300C
No longer available
2000 Doosan/Daewoo Puma 300C
$44,950 (USD)
Location:Georgia
Description
12" 3 Jaw Chuck with assorted Soft Jaws Programmable Tailstock
Tool Presetter Chip Conveyor
Parts Catcher Coolant Tank with Pump RS 232 Port Interface
PCMCIA Card Slot 3.5" Floppy Disk Drive Interface Wired 200/220V Electrics All Available Tooling including Turning Tools, Boring Bars & Inserts All Available Manuals
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 300C |
| Year | 2000 |
| Condition | Used |
| Stock Number | 118646 |
| Control | Fanuc 21i-TB |
| Chuck Size | 12" 3 Jaw Chuck |
| Maximum Swing over Bed | 23" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Turning Diameter | 15.7" |
| Maximum Turning Length | 24.8" |
| Maximum Bar Capacity | 4.58" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 26.8" |
| Spindle Nose / Bore / Bar Capacity | A2-11/ 4.53" / 4" |
| Spindle Speeds | 28 - 2,800 RPM |
| Spindle Motor | 35 HP |
| Transmission | 2 Speed Gearbox |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |
| Tailstock Quill Diameter / Travel | 3.94" / 3.94" |
| Machine Dimensions | 135" x 77" x 80" |
| Machine Weight | 13,892 lbs. |
