2004 Sharp SV-2420
2004 Sharp SV-2420
Contact us for price
Location:Florida
orCall (863) 439-6066
Description

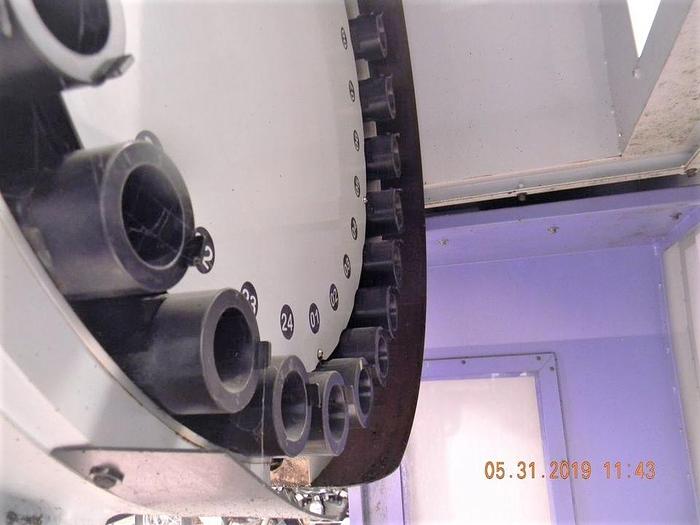

24 Station Side Mounted Tool Changer
Auger Style Chip Conveyor with Exit Chute

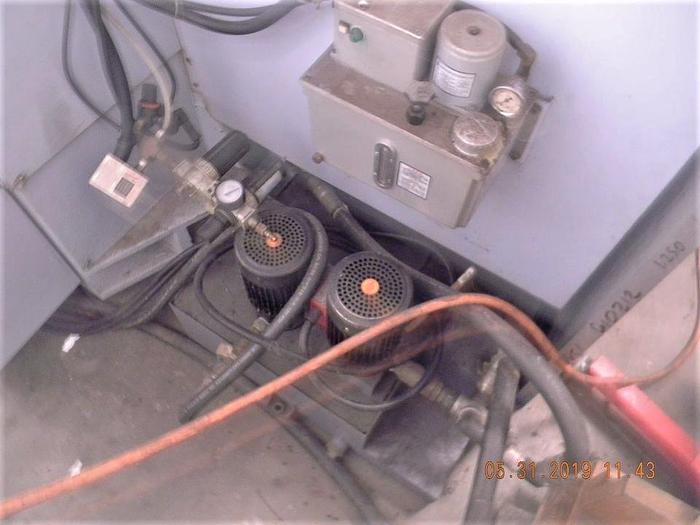

Coolant System with Tank & Pumps
Rigid Tapping
Automatic Lube System

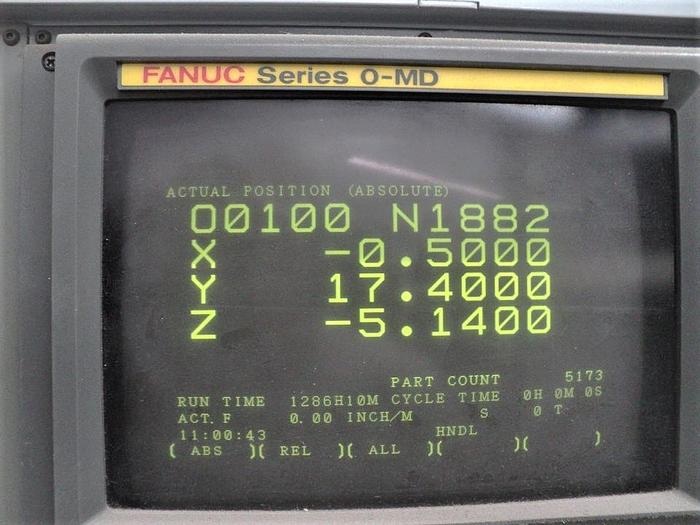

**ONLY 1,286 Run Hours**
**It has been used in a small motorcycle shop for the last 15 years or so, with very little usage on brass only. The machine holds good tolerances and well maintained.**
Specifications
| Manufacturer | Sharp |
| Model | SV-2420 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118644 |

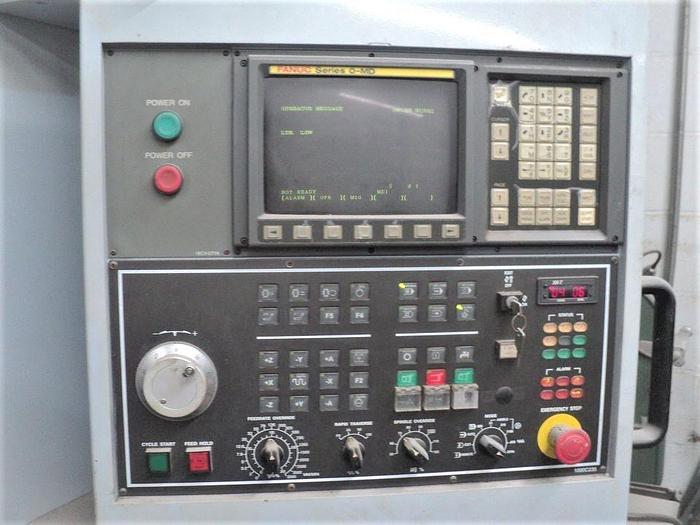

| Machine Control | Fanuc 0-MD |

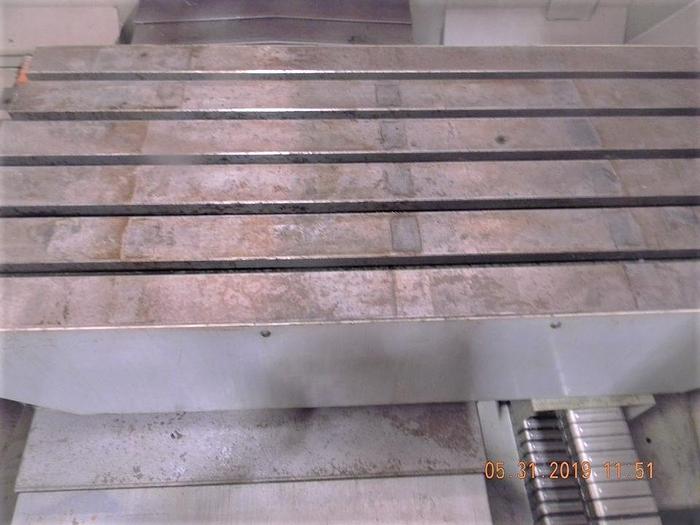

| Table Size | 26" x 16" |
| Maximum Table Load | 1,100 lbs |
| X-axis travel | 24" |
| Y-Axis Travel | 17.3" |
| Z-Axis Travel | 20" |
| Spindle Taper | #40 |
| Spindle Speed | 8,000 RPM |
| Spindle Motor | 15 HP |
| Tool Magazine Capacity | 24 Station Side Mounted ATC |
| Distance Spindle Nose to Table Top | 3"-23" |
| Machine Dimensions LxWxH | 108"x92"x93" |
| Machine Weight | 9,632 lbs |
