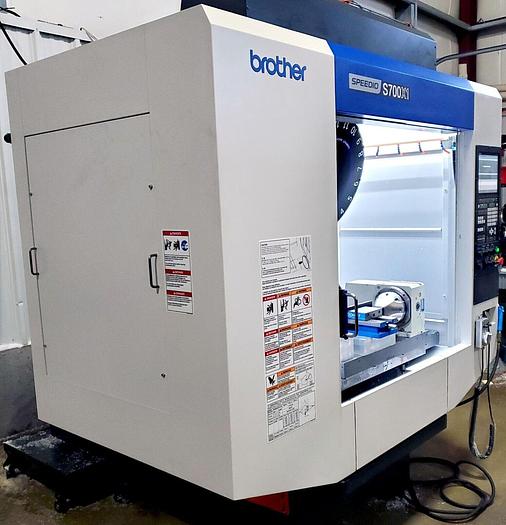

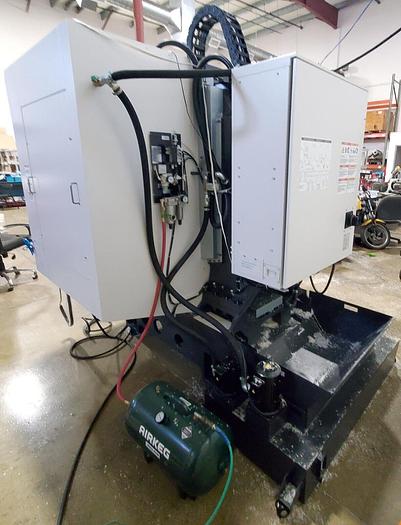

2019 Brother Speedio S700X1
No longer available
2019 Brother Speedio S700X1
Massachusetts
Description
4th Axis Prewire
Sankyo 4th Axis with Raptor Dovetail Clamp & Riser
Prepped for Coolant Thru the Spindle
Renishaw OMP Spindle Probe
Renishaw OTS Table Mounted Tool Setter
Manual Pulse Generator
High Speed High Accuracy Mode Option
Kurt Vice
Misc. Tool Holders
Tool Cart
Cut Mostly Plastic and some Aluminum
**Only 287 Cut time Hours**
Rigging is the responsibility of the buyer
Specifications
| Manufacturer | Brother |
| Model | Speedio S700X1 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118638 |
| Machine Control | CNC-C00 |
| Table Size | 31.5"x15.75" |
| Maximum Table Load | 300 lbs |
| X-axis travel | 27.6" |
| Y-Axis Travel | 15.7" |
| Z-Axis Travel | 11.8" |
| Spindle Taper | #30 |
| Spindle Speed | 16,000 rpm |
| Spindle Motor | 13.5 hp |
| Tool Magazine Capacity | 21 atc |
| Maximum Tool Diameter / Length / Weight | 4.3" / 9.8" / 6.6 lbs |
| Machine Dimensions | 81"x87"x98" |
| Machine Weight | 5,300 lbs |
