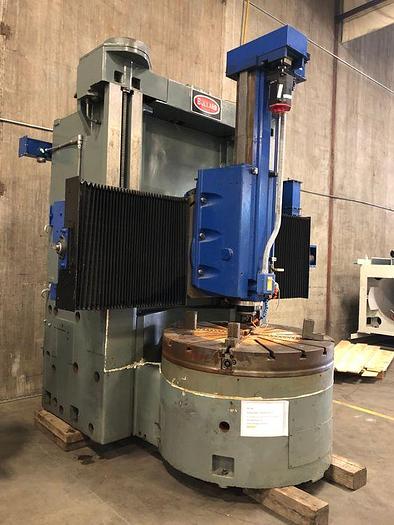

2014 Bullard Cutmaster 56" *Retrofitted & Rebuilt**
2014 Bullard Cutmaster 56" *Retrofitted & Rebuilt**
Contact us for price
Utah
orCall (863) 439-6066
Description
Complete Rebuild and Retrofitted with a Fanuc control in 2014 by Essex Machine Tool Services
10.4" Color LCD Monitor
New Ball Screws and Servo Motors
Spindle Speed and Feed Rate Override Switches
Manual Pulse Generator
Ethernet Port

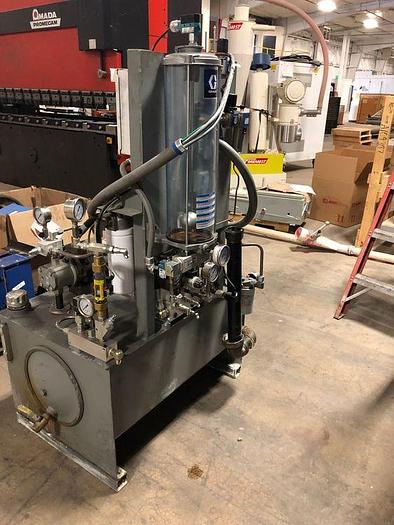

Complete Hydraulic Pump System
Way Lube System controlled by PMC Software
Coolant System

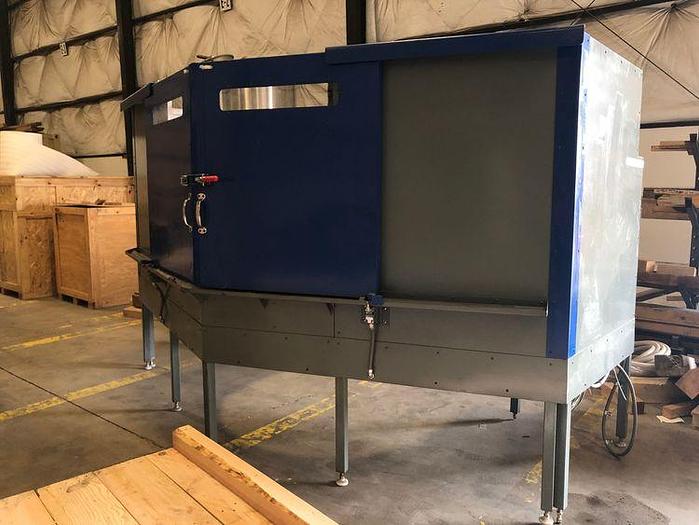

Full Chip Guard Enclosure w/Locking Solenoids
Cabinet Doors are both Mechanically & Electrically Interlocked
No Pit Required
480 Volts 60 HZ
**Cost over $280k for the Retrofit**
Specifications
| Manufacturer | Bullard |
| Model | Cutmaster 56" *Retrofitted & Rebuilt** |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118637 |
| Machine Control | Fanuc Oi-TD |
| Chuck Size | 56" 4-Jaw |
| Maximum Swing | 68.74" |
| Maximum Table Load | 17,600 lbs |
| Ram Travel | 60" |
| Ram Swivel | 30 Degrees |
| Maximum Turning Height | 60.99" |
| Table Speeds | 7 rpm to 250 rpm |
| Main Motor | 75 hp 2-Speed Ranges |
| Maximum feed rates | .01" to .25" |
| Machine Weight | Approximently 55,000 lbs |
