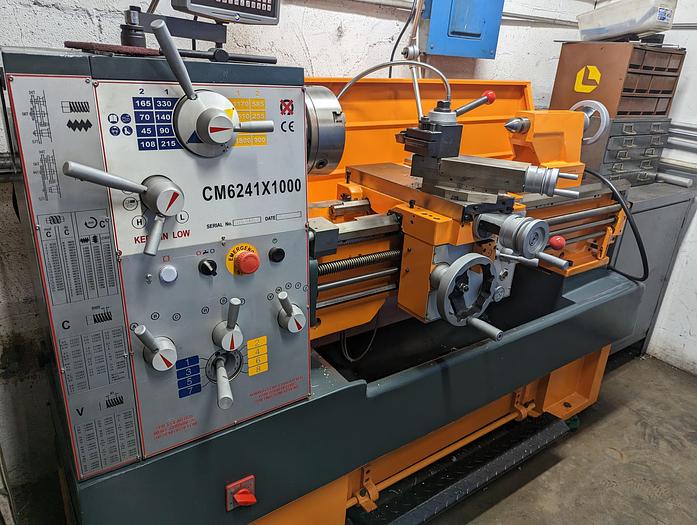

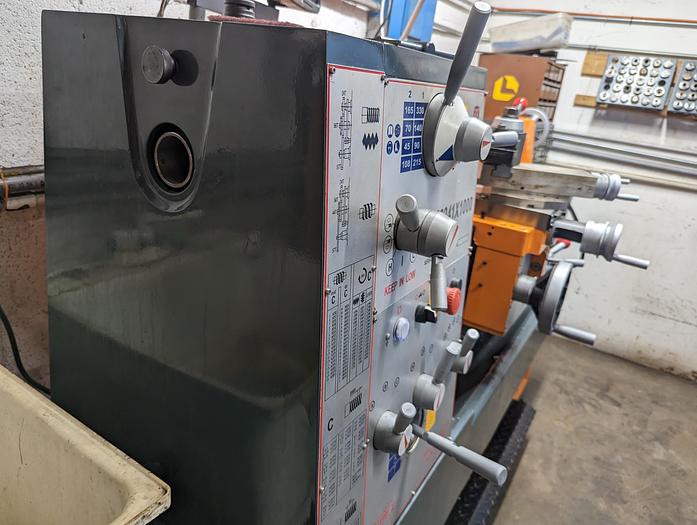

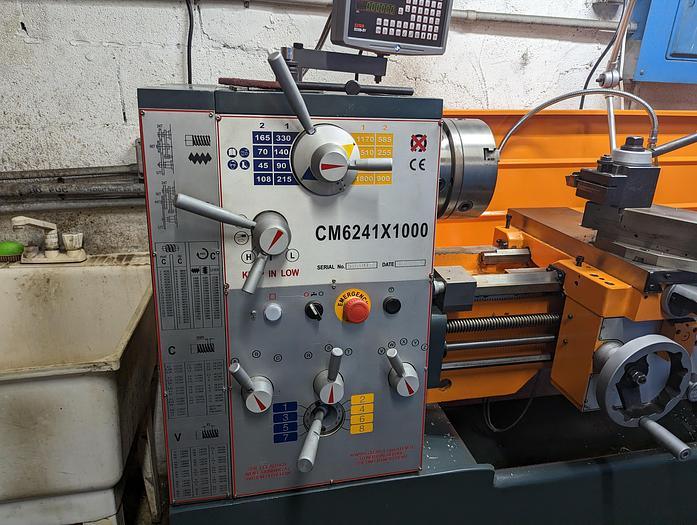

2015 WMT CNC Industrial CM6241 x 1000 Engine Lathe
No longer available
2015 WMT CNC Industrial CM6241 x 1000 Engine Lathe
$4,995 (USD)
Location:Florida
Description

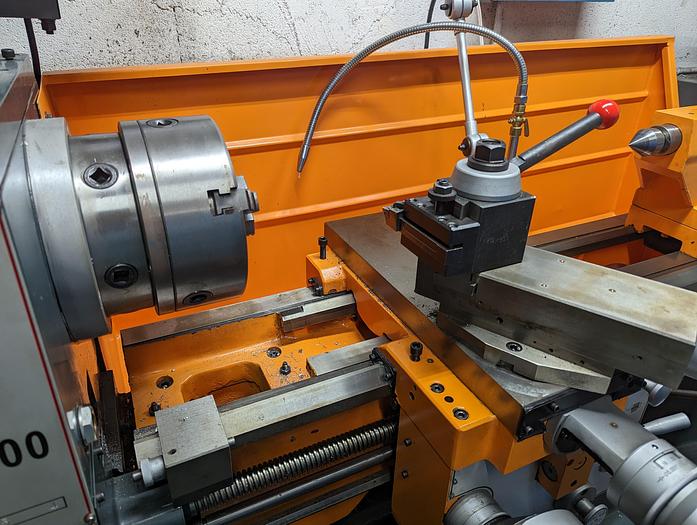

Tool Post

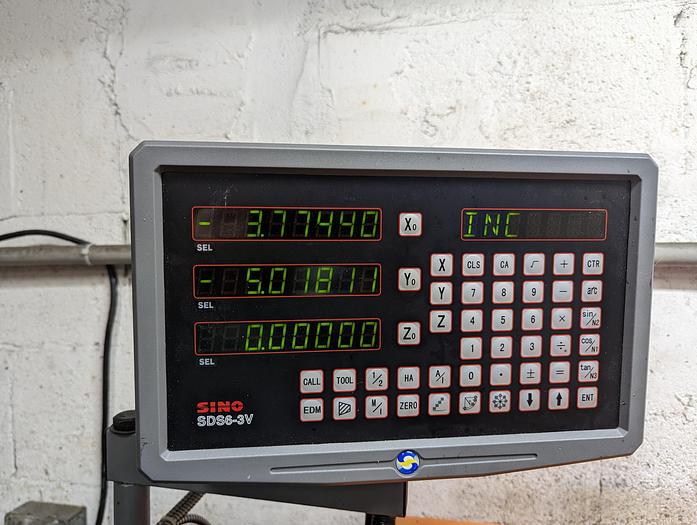

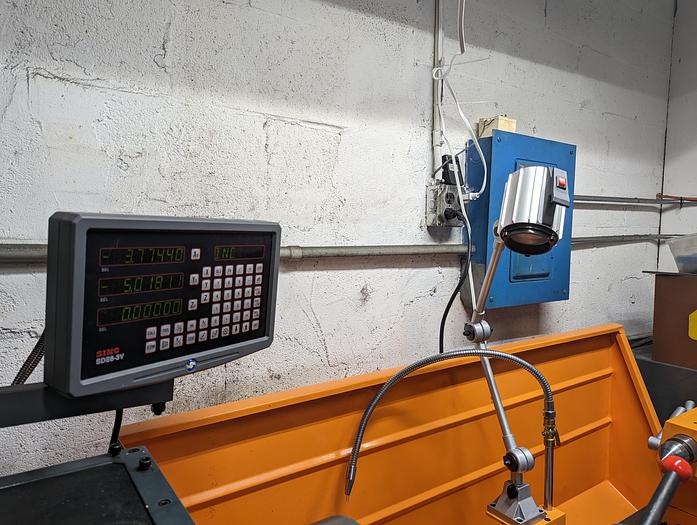

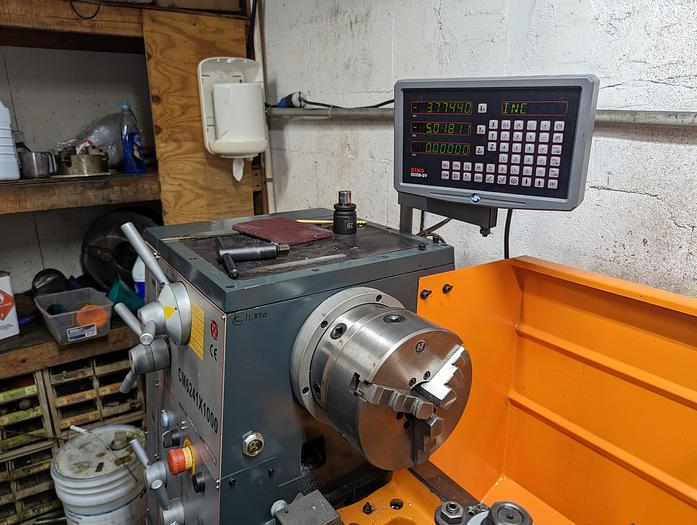

Sino Model SDS6 Digital Readout

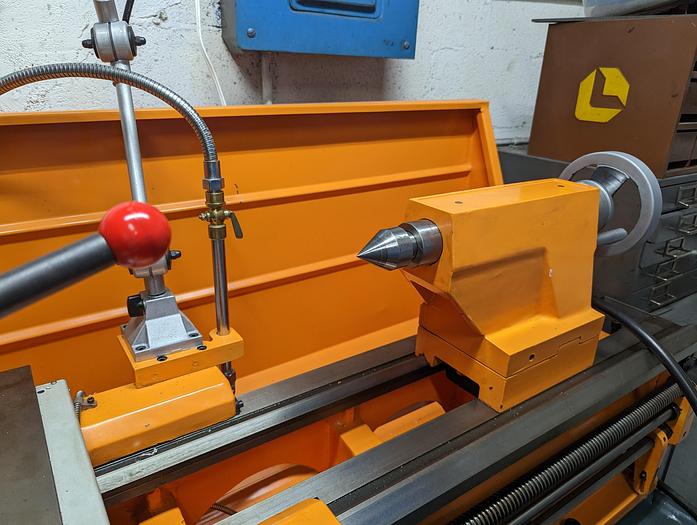

Tailstock

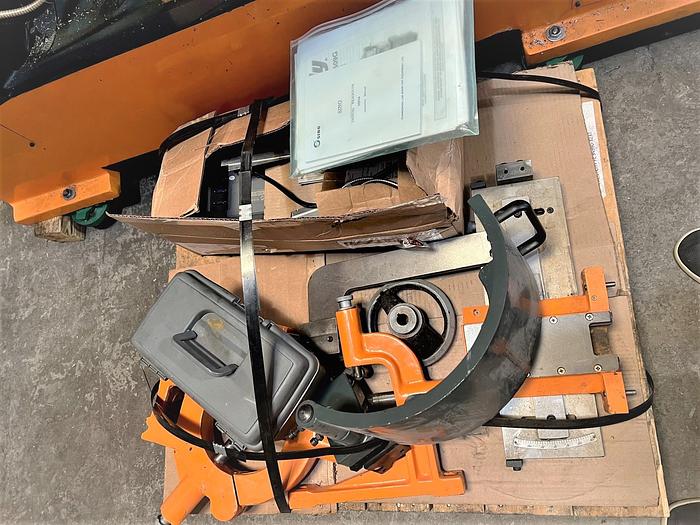

Steady Rest with 4.875" Capacity
Follow Rest with 2.875" Capacity
Chuck Cover
Coolant System
Work Light
Rear Back Splash Cover
Cast Iron Base, Bed and Stand
Flame Hardened Steel Gears
Tool Box with Miscellaneous Shop Tools
Wired 220V 3 Phase Power
All Available Manuals
Specifications
| Manufacturer | WMT CNC Industrial |

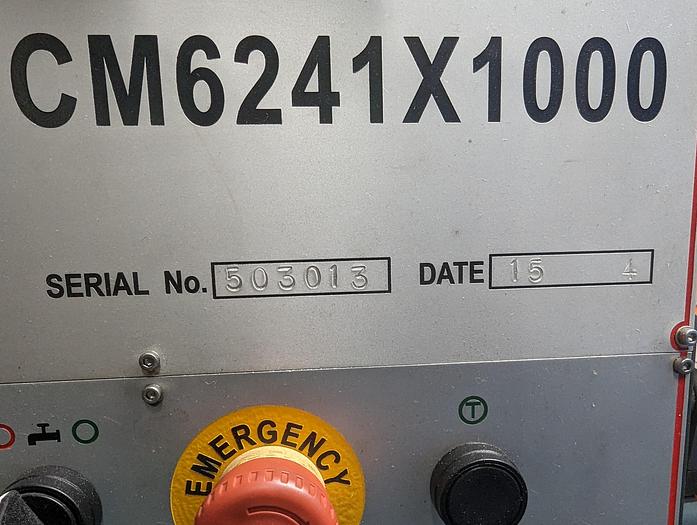

| Model | CM6241 x 1000 Engine Lathe |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118635 |
| Chuck Size | 8" 3-Jaw Manual |
| Maximum Swing over Bed | 16.14" |
| Maximum Swing Over Cross Slide | 10.04" |
| Swing in Gap | 22.83" |
| Distance Between Centers | 39.37" |
| Cross Slide Travel | 8.5" |
| Compound Travel | 5.5" |
| Carriage Travel | 33" |
| Spindle Nose | D1-6 Camlock |
| Spindle Bore | 2.06" |
| Spindle Speeds | 45 to 1,800 rpm - 16 Speeds |
| Spindle Motor | 4 HP |
| Number of Tool Positions | Aloris Style Single Tool |
| Tailstock Quill Diameter / Quill Travel / Taper | 2" / 4.75" / MT #4 |
| Machine Dimensions LxWxH | 77" x 34" x 52" |
| Machine Weight | 3,306 lbs |
