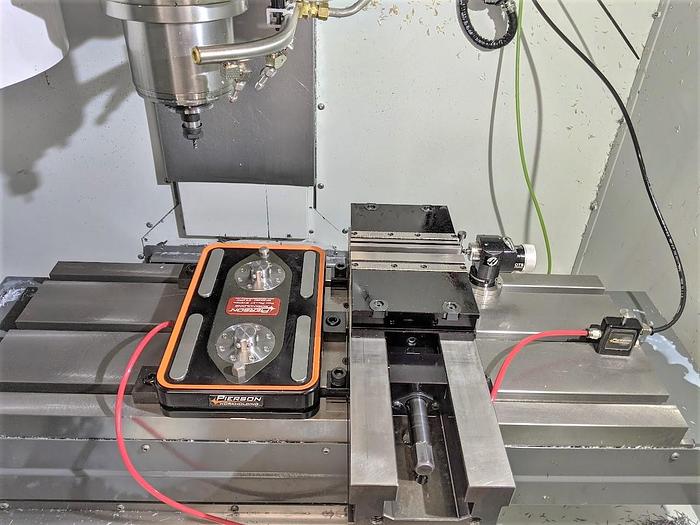

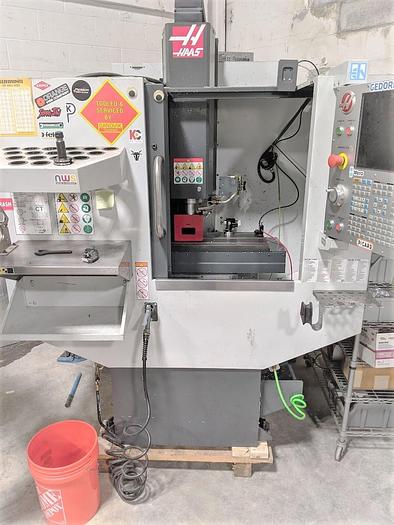

2018 Haas Super Mini Mill


2018 Haas Super Mini Mill

New York, NY


Haas 4th Axis Drive & Wiring

Haas Probing Package with both Tool & Part Probing

High Flow 3/4 HP Coolant Pump Kit

Haas Visual Part Programming System

Coordinate Rotation & Scaling

User Definable Macros

Spindle Orientation

1 GB Programming Memory

Rigid Tapping

Early Power Failure Detection Module

Wifi for Haas

Window Air Blast

Media Display M-Code M130

Haas Connect Remote Monitoring

Haas Drop

Ethernet Interface

USB Port Interface

RS 232 Port Interface

LED Work Light

Front Shelving & Tool Rack

Machine is Wired 220V 3 Phase Power

**AVAILABLE IMMEDIATELY, Price New Today at $52,525 as equipped**

**Approximately 500 Spindle Hours, machine is NOT currently under power**

**Optional "NEVER USED" Haas HA5C collet indexer available for additional cost of $9800.

**Fixturing and Vice on Table is NOT included with machine**

**Same Plant also has a 2021 Haas CL-1 with both milling and C axis along with barfeeder, barely over 100 hours of use**


ModelSuper Mini Mill
Stock Number118627
Machine ControlHaas CNC Control
Table Size36" x 10"
Maximum Table Load500 lbs
X-Axis Travel16"
Y-Axis Travel12"
Z-Axis Travel10"
Spindle TaperCAT 40
Spindle Speed10,000 RPM - Belt Driven
Spindle Motor15 HP
Rapid Traverse Rates1200 IPM

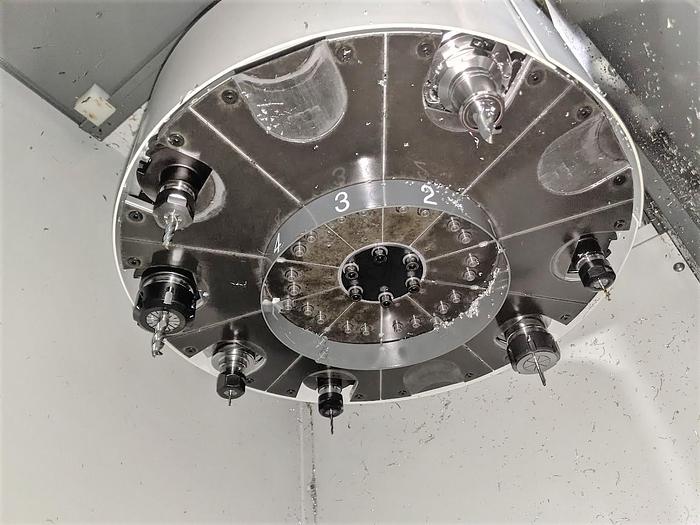

Tool Magazine Capacity10 Station ATC
Distance Spindle Nose to Table Top4" - 24"
Maximum Tool Diameter / Length / Weight3.5" / NA / 12 lbs
Machine Dimensions LxWxH91" x 88" x 100"
Machine Weight6,000 lbs
