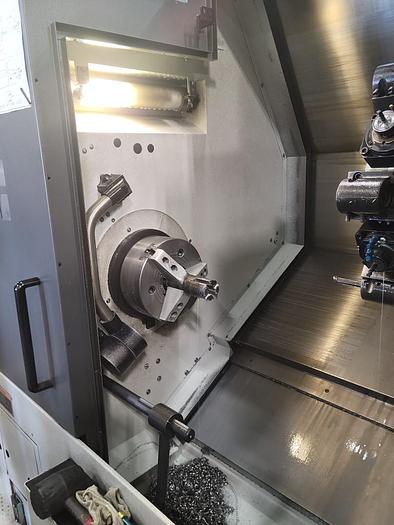

2008 Mori Seiki NL2500Y/700
No longer available
2008 Mori Seiki NL2500Y/700
Location:California
Description
Full C Axis Spindle Rotation Live Milling/Drilling Capability Y Axis Capability 10" 3 Jaw Hydraulic Chuck Tool Presetter
Parts Catcher Chip Conveyor Programmable Tailstock Complete Coolant System with Tank & Pump RS 232 Port Interface Wired 220V Electrics All Available Static Tooling All Available Manuals
Specifications
| Manufacturer | Mori Seiki |
| Model | NL2500Y/700 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118623 |

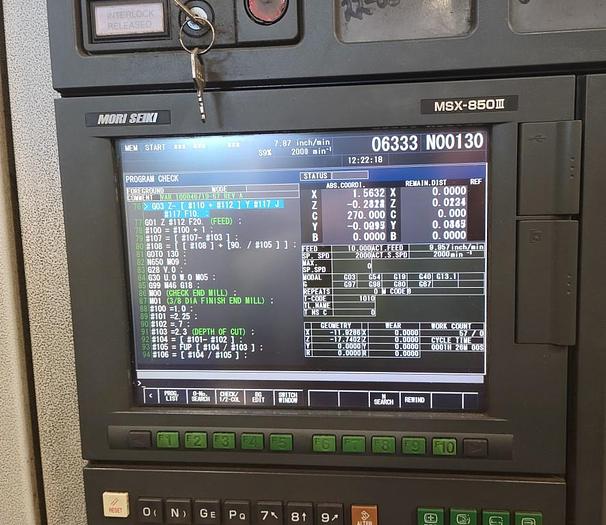

| Control | Mori/Fanuc MSX-850 III |
| Chuck Size | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 36.4" |
| Maximum Swing Over Cross Slide | 29.7" |
| Maximum Turning Diameter | 14" |
| Maximum Turning Length | 27.7" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | 3.9" |
| Z-Axis Travel | 31.3" |
| Spindle Nose / Spindle Bore | A2-8" / 3.1" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |
| Number of Tool Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 122" x 80" x 84" |
| Machine Weight | 13,640 lbs. |
