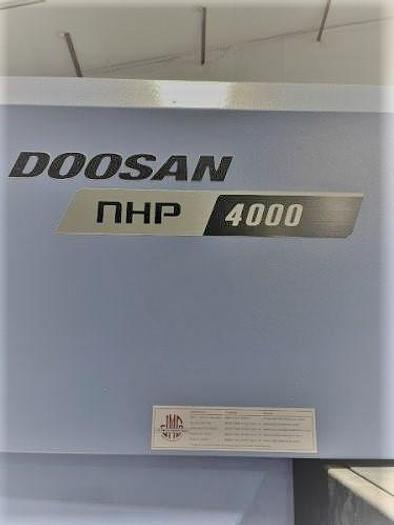

2020 Doosan NHP 4000 with 6 Pallet Changer

Sold

2020 Doosan NHP 4000 with 6 Pallet Changer

$310,000 (USD)

Location:Idaho

Description

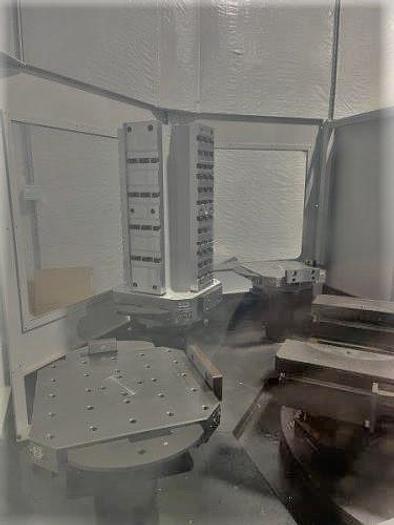

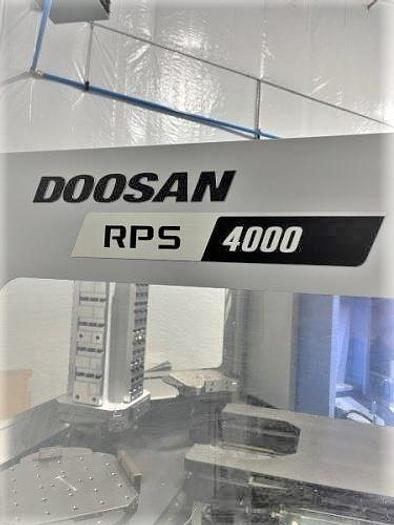

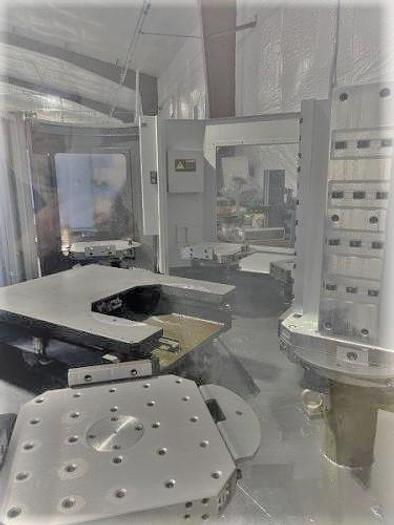

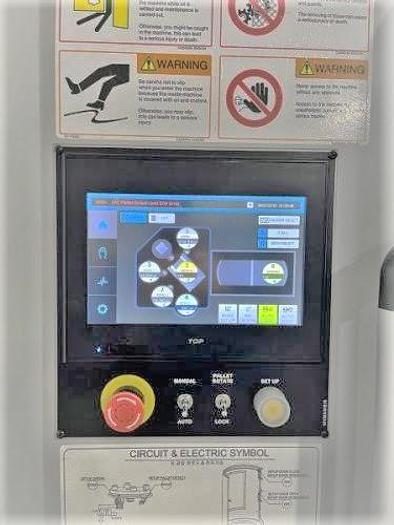

RPS-6 Pallet Changer System

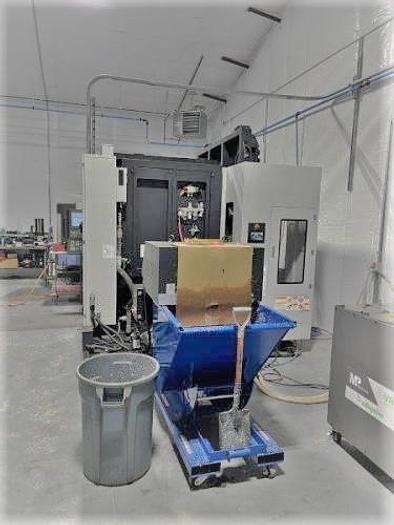

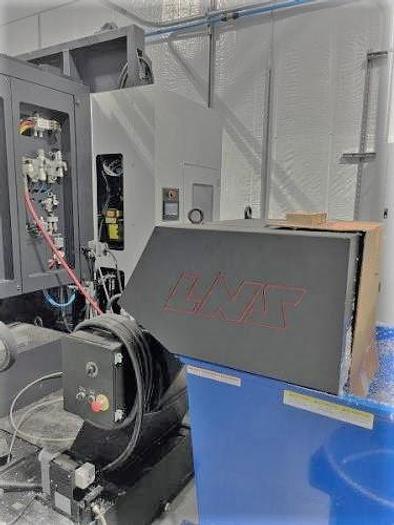

LNS Turbo MH-250 Micro Hinge Rear Discharge Filtering Chip Conveyor

MP Systems Model AK-VR8-SD Heavy Duty 8 GPM, Variable Volume Programmable High Pressure Coolant w/ 5 Micron Filtration

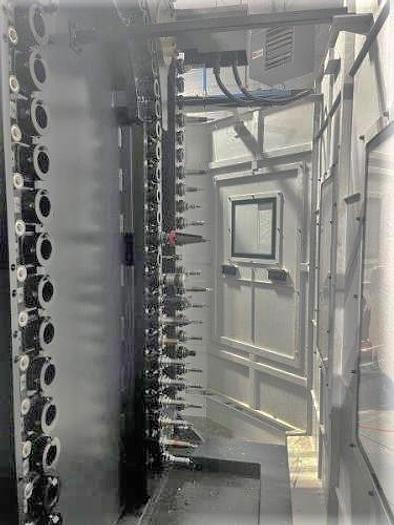

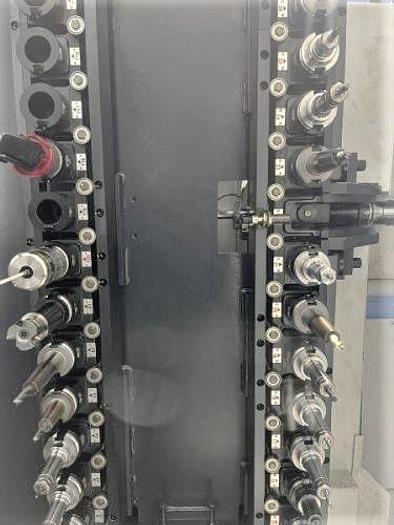

120 Station Tool Changer

Renishaw Ren-CAT40CAL Tool Setter Calibration Master

Spindle Probe Calibration Ring Guage

Renishaw RPM60 Spindle Probe

Renishaw RTS-AA Touch Trigger Tool Setter

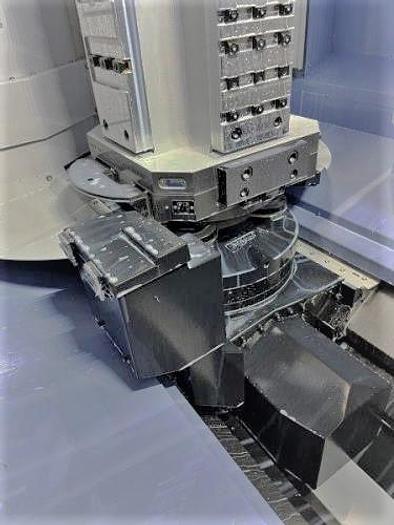

Full B Axis Rotary Table

USB Port Interface

RS 232 Port Interace

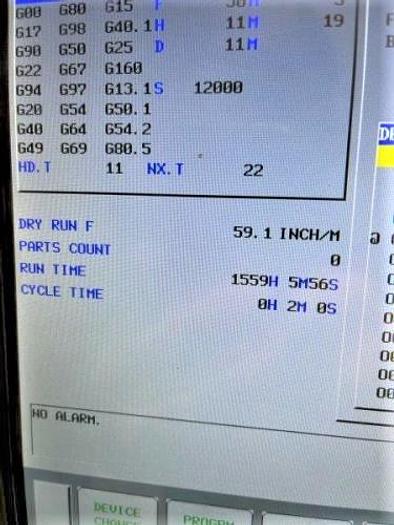

**ONLY 1600 HOURS**

Specifications

ManufacturerDoosan
ModelNHP 4000 with 6 Pallet Changer
Year2020
ConditionUsed
Stock Number118620

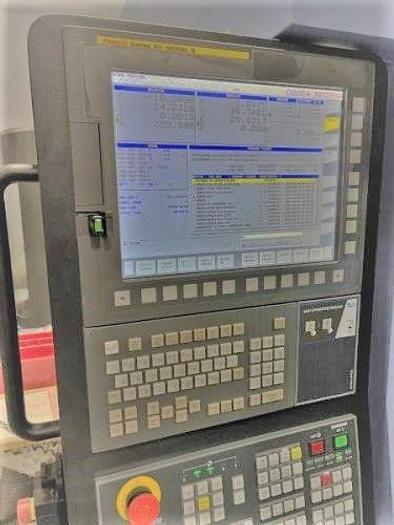

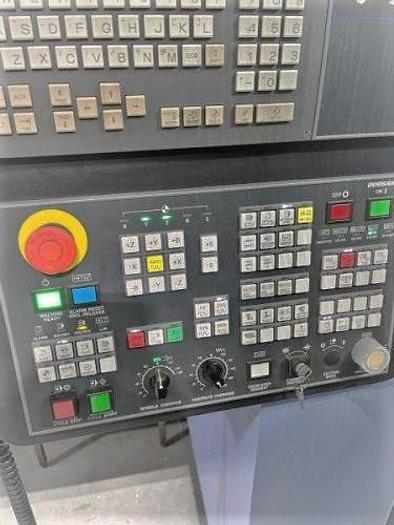

Machine ControlFanuc 31iB

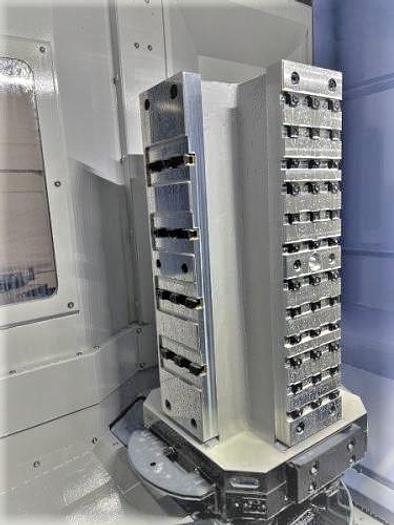

Pallet Size / Number of Pallets15.7" x 15.7" / 6 Pallets
Maximum Table Load882 lbs.
Pallet Indexing.001 Degree Full 4th Axis
Maximum Workpiece Size D x H24.8" x 35.4"
X-Axis Travel22"
Y-Axis Travel25.2"
Z-Axis Travel25.98"

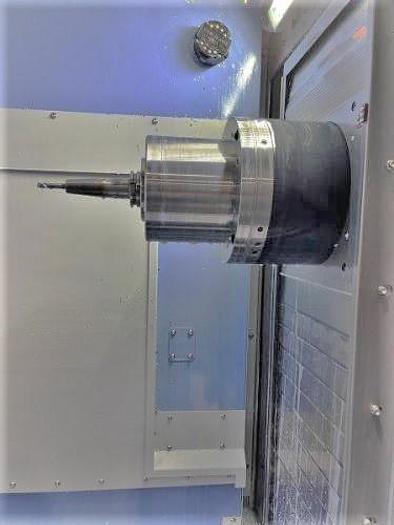

Spindle TaperCAT #40 Big Plus
Spindle Speeds15,000 RPM
Spindle Motor49.6 HP
Number of Tool Positions120 Station Tool Changer
Rapid Traverse Rates2362 IPM
Cutting Feedrates2362 IPM
Machine Dimensions195" x 91" x 105.9" (not inclusive of 6 pallet changer)
Machine Weight21,340 lbs. (machine only)
