2015 Agie Charmilles Form 2000 VHP Sinker EDM
No longer available
2015 Agie Charmilles Form 2000 VHP Sinker EDM
$199,000 (USD)
Location:Illinois
Description
C-Axis (Erowa

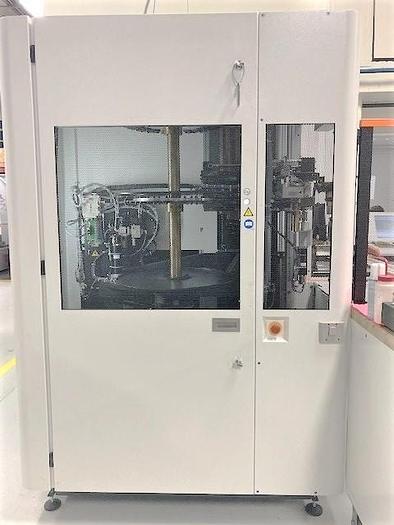

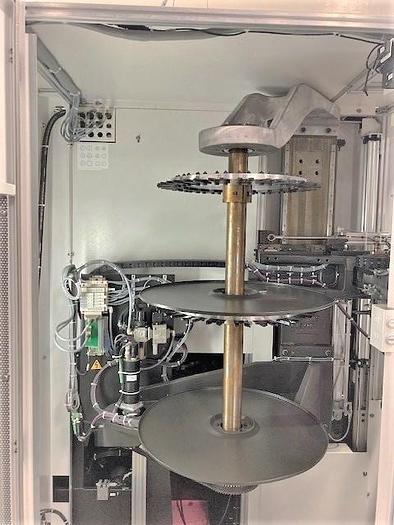

40 Position Automatic Electrode Changer
Programmable 3 Sided Droptank
80 Amp IPGS Generator
Glass Scales on All Axis

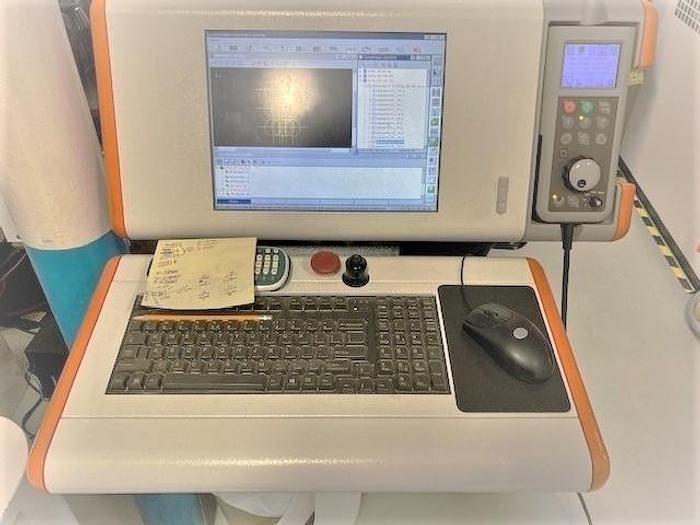

12" TFT Color Screen
Ethernet & USB Capable

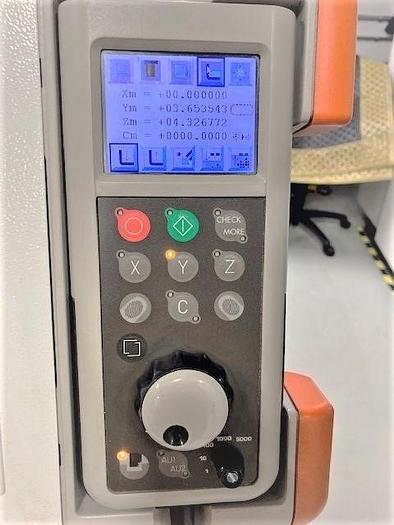

Remote Hand Control
IQ Module Gr
IQ Module Cu
VMI
Camlink
Easyrun
Path3D
Toolmanager
Superfinishing
Electric Chiller
Transformer
All Available Manuals and Accessories
** Table chuck, magnet, and tooling are NOT included with the machine**
Specifications
| Manufacturer | Agie Charmilles |
| Model | Form 2000 VHP |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118615 |
| Control | Agie Charmilles Vision 5 Control |
| Maximum Weight on Table | 1764 lbs. |
| Maximum Workpiece Dimensions | 32.28" x 22.83" x 9.84" |
| Maximum Electrode Weight | 220 lbs. |
| X-Axis Travel | 15.75" |
| Y-Axis Travel | 11.81" |
| Z-Axis Travel | 13.78" |
| Working Range Measurement Resolution | 0.000004" |
| Distance Between Chuck and Table | 5.9" - 17.7" |
| Maximum Work Tank Dielectric Depth | 11.4" |
| Dielectric Tank Capacity | 130 gallons |
| Type of Tank | 3 Sided Drop Tank |
| Number of Filter Elements | 4 |
| Generator | ISPG Integrated |
| Maximum Machining Current | 80 avg. / 140 peak amps |
| Minimum Surface Roughness (Ra) | 0.3 uin |
| Electrical | 400V / 3 PH / 60 Hz |
| Machine Dimensions LxWxH | 83" x 97" x 105" |
| Machine Weight | 9,326 lbs. |
