2004 Mazak Nexus QTN 350/650
No longer available
2004 Mazak Nexus QTN 350/650
$44,950 (USD)
Location:Iowa
Description

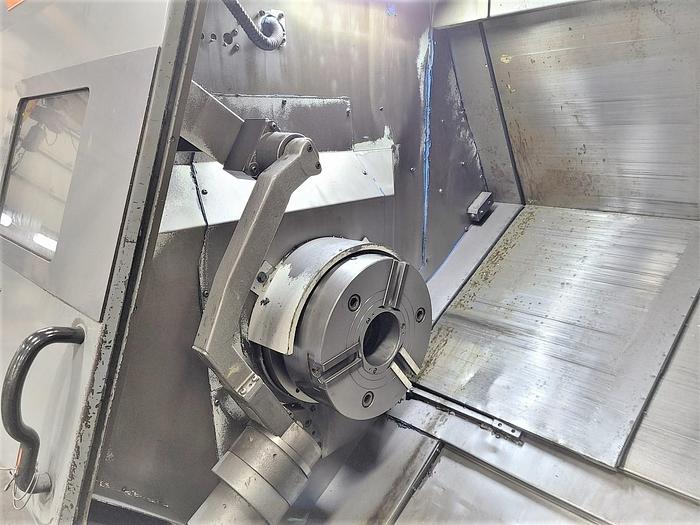

12" 3 Jaw Hydraulic Chuck

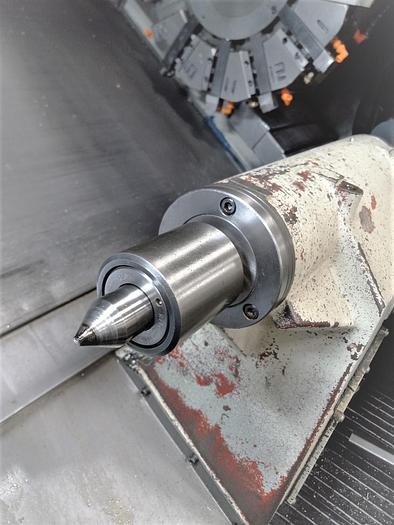

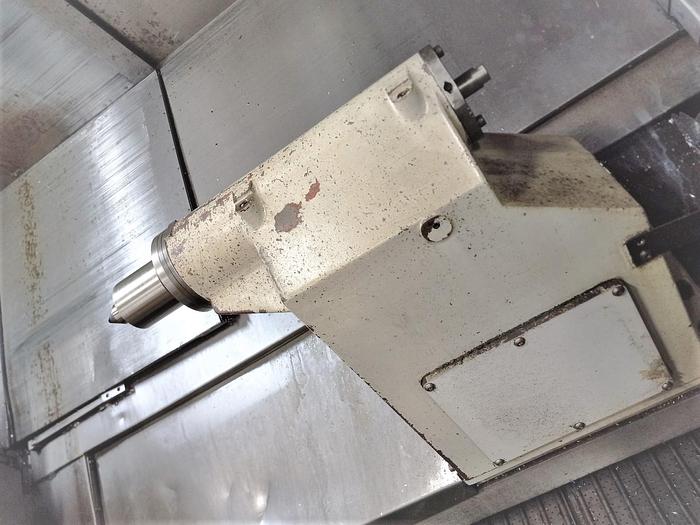

Programmable Tailstock
Chip Conveyor
Tool Presetter (needs work)
Backround Tool Path Check
USB Port Interface
3.5" Floppy Disk Interface
RS 232 Port Interface
Windows Based Operating System
Network Interface
Multi Tap Transformer
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350/650 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118607 |

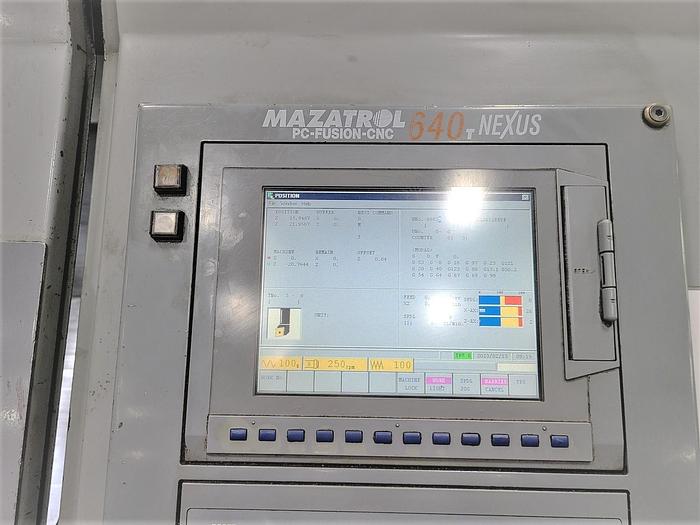

| Machine Control | Mazatrol Fusion 640T |
| Chuck size | 12" Hydraulic Chuck |
| Maximum swing | 26.77" |
| Swing over cross slide | 16.5" |
| Maximum cutting diameter | 16.5" |
| Maximum machining length | 23.8" |
| X-axis travel | 8.875" |
| Z-axis travel | 26.75" |
| Spindle nose/spindle bore/bar capacity | A2-11"/4.4"/4.0" |
| Spindle speed | 3,300 RPM |
| Spindle motor 30 min. / cont. | 40 HP / 30 HP |

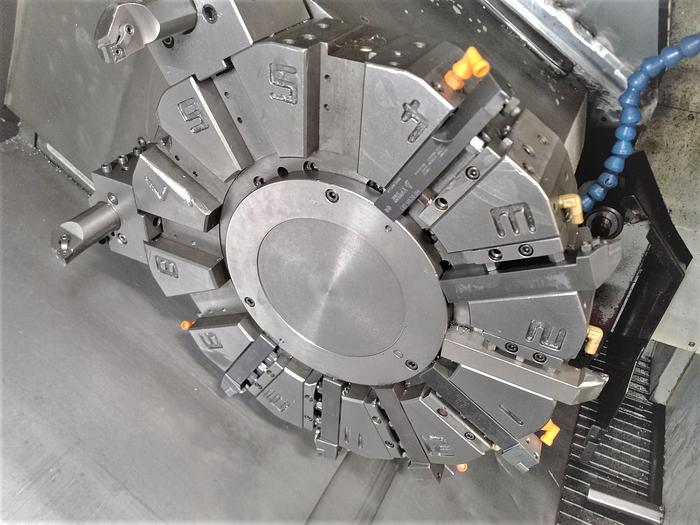

| Turret type | 12 Position Turret |
| Rapid traverse x / z | 1181 / 984 IPM |
| Tailstock center / travel | MT. No. 5 / 25.5" |
| Machine dimensions lxwxh | 119" x 81" x 79" |
| Machine weight | 14,800 lbs. |
