2001 Haas VF2B
No longer available
2001 Haas VF2B
$24,500 (USD)
Location:Illinois
Description
10,000 RPM Spindle
24 Station Side Mounted Tool Changer
4th Axis Wired 2 Speed Geared Transmission
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros Auger Style Chip Conveyor Programmable Coolant Nozzle - Needs Repair Visual Quick Code Programming
LED Lighting

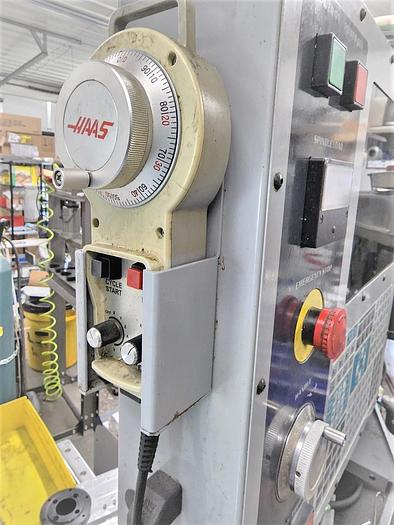

Remote Jog Handle USB Port Interface

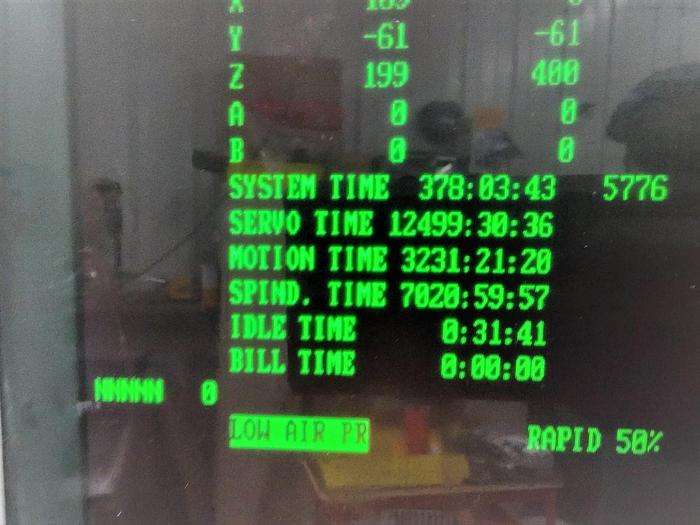

RS 232 Port Interface Complete Coolant System with Tank & Pump Rigid Tapping All Available Manuals Servo On Hours 12,499 Motion Hours - 3,321 Spindle Hours - 7,020
Specifications
| Manufacturer | Haas |
| Model | VF2B |
| Year | 2001 |
| Condition | Used |
| Stock Number | 118606 |
| Control | Haas CNC Control |

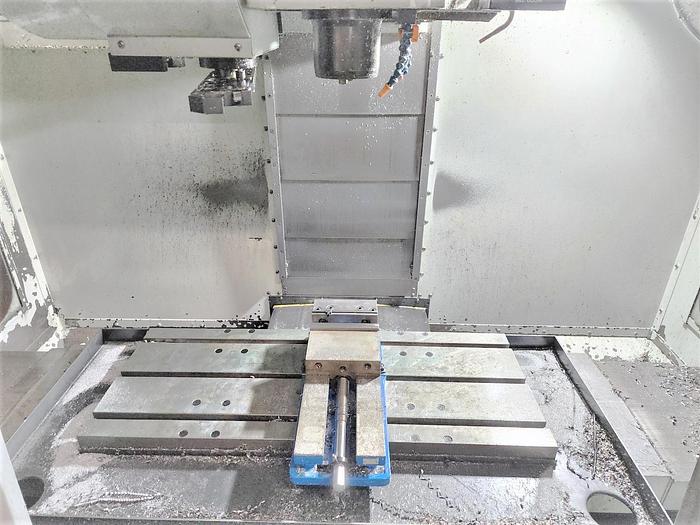

| Table Size | 36"x14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 10,000 RPM - 2 Speed Geared Head |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 24 Station Side Mounted ATC |
| Rapid Traverse Rates | 710 IPM |
| Distance Spindle Nose to Table Top | 4" to 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
