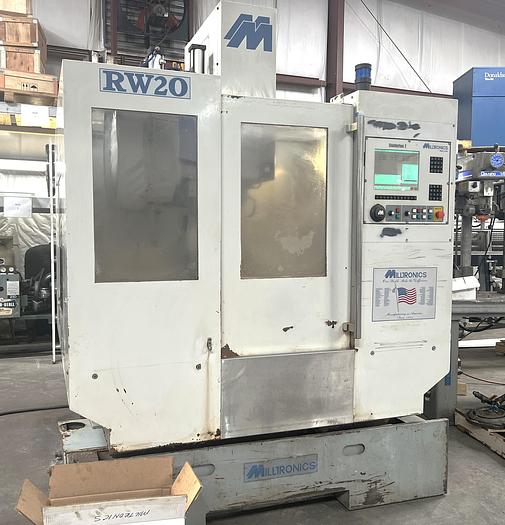

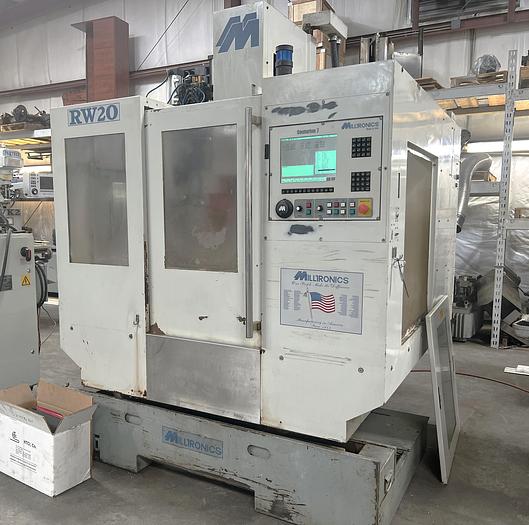

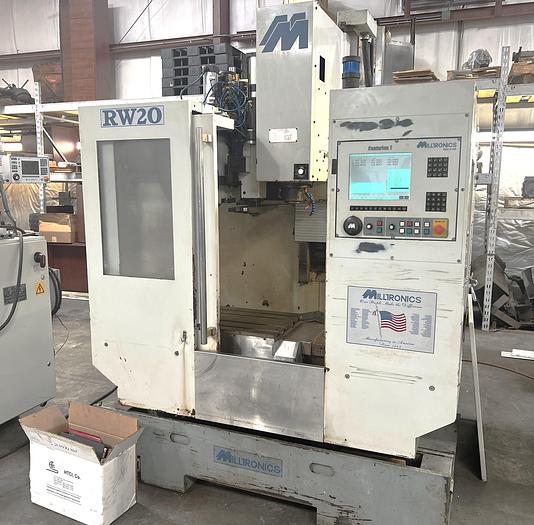

2005 Milltronics RW20 3 Axis Vertical Machining Center with Side Mounted Tool Changer, Boxed Ways, Both G Code and Conversational Programming

2005 Milltronics RW20 3 Axis Vertical Machining Center with Side Mounted Tool Changer, Boxed Ways, Both G Code and Conversational Programming

$10,900 (USD)

Location:Florida

or
Call (863) 439-6066

Description

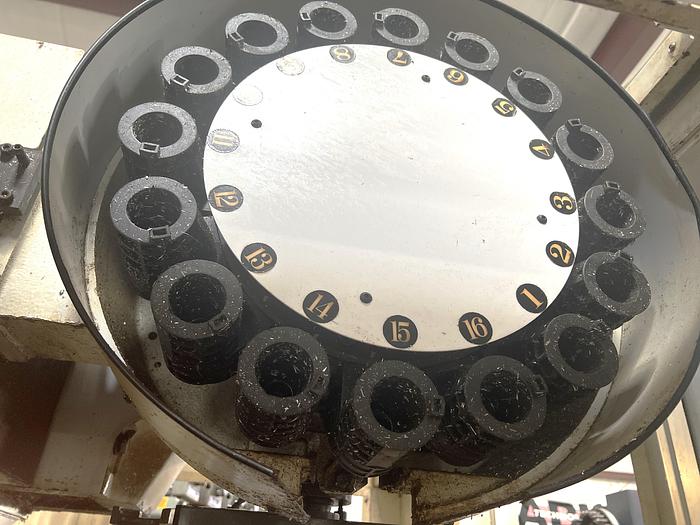

16 Station Side Mounted Tool Changer

Boxed Way Design

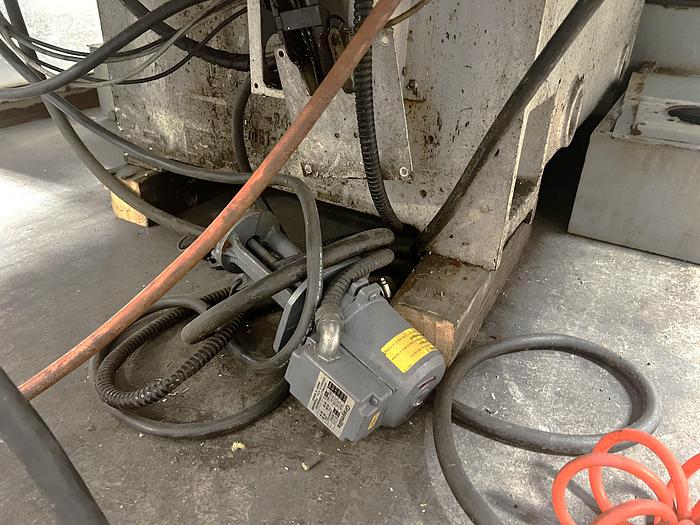

PC Based CPU w/ 6 MB Memory Conversational or G & M Code Programming Rigid Tapping Flood Coolant Coolant Tank with Pump

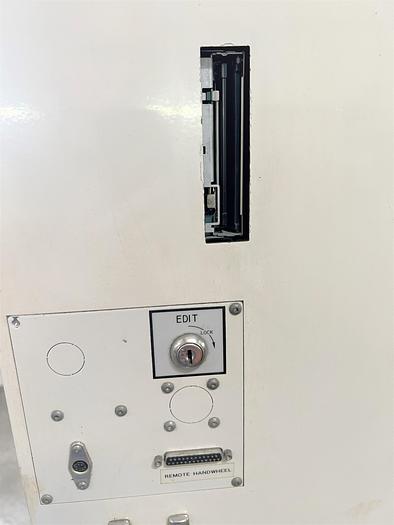

3.5" Floppy Disk Drive Interface

RS-232 Port with DNC Interface

Show All

Specifications

ManufacturerMilltronics
ModelRW20 3 Axis Vertical Machining Center
Year2005
ConditionUsed
Stock Number118605

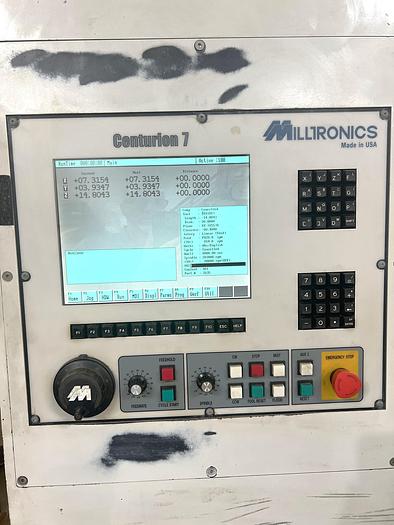

ControlMilltronics Centurion 7

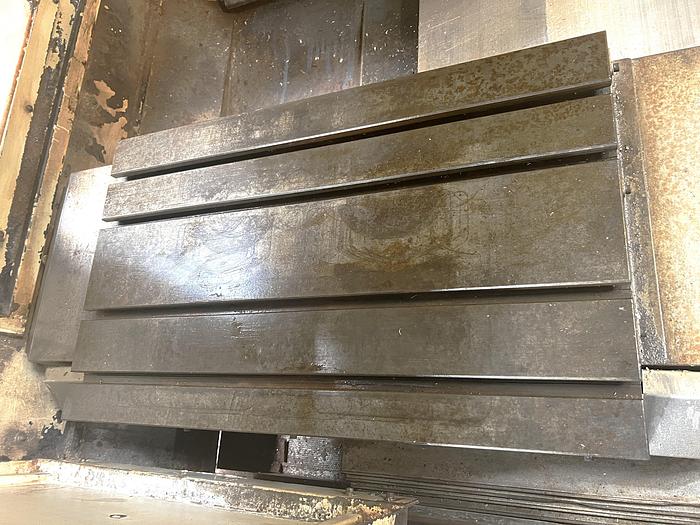

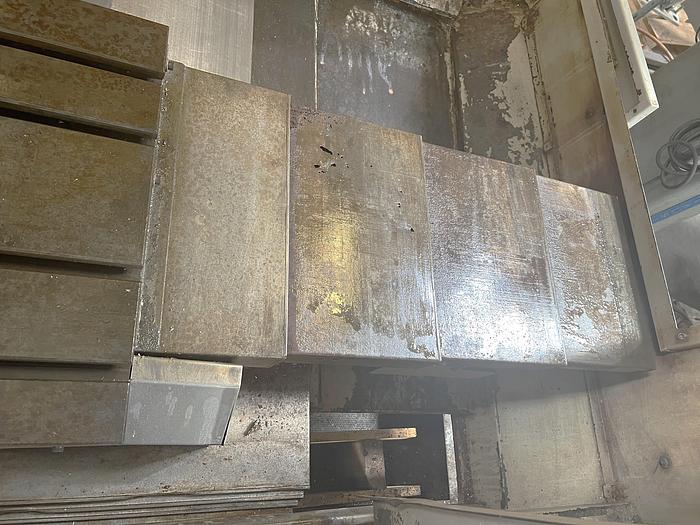

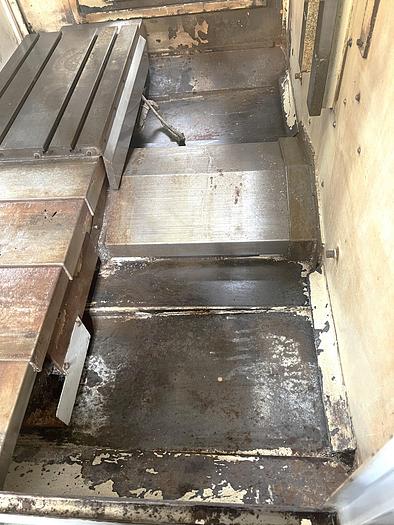

Table size30"x18"
Maximum Table Load1,000 lbs
X-Axis Travel25"
Y-Axis Travel20"
Z-Axis Travel20.5"
Spindle TaperCAT 40
Spindle Speed8,000 RPM
Spindle Motor18 HP / 12 HP
Distance Spindle Nose to Table Top4.5" to 25"
Tool Magazine Capacity16 Station Side Mounted Tool Changer
Column to Spindle Center21"
Rapid Traverse Rates X, Y / Z1,000 IPM / 800 IPM
Maximum Tool Diameter / Length / Weight4" / 9" / 15 lbs
Machine Dimensions LxWxH73"x78.5"x102"
Machine Weight8,500 lbs
