2006 Mazak Cybertech Turn 4500M/3000 Big Bore
No longer available
2006 Mazak Cybertech Turn 4500M/3000 Big Bore
$129,500 (USD)
Location:Florida
Description

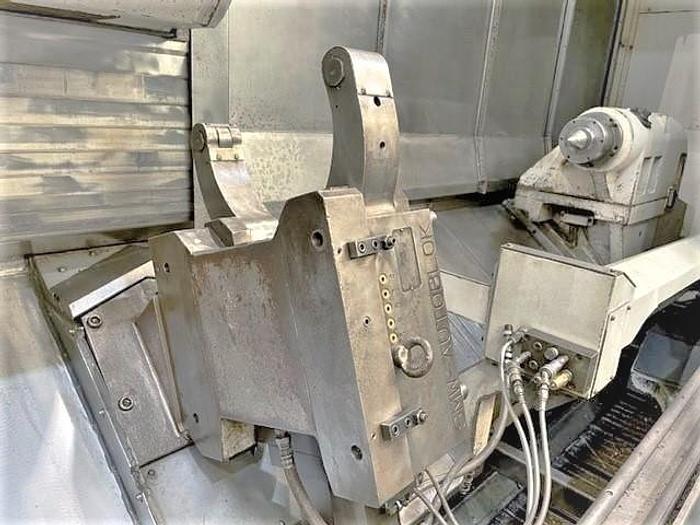

24" 3 Jaw Hydraulic Chuck Optional 7.28" Big Bore Spindle Chip Conveyor Full "C" Axis Spindle Rotation Live Milling Capability SMW Autoblok Hydraulic Steady Rest Fully Programmable Tailstock 120" Center Distance Multi-Tap Transformer EIA/ISO Input Function IC Memory Card Interface 3.5" Floppy Disk Drive PCMCIA Interface - 2 Slots RS-232C Port Interface Network Interface All Available Static Tooling
(5) Live Tool Holders
Specifications
| Manufacturer | Mazak |
| Model | Cybertech Turn 4500M/3000 Big Bore |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118595 |

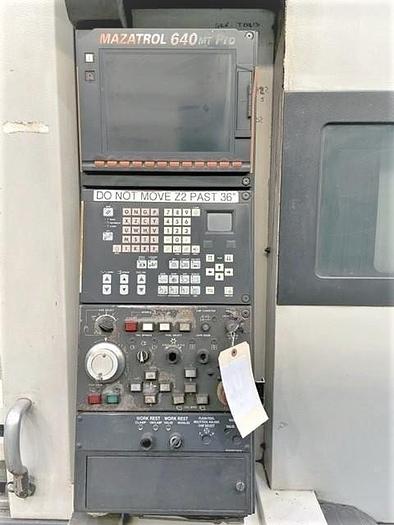

| Control | Mazatrol Fusion 640MT Pro |
| Maximum Swing | 33.86" |
| Maximum Swing Over Cross Slide | 27.5" |
| Maximum Machining Diameter | 31.89" |
| Maximum Machining Length | 120" |
| X-Axis Travel | 21.26" |
| Z-Axis Travel | 120" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-11" / 7.23" / 6.5" |
| Spindle Speeds | 0 - 1,600 RPM |
| Spindle Motor | 50 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 15 HP |

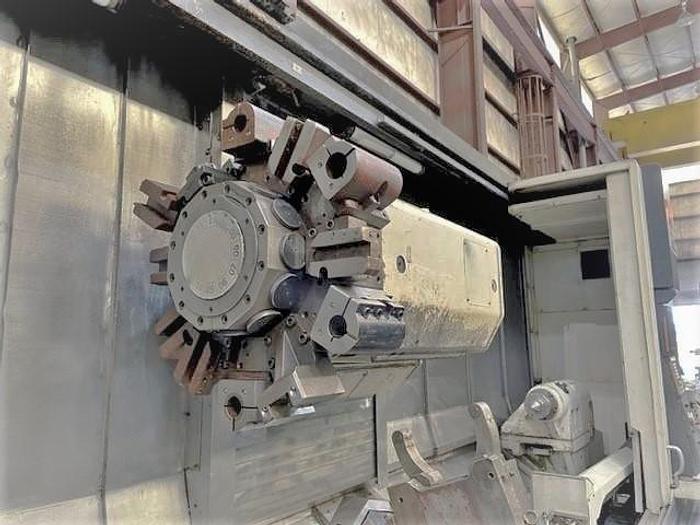

| Number of Turret Positions | 12 Station Turret |

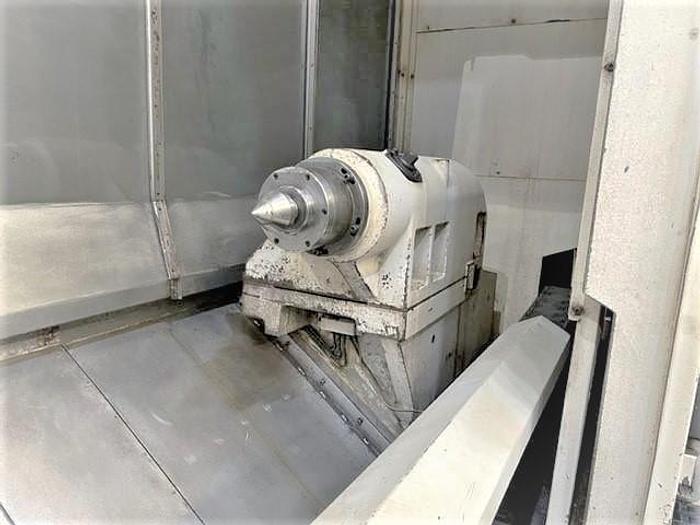

| Tailstock Body Travel / Center | 120.08" / MT #5 |
| Rapid Traverse Rates X / Z | 945 IPM / 1181 IPM |
| Machine Dimensions | 284" x 98" x 111" |
| Machine Weight | 42,600 lbs. |
