2014 Romi C-680
No longer available
2014 Romi C-680
Location:Florida
Description

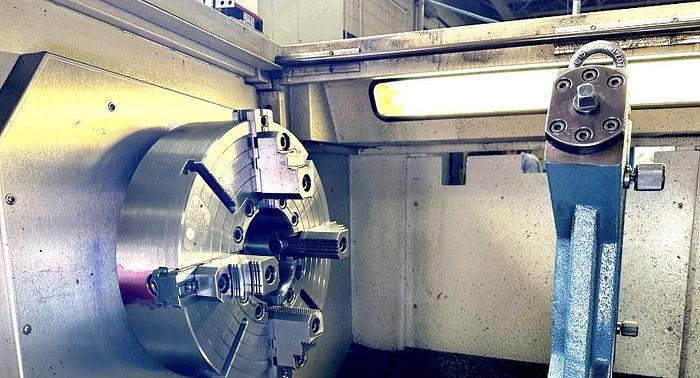

21" 4 Jaw Manual Chuck
Conversational Programming
Remote Jog Handle
Chip Conveyor
16" Capacity Steady Rest
Work Light
3.5" Floppy Disk Interface
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Romi |
| Model | C-680 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118594 |

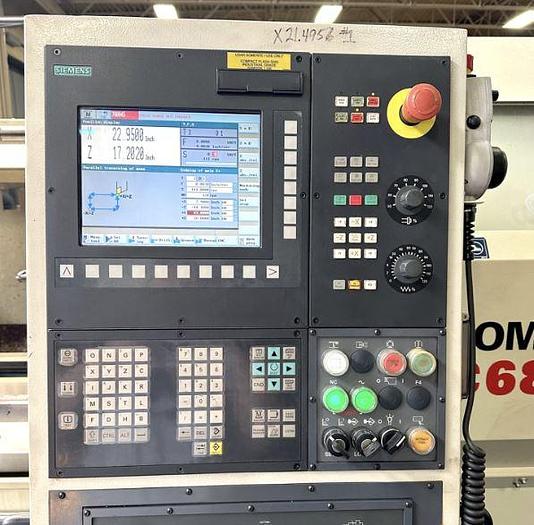

| Machine Control | Siemens 802D SL Pro w/Conversational Programming |
| Chuck Size | 21" 4-Jaw Manual |
| Maximum Swing | 27" |
| Maximum Swing Over Cross Slide | 21.6" |
| Distance Between Centers | 79" |
| Maximum Turning Diameter | 27" |
| Maximum Turning Length | 79" |
| X-axis travel | 14.2" |
| Z-Axis Travel | 80" |

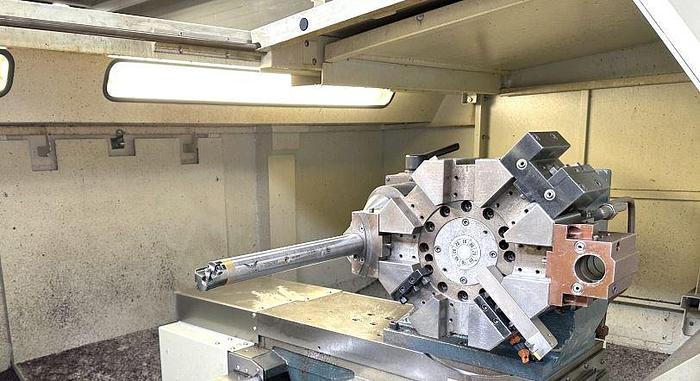

| Number of Turret Positions | 8 Position Turret |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 7" / 6.5" |
| Spindle Speed | 1,800 RPM |
| Spindle Motor | 45 HP |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 270" x 96" |
| Machine Weight | 13,400 lbs |
