2010 Haas TL-3W
No longer available
2010 Haas TL-3W
Location:California

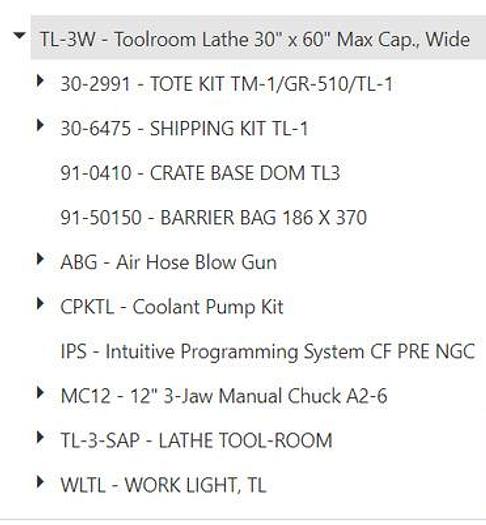

Description

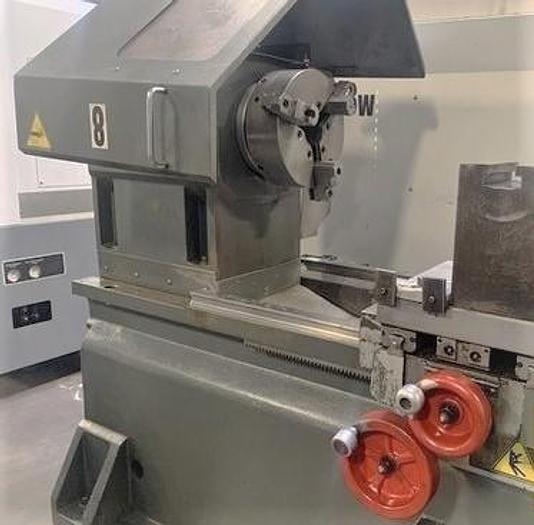

12" 3 Jaw Manual Chuck
Dorian Model V40 TC Tool Post

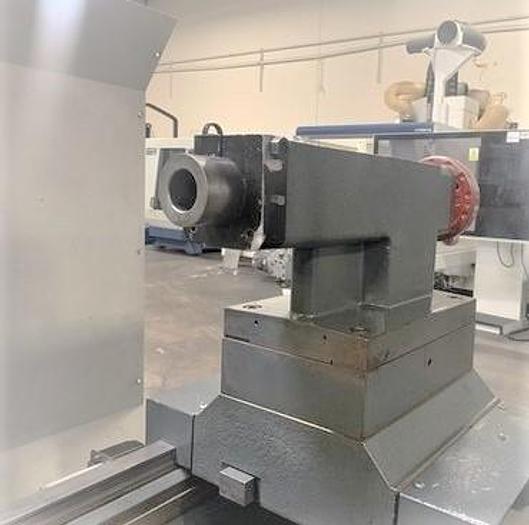

Tailstock

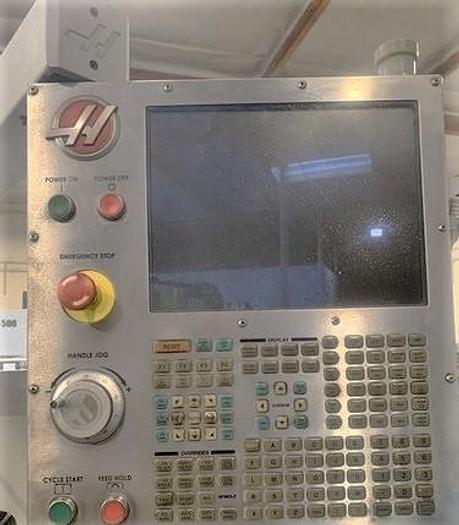

Haas Intuitive Programming System
Work Light
Air Hose Blow Gun
Manual Hand Wheels

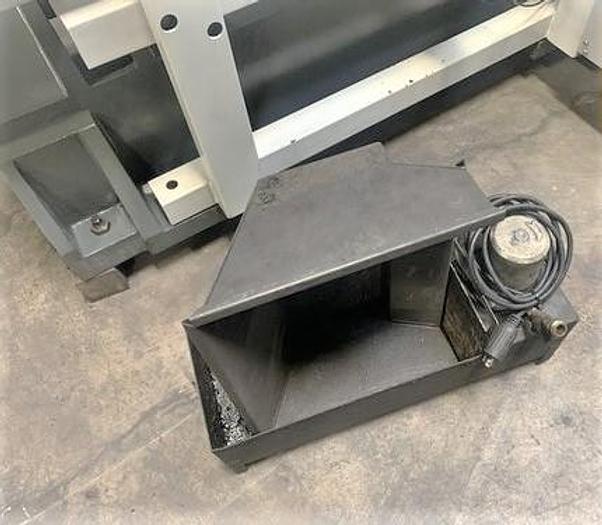

Coolant Tank & Pump

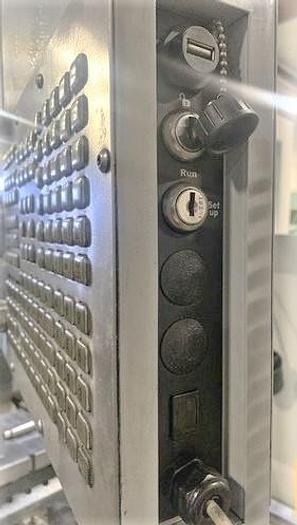

USB Port Interface
RS 232 Port Interface

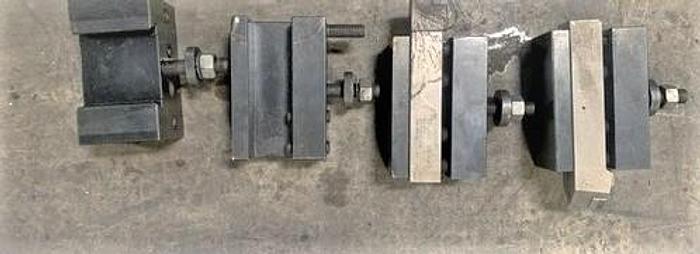

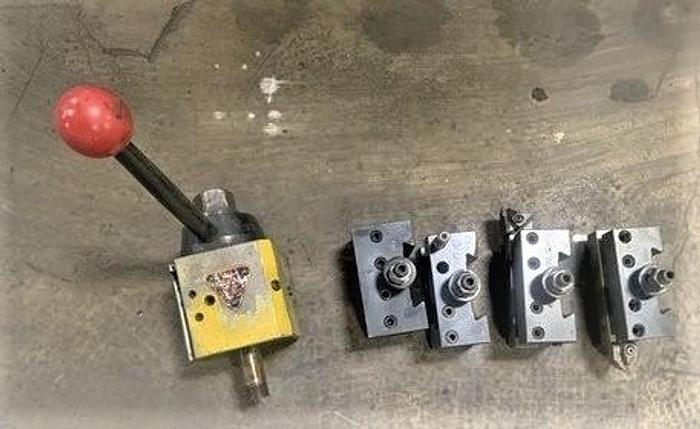

Miscellaneous Tool Post Holders
** "W" Model Offers Greater Swing of 30", compared to 20" on a standard TL3, and 18" Cut Diameter, compared to 13" on a standard TL3**
Specifications
| Manufacturer | Haas |
| Model | TL-3W |
| Year | 2010 |
| Condition | Used |
| Stock Number | 118593 |
| Machine Control | Haas CNC Control |
| Chuck Size | 12" 3-Jaw Manual Chuck |
| Maximum Swing | 30" |
| Maximum Machining Diameter | 30" |
| Maximum Swing Over Cross Slide | 18" |
| Distance Between Centers | 60" |
| X-axis travel | 16" |
| Z-Axis Travel | 60" |
| Spindle Speeds | 0 - 1,800 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / not avail. |
| Spindle Motor | 18 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 123" x 75" x 86" |
| Machine Weight | 7,624 lbs |
