2018 Romi C-510
No longer available
2018 Romi C-510
$39,500 (USD)
Location:Kansas
Description
Tool Post
Manual Hand Wheels
10" 3 Jaw Manual Chuck
Tailstock
Coolant System with Tank and Pump
Card Interface
RS 232 Port Interface
Romi Manual Machining Package (RMMP)
24 AMP Full Load
All Available Manuals
Specifications
| Manufacturer | Romi |
| Model | C-510 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118591 |

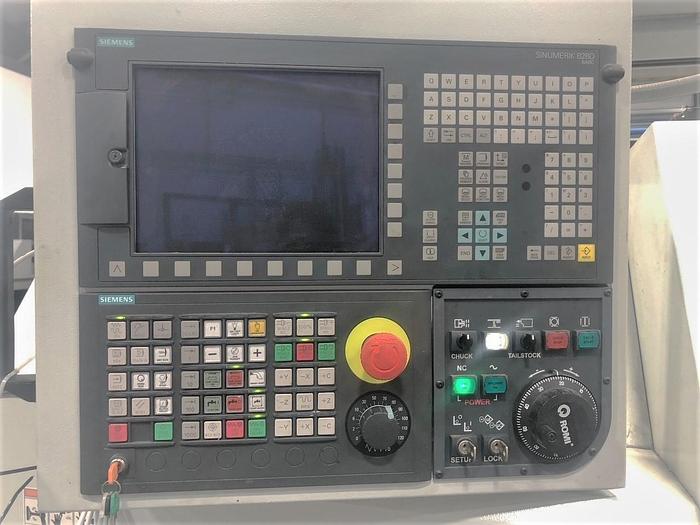

| Machine Control | Siemens 828D Basic |
| Chuck Size | 10" 3 Jaw Manual Chuck |
| Maximum Swing | 20.5 |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 59" |
| Maximum Turning Length | 60" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.15" / 3.15" |
| Spindle Speed | 2,200 RPM |
| Spindle Motor | 15 HP |
| Center Height | 10.2" |
| Machine Dimensions LxWxH | not available |
| Machine Weight | 10,000 lbs. |
