2006 Doosan Puma 240MSB
No longer available
2006 Doosan Puma 240MSB
$49,950 (USD)
Location:Michigan
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

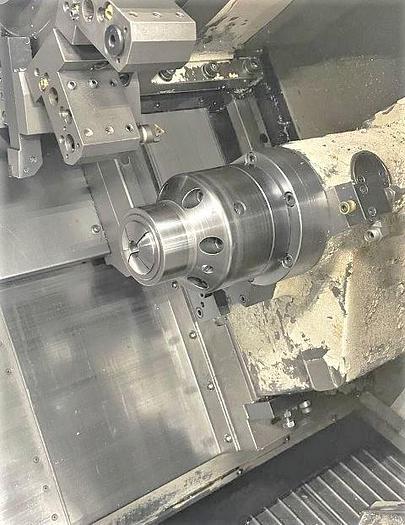

Subspindle S26 Collet Chuck on Main Spindle

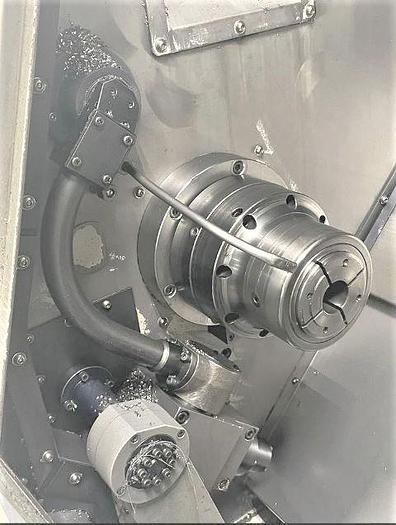

3J Collet Chuck on Subspindle
Tool Presetter
Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Card Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Static Tooling
(4) Live Toolholders
Miscellaneous Collets & Spindle Liners
All Available Manuals

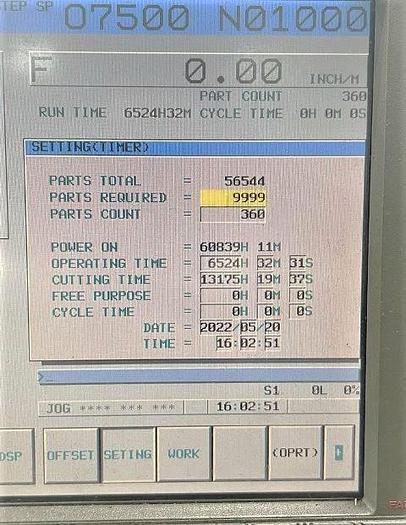

**13,175 Cutting Hours**
**Main Spindle Recently Rebuilt | Live Tool Drive Replaced | Spindle Actuator Replaced**
Specifications
| Manufacturer | Doosan |
| Model | Puma 240MSB |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118590 |
| Control | Fanuc OMiTD |
| Chuck Size | S26 Collet Chuck Main / 3J Collet Chuck Subspindle |
| Maximum Swing over Bed | 21.7" |
| Maximum Cutting Diameter | 11.4" |
| Maximum Machining Length | 19.37" |
| Maximum Bar Capacity | 2.56" |
| X-Axis Travel | 8.07" |
| Z-Axis Travel | 22.83" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 2.99" |
| Spindle Speeds - Main | 55 - 5,000 RPM |
| Spindle Motor - Main | 25 HP |
| Subspindle Speed / Motor | 6,000 RPM / 7.5 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |

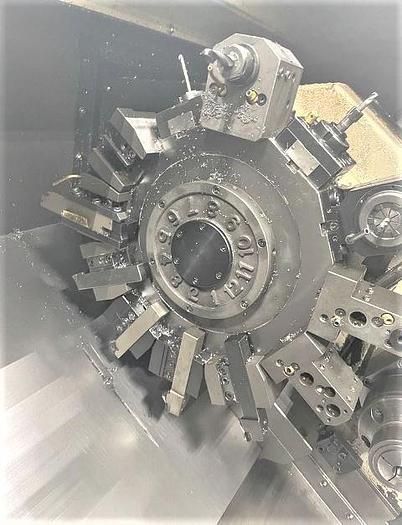

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/ Z / C | 945 IPM / 1181 IPM / 200 RPM |
| Machine Dimensions | 130" x 63" x 70" (machine only), 170" with conveyor gooseneck |
| Machine Weight | 9,780 lbs. |
