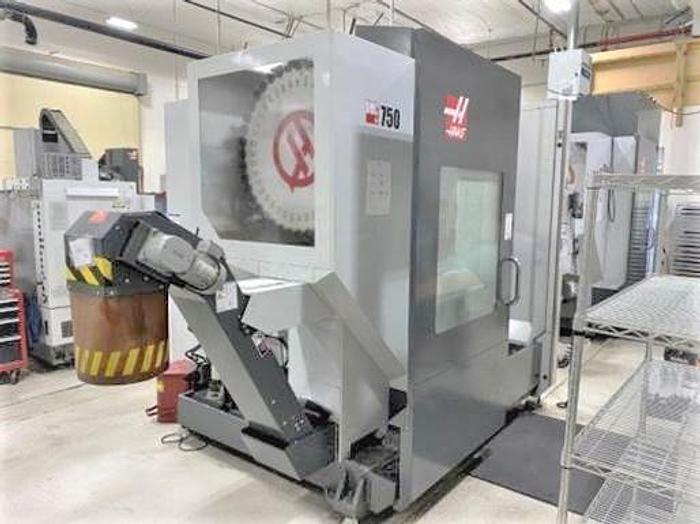

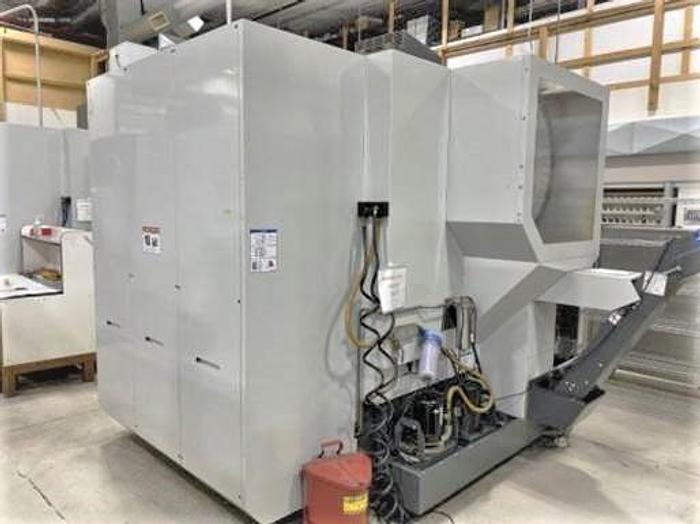

2013 Haas UMC-750
No longer available
2013 Haas UMC-750
Location:California
Description

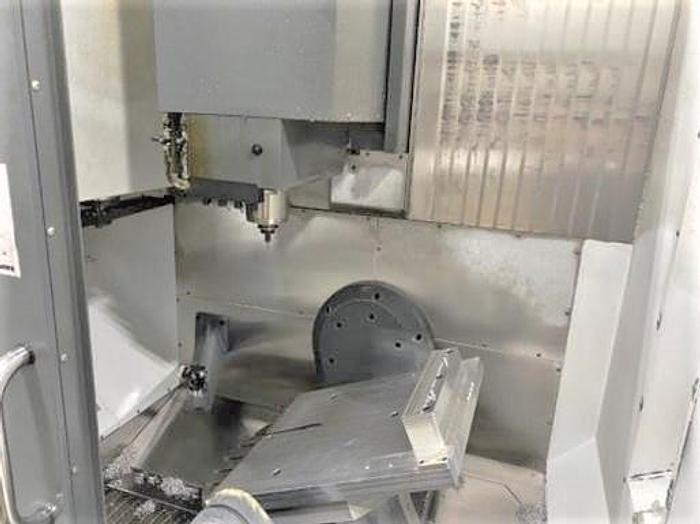

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI

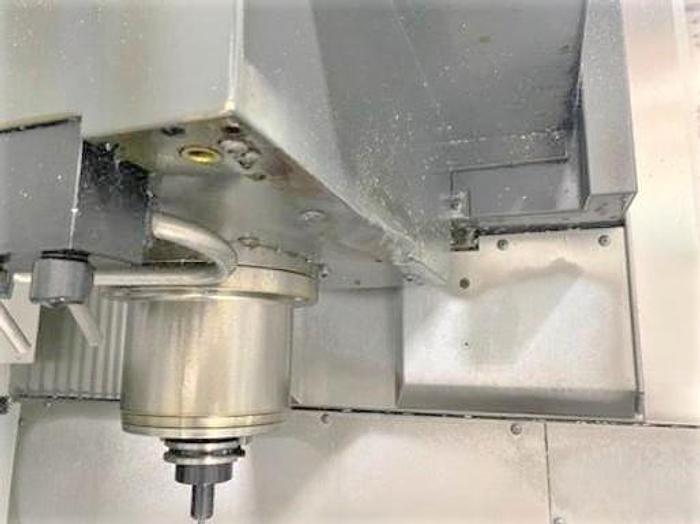

12,000 RPM Spindle

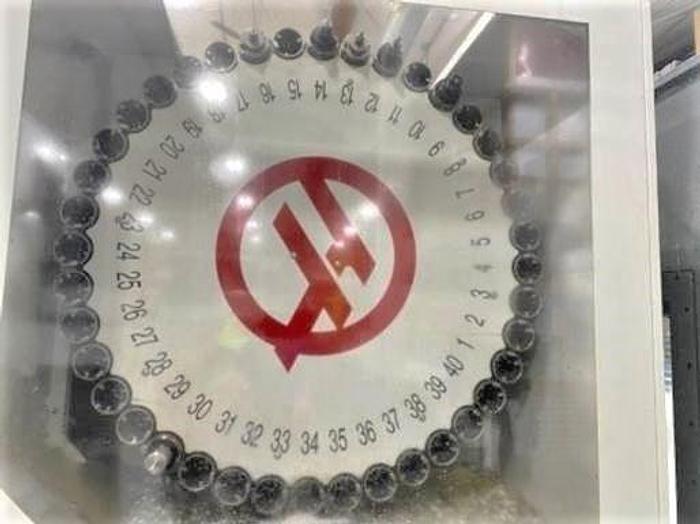

40 Station Side Mounted Tool Changer
Renishaw Probing with Part and Tool Probe
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Part Programming System
High Speed Machining
Programmable Coolant Nozzle
Chip Conveyor - Belt Style
Remote Jog Handle
Early Power Failure Detection Module
750 MB Programming Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Specifications
| Manufacturer | Haas |
| Model | UMC-750 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118587 |
| Table size | 24.8" x 19.7" |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
