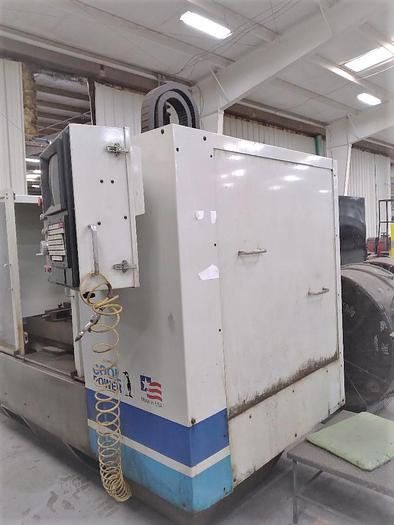

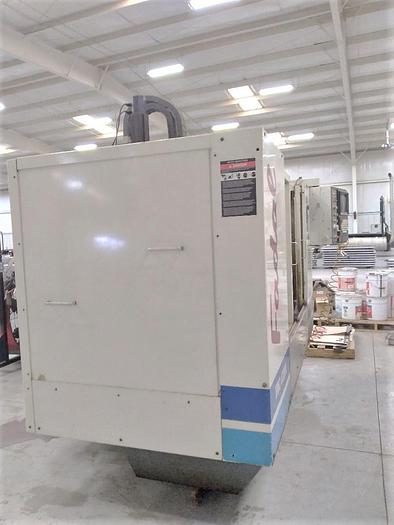

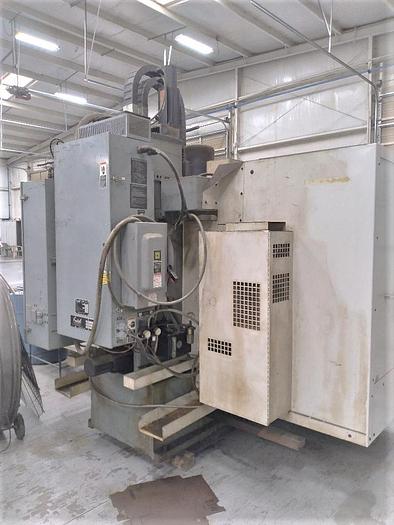

1999 Fadal VMC4020A
No longer available
1999 Fadal VMC4020A
$14,500 (USD)
Location:Tennessee
Description
21 Station Tool Changer
Linear Ways on X & Y Axis'
Boxed Ways on Z Axis
Cool Power Technology on Ballscrews, Spindle and Headstock Rigid Tapping
2 Speed Gearless System RS 232 Port Interface
Coolant System with Tank & Pump
5973 Run Time Hours
Specifications
| Manufacturer | Fadal |
| Model | VMC4020A |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118586 |

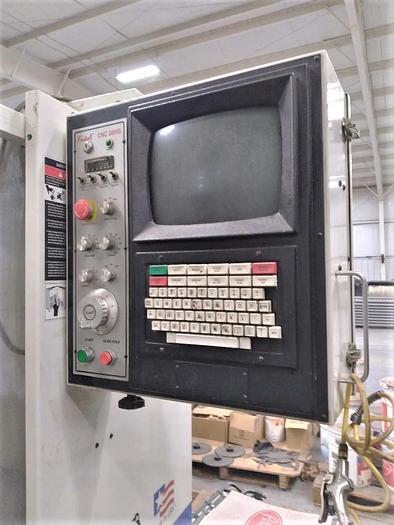

| Control | Fadal CNC88HS Control |
| Table Size | 48" x 20" |
| Maximum Table Load | 3,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 24" |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |

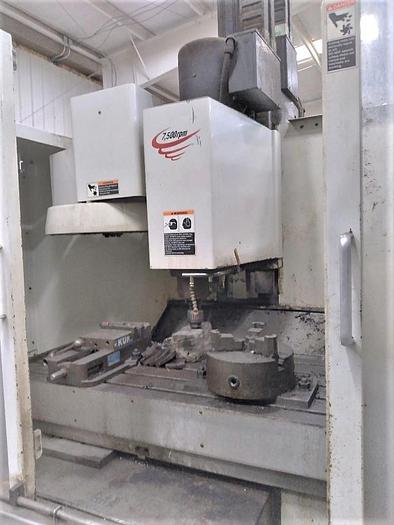

| Spindle Speeds | 7,500 RPM |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 900 IPM / 900 IPM / 700 |
| Cutting Feedrates | 600 IPM |
| Machine Dimensions LxWxH | 116" x 87" x 104" |
| Machine Weight | 11,550 lbs. |
