1998 Leadwell T5 Gang Style
1998 Leadwell T5 Gang Style
Contact us for price
Michigan
orCall (863) 439-6066
Description
Chip Conveyor
Coolant System
220V 3-Phase
All Available Manuals
Specifications
| Manufacturer | Leadwell |
| Model | T5 Gang Style |
| Year | 1998 |
| Condition | Used |
| Stock Number | 118572 |

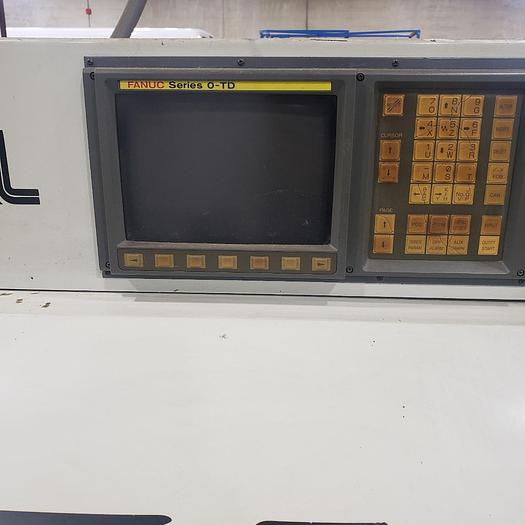

| Machine Control | Fanuc O-TD |
| Chuck Size | 6" |
| Maximum Swing | 12.99" |
| Maximum Turning Diameter | 5.35" |
| Maximum Turning Length | 5.9" |
| Maximum Swing Over Cross Slide | 5.35" |
| X-axis travel | 9" |
| Z-Axis Travel | 9" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 1.75" / 1.6" |
| Spindle Motor | 10 hp |
| Spindle Speed | 45-4,500 rpm |
| Number of Tool Positions | 6 Gang Style |
| Machine Dimensions LxWxH | 84"x48"x72" |
| Machine Weight | 6,175 lbs |
