2006 Star SR-20RII
Sold
2006 Star SR-20RII
Location:Illinois
Description
Parts Conveyor
Chip Conveyor

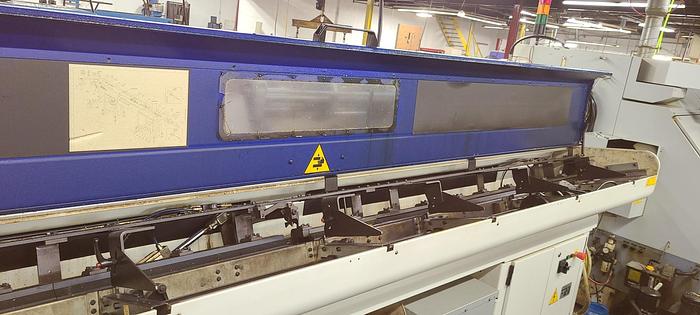

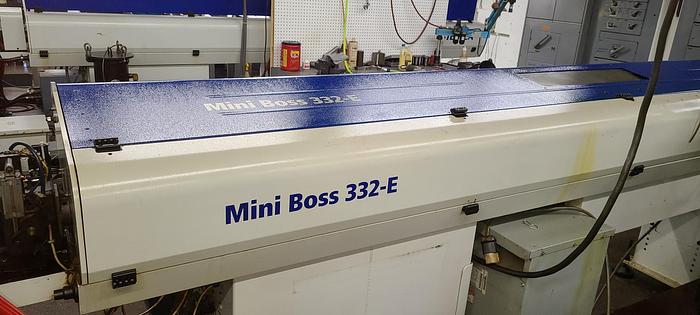

Iemca Mini Boss 332-E barfeed
Mist Collector
2-Spindle Counter Face Drilling
Coolant System

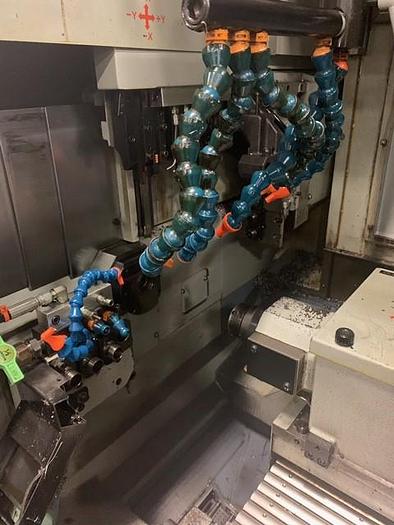

6 Tools
4 Spindle Sleeve Holders
4 Front / 4 Back
All Available Manuals
Specifications

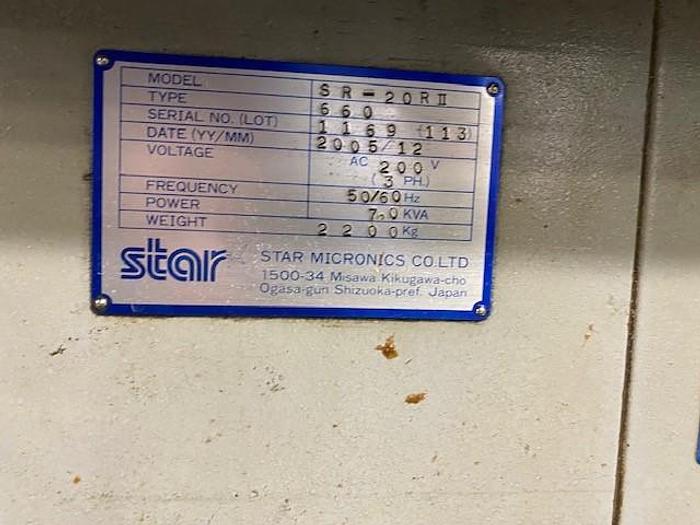

| Manufacturer | Star |
| Model | SR-20RII |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118570 |
| Machine Control | Fanuc 18i-TB |
| Maximum Turning Diameter | .78" |
| Maximum Headstock Stroke | 8" |
| C Axis Spindle Rotation | .01 Degrees |
| Maximum Drilling Capacity | .312 Stationary Tool |
| Maximum Tapping Capacity | M8x1.25 Stationary Tool |
| Spindle Bore | .937" |
| Spindle Speed | 10,000 rpm |
| Subspindle Speed | 3,500 RPM |
| Spindle Motor | 5 hp |
| Subspindle Motor | 1 hp |
| Number of OD Tools | 6 |
| Number of ID Tools | 4 Front & 8 Back Working |
| Machine Dimensions LxWxH | 84"x48"x72" |
| Machine Weight | 3,527 lbs |
