2014 Haas ST-10 Chucker
No longer available
2014 Haas ST-10 Chucker
Connecticut
Description

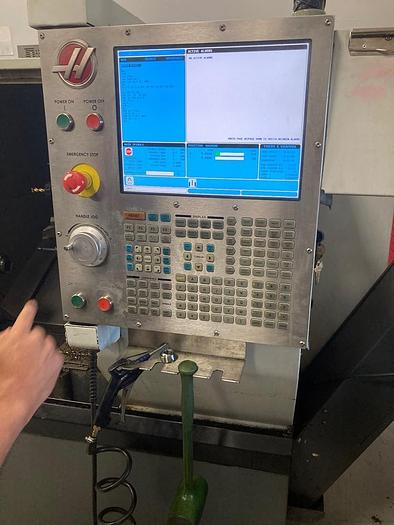

15" LCD Color Monitor
Tool Eye
Memory Lock Keyswitch
USB Port
Rigid Tapping
Chip Conveyor
208/230 Volts 40 amps
**No Tailstock**
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | ST-10 Chucker |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118569 |

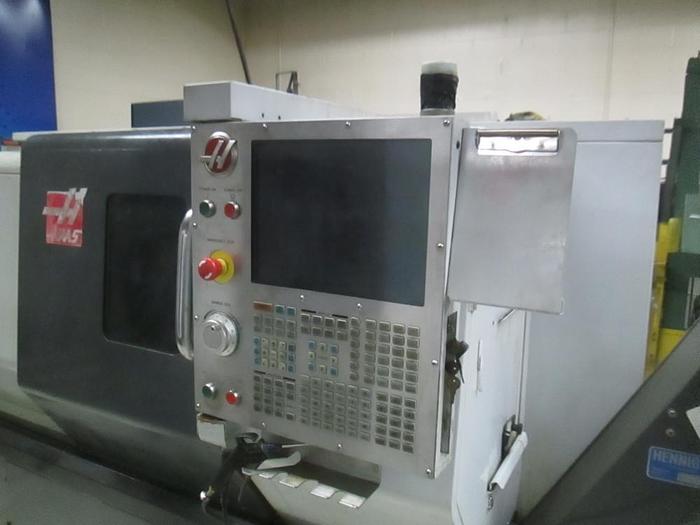

| Machine Control | Haas 32 BIT |

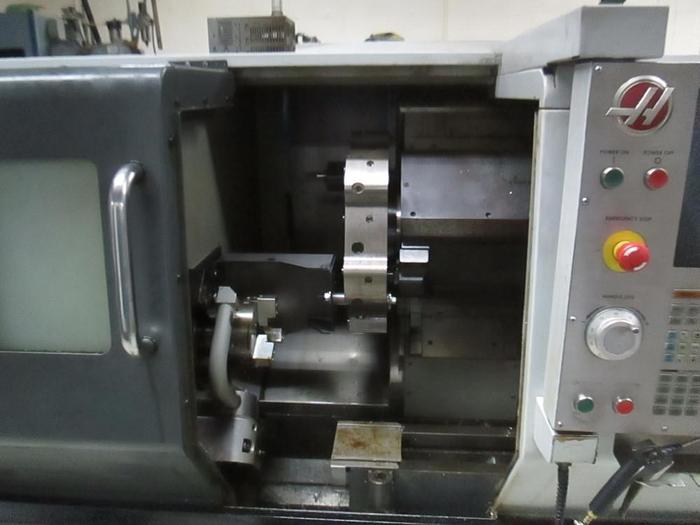

| Chuck Size | 6.5" /1.75" Thru hole |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5 / 2.31" / 1.75" |
| Spindle Motor | 15 hp |
| Spindle Speeds | 0-6,000 rpm |

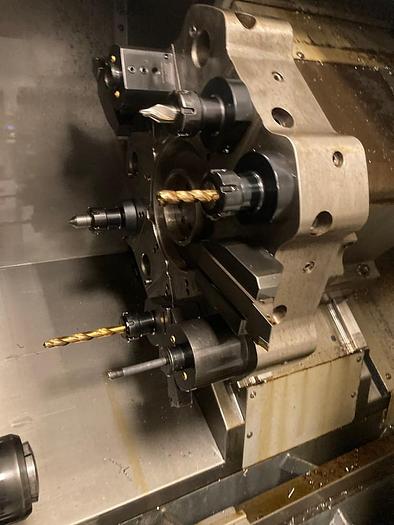

| Number of Turret Positions | 12 Bolt on Style |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 ipm |
| Machine Dimensions LxWxH | 92"x55"x69" |
| Machine Weight | 6,420 lbs |
